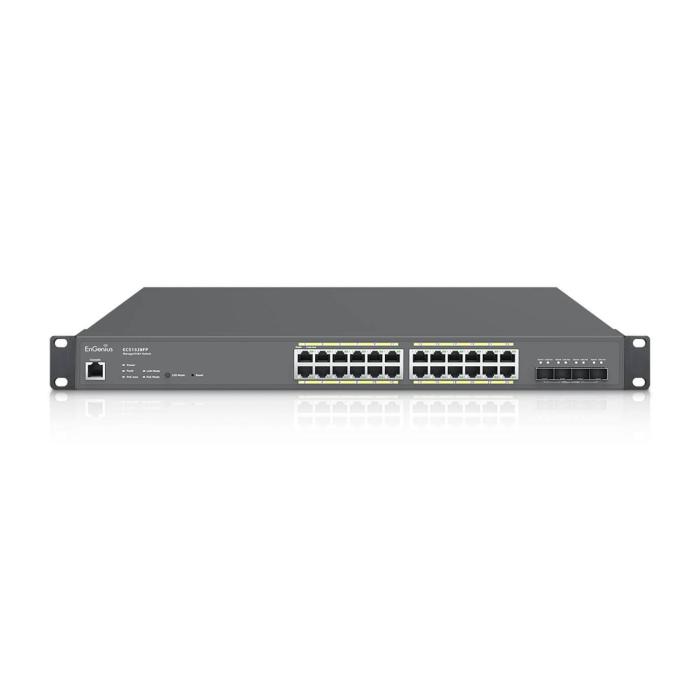

Name: EnGenius CloudSwitch L2Plus 24 Full PoE
Brand: ENGENIUS
Availability: OutOfStock

EnGenius CloudSwitch L2Plus 24 Full PoE

Not avaliable

EnGenius CloudSwitch L2Plus 24 Full PoE. More info

Amount

Brand: ENGENIUS

SKU: 104781 PRC: 509678 EAN: 4713361934995 PN: ECS1528FP

Description

24 x 10/100/1000 Mbps Ports + 4x SFP+ Ports, 128Gbps, 512MB SDRAM, 128MB Flash, 410w 1-24 PoE, 260 x 440 x 44 mm, 4.7 kg

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity: 128 Gbit/s
MAC address table: 16000 entries
Static route: Yes
Number of static routes: 63
Number of IP interfaces: 20
Jumbo frames support: Yes
Jumbo frames: 9000

Security

DHCP features: DHCP relay, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SSH, SSL/TLS
Authentication: Port-based authentication
Authentication type: IEEE 802.1x, RADIUS

Multicast features

Multicast support: Yes
Multicast features: Multicast forwarding
Number of multicast groups filtered: 256
Multicast Listener Discovery (MLD) snooping: v1

Protocols

Management protocols: SNMP v1/v2c/v3

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Wall mountable: Yes

Performance

Internal memory: 256 MB
Flash memory: 32 MB
Firmware upgradeable: Yes

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24
Total Power over Ethernet (PoE) budget: 410 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 440 mm
Depth: 260 mm
Height: 44 mm
Weight: 4.7 kg

Packaging content

Cables included: AC

Logistics data

Harmonized System (HS) code: 85176990
