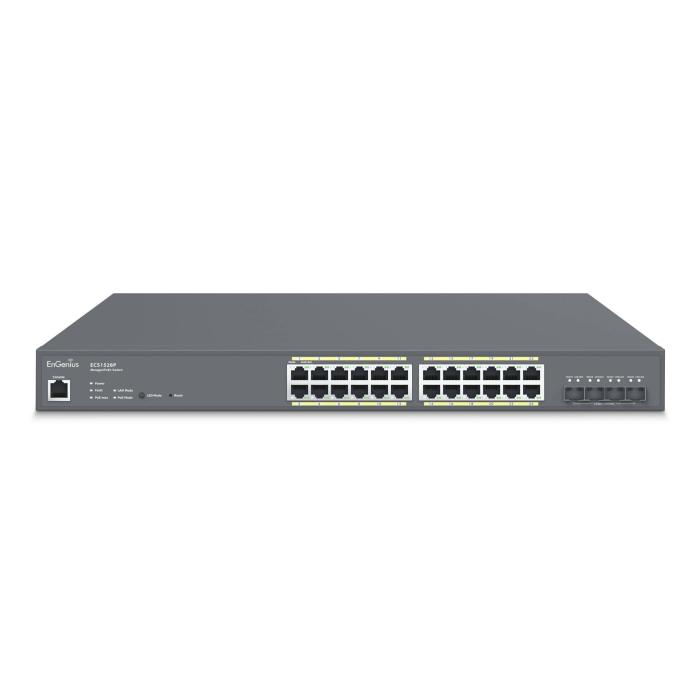

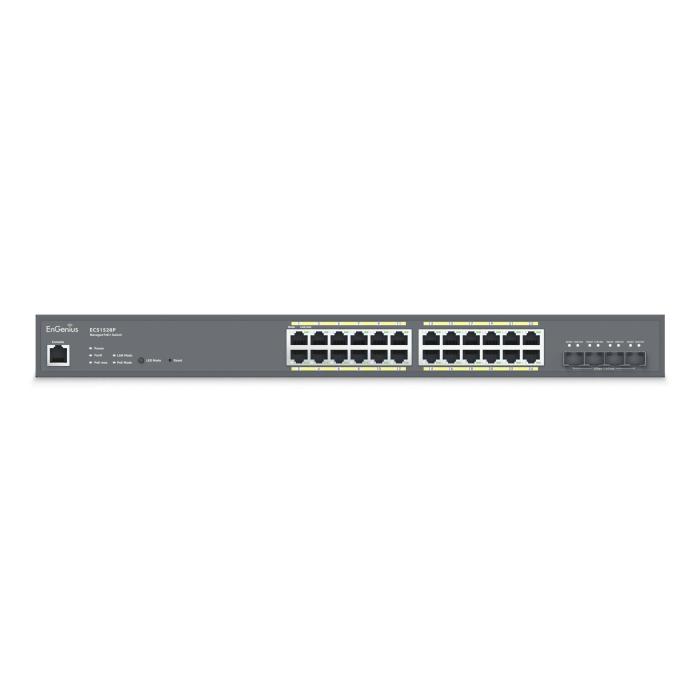

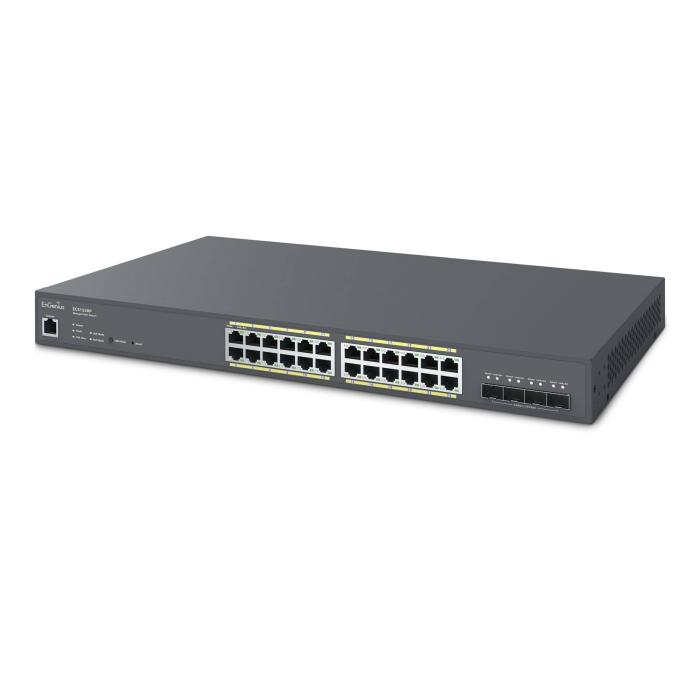

Name: EnGenius CloudSwitch L2Plus 24
Brand: ENGENIUS
Availability: OutOfStock

EnGenius CloudSwitch L2Plus 24

Not avaliable

EnGenius CloudSwitch L2Plus 24. More info

Amount

Brand: ENGENIUS

SKU: 104780 PRC: 509677 EAN: 4713361934568 PN: ECS1528P

Description

24 x 10/100/1000 Mbps Ports + 4 x SFP+ Ports, 128 Gbps, 512 MB RAM, 128 MB ROM, 330.2 x 228.6 x 43.94 mm. 1.9 kg

Specifications

Management features

Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
IPv4 routes: 63
IPv6 routes: 21
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity: 128 Gbit/s
MAC address table: 16000 entries
Static route: Yes
Number of static routes: 192
Jumbo frames support: Yes
Jumbo frames: 10000

Security

DHCP features: DHCP relay, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: SNMP, SNMPv2, SNMPv3
SSH/SSL support: Yes
Authentication type: RADIUS
Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes
Multicast MAC address table: 256 entries

Protocols

IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)

Design

Rack mounting: Yes
Product colour: Grey
LED indicators: Fault, LAN, PoE, Power

Performance

Memory type: SDRAM
Internal memory: 512 MB
Flash memory: 128 MB
Firmware upgradeable: Yes

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24
Total Power over Ethernet (PoE) budget: 240 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 440 mm
Depth: 260 mm
Height: 44 mm
Weight: 3.01 kg

Packaging content

Cables included: AC, LAN (RJ-45)
Manual: Yes
Rack mount kit: Yes

Packaging data

Package width: 532 mm
Package depth: 346 mm
Package height: 101 mm
Package weight: 3.81 kg

Certificates

Certification: CE, FCC, IC
