Description

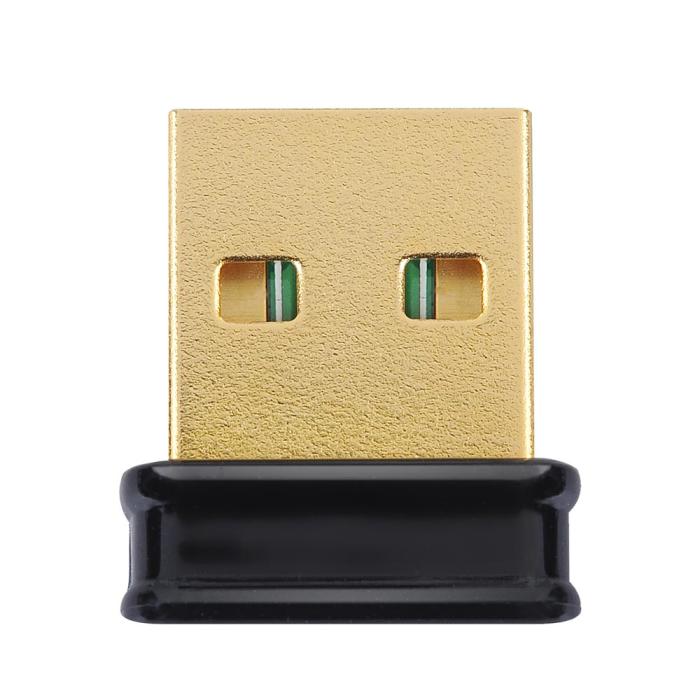

The Edimax EW-7811Un USB adapter offers you WLAN wireless connectivity with a maximum transfer speed of 150 Mbit/s, ideal for adding Wi-Fi to computers without this function. This black and gold device operates on the single 2.4 GHz band and complies with the Wi-Fi 4 (802.11n) standard, being compatible with the IEEE 802.11b, 802.11g and 802.11n protocols. It incorporates an integrated antenna and is powered directly via the USB port, with no need for an external power source. The adapter supports the 128-bit WEP, 64-bit WEP and WPA2 security algorithms, and includes activity and link LED indicators to monitor its status.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: USB
- Interface: WLAN
Network
- Maximum data transfer rate: 150 Mbit/s
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Ethernet LAN: No
- Wi-Fi: Yes
- Wi-Fi band: Single-band (2.4 GHz)
- Frequency range: 2.4 - 2.4835 GHz
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
- Security algorithms: 128-bit WEP, 64-bit WEP, WPA2
Design
- Product colour: Black, Gold
- Internal: No
- Antenna: Yes
- LED indicators: Activity, Link
- Certification: CE, FCC, WiFi
Power
- USB powered: Yes
System requirements
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 14.9 mm
- Depth: 7.1 mm
- Height: 18.5 mm

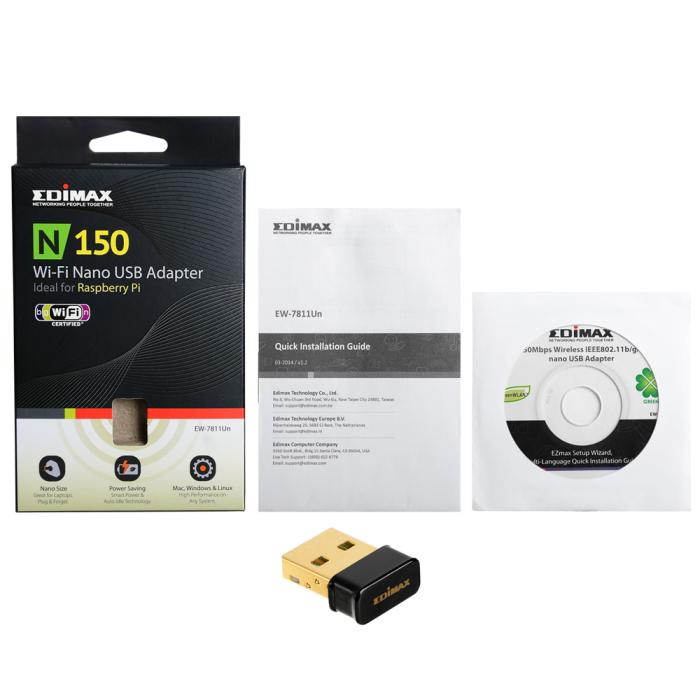

Packaging content
- Manual: Yes
Other features
- Quick start guide: Yes
