Description

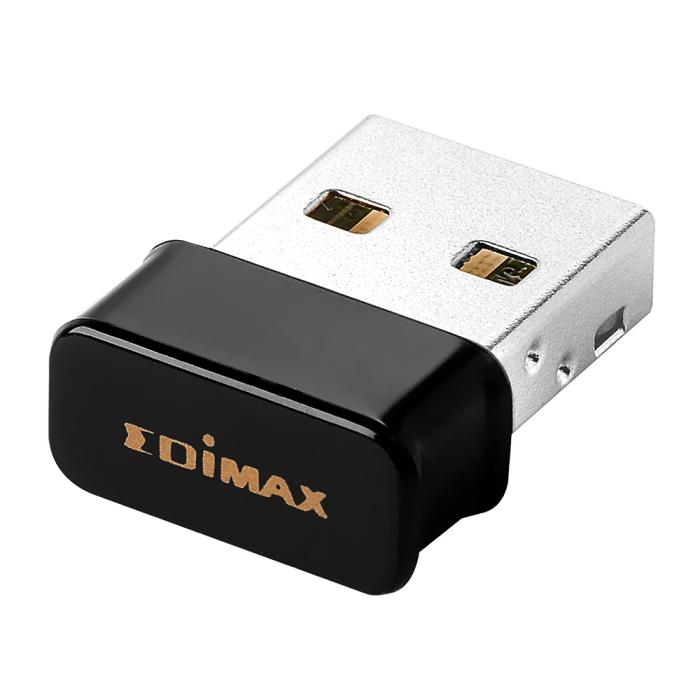

Edimax EW-7611ULB adapter in black combining WLAN and Bluetooth 4.0 connectivity via a USB 2.0 interface, with a maximum transfer speed of 150 Mbit/s. This wireless device operates on the single 2.4 GHz band under the Wi-Fi 4 (802.11n) standard and is compatible with 802.11b and 802.11g protocols, in addition to supporting WEP, WPA, WPA2, 802.1x RADIUS and WPS security algorithms. Its internal antenna and activity and link LED indicators facilitate installation, while quality of service (QoS) enables efficient network traffic management.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: USB
- Interface: WLAN / Bluetooth
- USB version: 2.0
Network
- Maximum data transfer rate: 150 Mbit/s
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Single-band (2.4 GHz)
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
- Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA2, WPS
- Quality of Service (QoS) support: Yes
- Bluetooth version: 4.0
Design
- Product colour: Black
- Internal: No
- Antenna: Yes
- Antenna design: Internal
- LED indicators: Activity, Link
- Receiver sensitivity: 11n(20MHz) MCS7: -64dBm±2dBm 11n(40MHz) MCS7: -64dBm±2dBm 11g 54Mbps: -65dBm±2dBm 11b 11Mbps: -79dBm±2dBm
- Certification: CE, FCC, WiFi, BQB
Power
- USB powered: Yes
System requirements
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 14.9 mm
- Depth: 18.5 mm
- Height: 7.1 mm
- Weight: 3 g
Packaging data
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Quick start guide: Yes
- Transmit power range: 12 - 16 dBmW
