Description

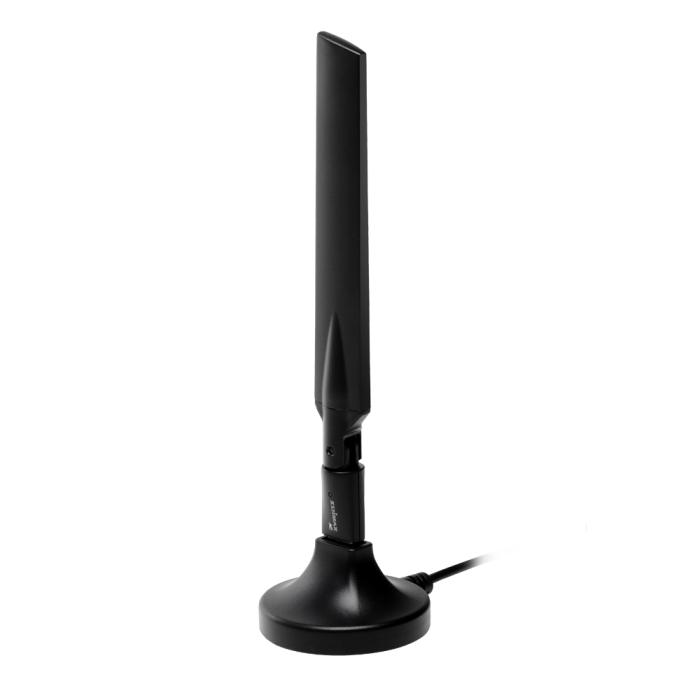

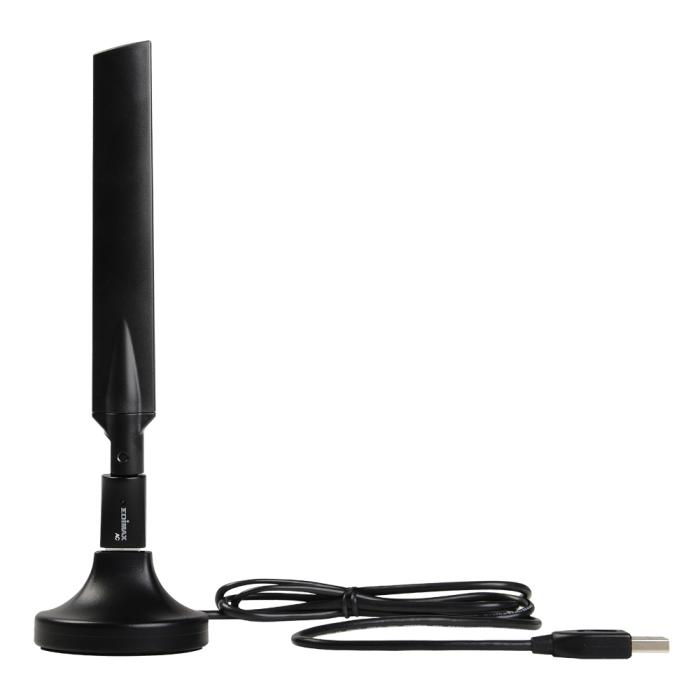

The Edimax EW-7811UAC adapter expands your device's connectivity via a USB port, providing it with a WLAN network card with a maximum speed of 433 Mbit/s. This device operates on the single 2.4 GHz band under the Wi-Fi 5 standard, with added support for protocols such as 802.11a, 802.11b, 802.11g and Wi-Fi 4, ensuring compatibility with common networks. Its black design incorporates an integrated antenna and activity and link LEDs to monitor status. Security is covered with WEP encryption of 64 and 128 bits, WPA, WPA2 and WPS. Powered directly via USB, it requires no external source and simplifies installation on any computer with that port.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: USB
- Interface: WLAN
Network
- Maximum data transfer rate: 433 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Ethernet LAN: No
- Wi-Fi: Yes
- Wi-Fi band: Single-band (2.4 GHz)
- Frequency range: 2.4 - 2.4835 GHz
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150, 433 Mbit/s
- Security algorithms: 128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA2, WPS
Design
- Product colour: Black
- Internal: No
- Antenna: Yes
- LED indicators: Activity, Link
- Certification: CE, FCC
Power
- USB powered: Yes
System requirements
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 20 mm
- Depth: 7 mm
- Height: 190 mm
- Weight: 18 g
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Cables included: USB
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Gain: 6 dBi
