Description

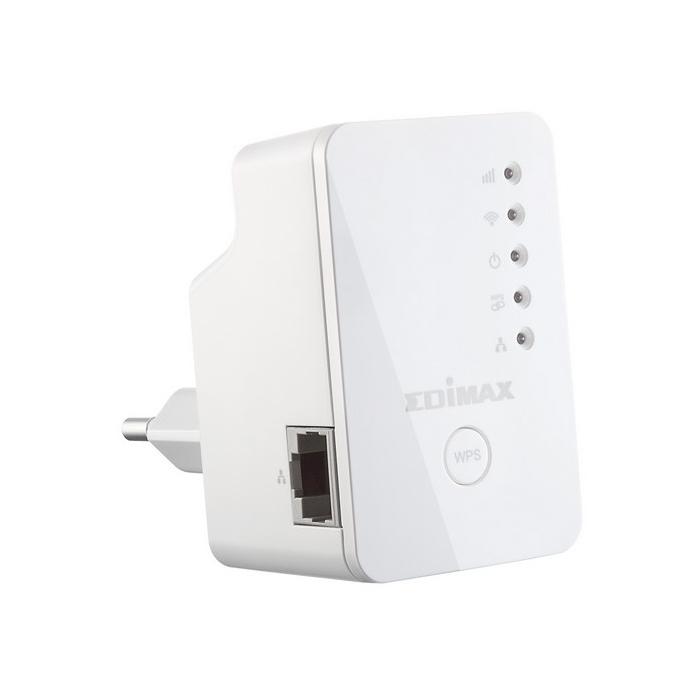

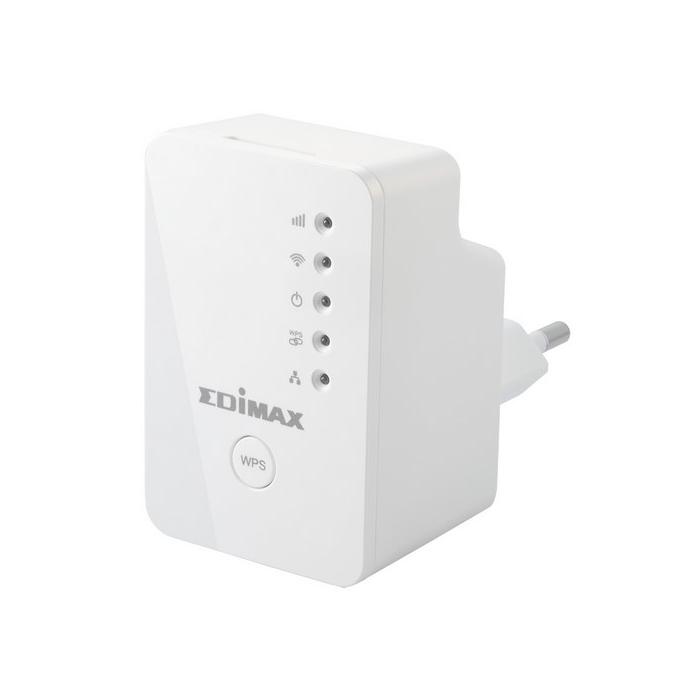

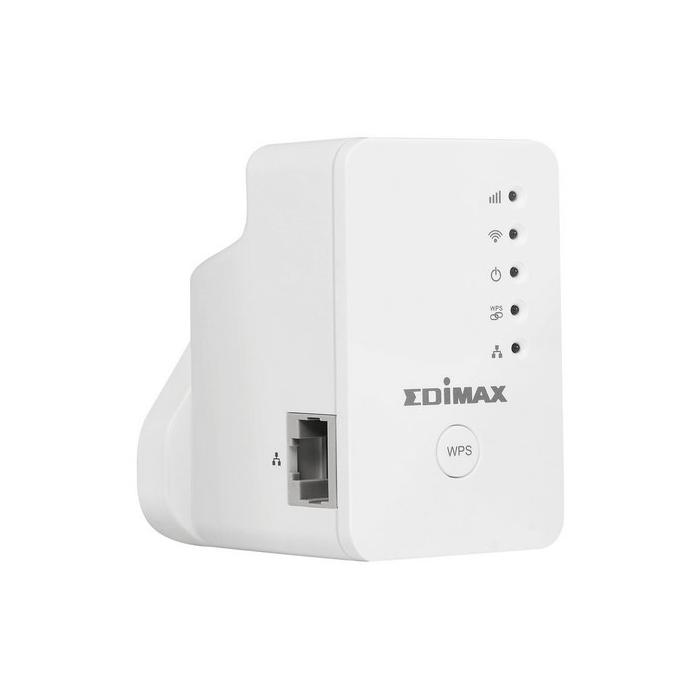

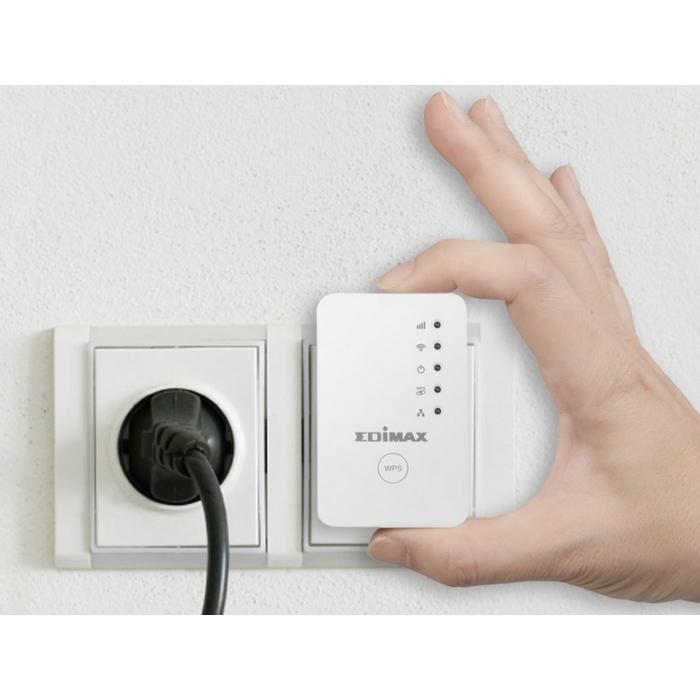

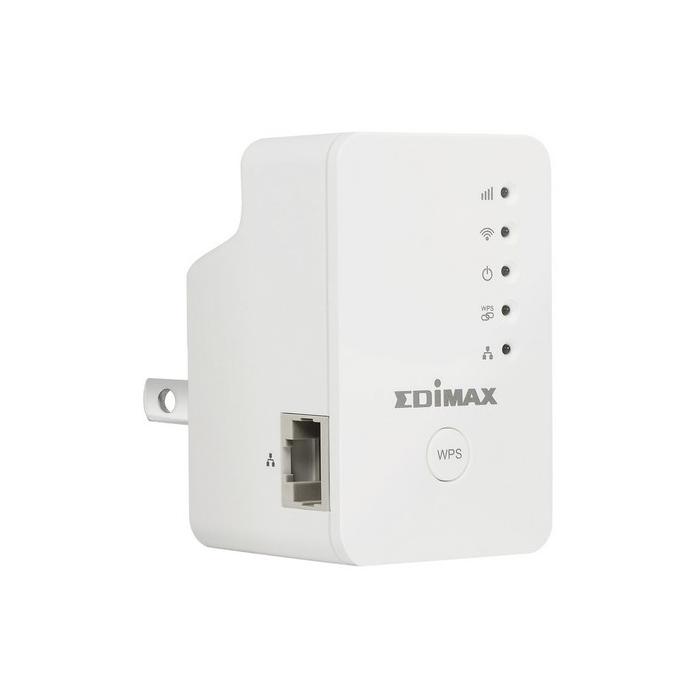

The Mini 300 Mbit/s white adapter from Edimax lets you connect wired devices to a Wi-Fi network on the 2.4 GHz band, reaching up to 300 Mbit/s according to IEEE 802.11b/g/n standards. It includes a 10/100 Mbit/s Ethernet LAN port and two integrated antennas for simple installation, with support for WEP 64 and 128-bit encryption, WPA-PSK and WPA2-PSK. Its internal design, with LED indicators and a weight of 72 grams, is powered by a power adapter from 100 to 240 V and 50/60 Hz, with dimensions of 38 mm in depth and 65 mm in height.
Specifications
Features
- 2.4 GHz: Yes
- Maximum data transfer rate: 300 Mbit/s
- Wi-Fi data rate (max): 300 Mbit/s
- Ethernet LAN data rates: 10, 100 Mbit/s
- Frequency band: 2.4 GHz
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Security
- Security algorithms: 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Design
- Product colour: White
- LED indicators: Yes
- Internal: No
Antenna
- Antenna features: Integrated antenna
- Antennas quantity: 2
Weight & dimensions
- Width: 42 mm
- Depth: 38 mm
- Height: 65 mm
- Weight: 72 g
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
Logistics data
- Harmonized System (HS) code: 85176990
