Description

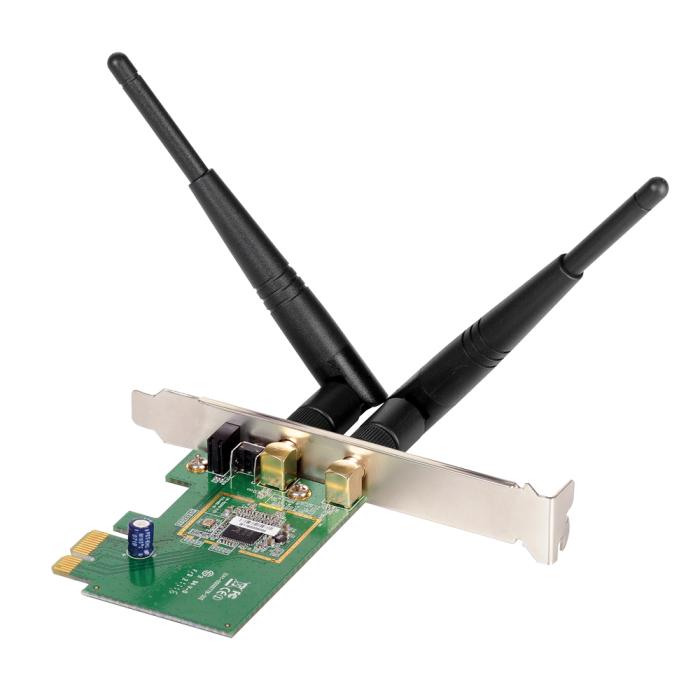

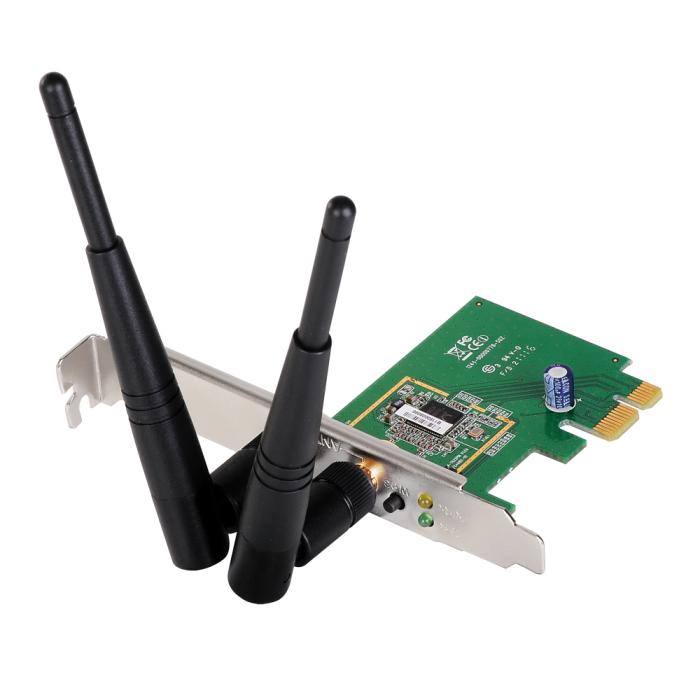

The Edimax EW-7612PIn V2 internal network card connects to your computer via a PCI Express host interface and offers WLAN wireless connectivity with a single 2.4 GHz band and a maximum transfer rate of 300 Mbit/s. It supports IEEE 802.11b, 802.11g and Wi-Fi 4 (802.11n) standards, as well as security algorithms such as 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA and WPS, along with a link LED indicator. It includes an antenna with an RP-SMA connector, is available in black, green and silver, and carries CE and FCC certification for use in home or professional environments.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: PCI Express
- Interface: WLAN
Network
- Maximum data transfer rate: 300 Mbit/s
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Single-band (2.4 GHz)
- Frequency range: 2.4 - 2.4835 GHz
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150, 300 Mbit/s
- Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPS
Design
- Product colour: Black, Green, Silver
- Internal: Yes
- Antenna: Yes
- Antenna connector type: RP-SMA
- LED indicators: Link
- Certification: CE, FCC
System requirements
- Windows operating systems supported: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 65 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 88 mm
- Depth: 121 mm
- Height: 22 mm
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Gain: 3 dBi
- Detachable antenna(s): Yes
