Description

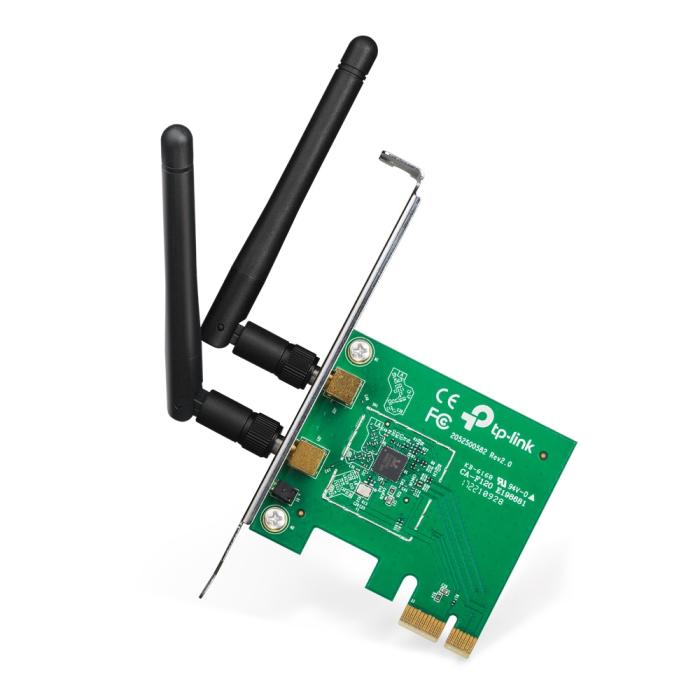

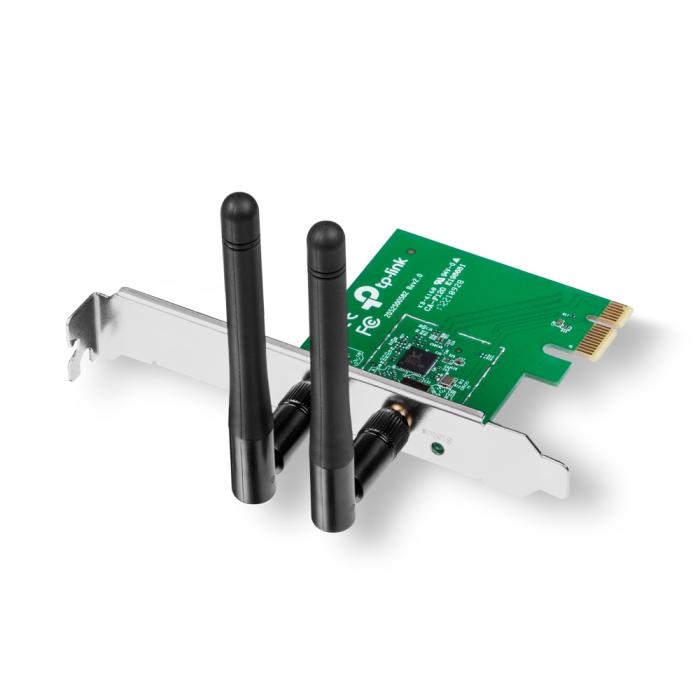

TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket, Internal, Wireless, PCI Express, WLAN, 300 Mbit/s, Green
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: PCI Express
- Interface: WLAN
Network
- Maximum data transfer rate: 300 Mbit/s
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Single-band (2.4 GHz)
- Frequency range: 2.4 - 2.4835 GHz
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 11, 54, 150, 300 Mbit/s
- Modulation: 16-QAM, 64-QAM, DBPSK, DQPSK, OFDM
- Security algorithms: 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Design
- Certification: CE, FCC
- Component for: PC
- Product colour: Green
- Internal: Yes
- Antenna: Yes
- Antenna design: External
- Antenna connector type: RP-SMA
- LED indicators: Yes
- Receiver sensitivity: 270M: -68dBm@10% 130M: -68dBm@10% 108M: -73dBm@10% 54M: -73dBm@10% 11M: -89dBm@8% 6M: -87dBm@10% 1M: -90dBm@8%
System requirements
- Compatible operating systems: Windows 7 (32/64-bits) Windows Vista (32/64-bits) Windows XP (32/64-bits)
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 120.8 mm
- Depth: 78.5 mm
- Height: 21.5 mm
Packaging data
- Package width: 200 mm
- Package depth: 150 mm
- Package height: 39 mm
- Package weight: 170 g
Packaging content
- Manual: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Operating temperature (T-T): 32 - 104 °F
- Gain: 2 dBi
- Compliance industry standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Minimum system requirements: PCI-E x1
- Antennas quantity: 2
- Quick start guide: Yes
- Link/Act LED: Yes
