Description

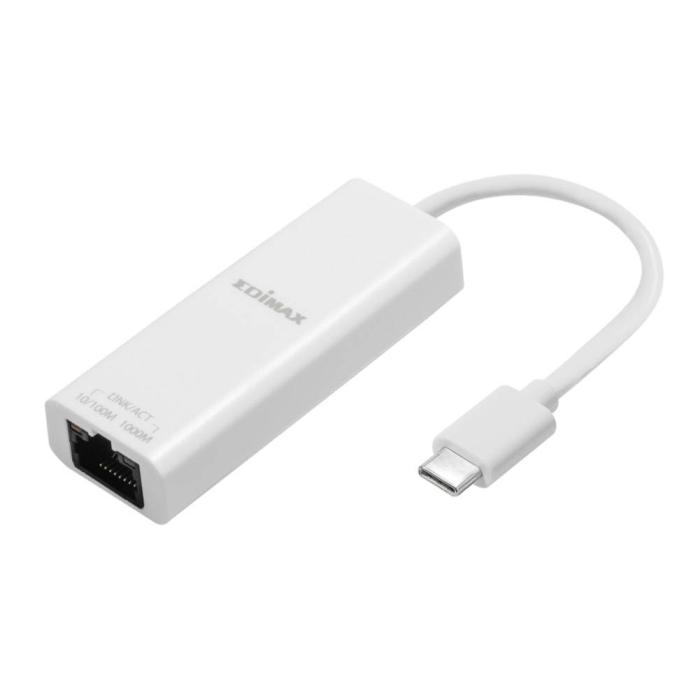

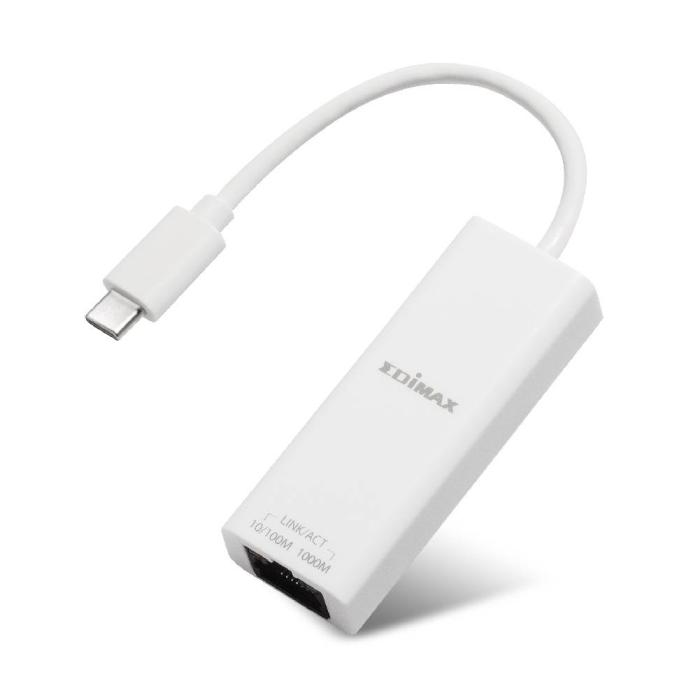

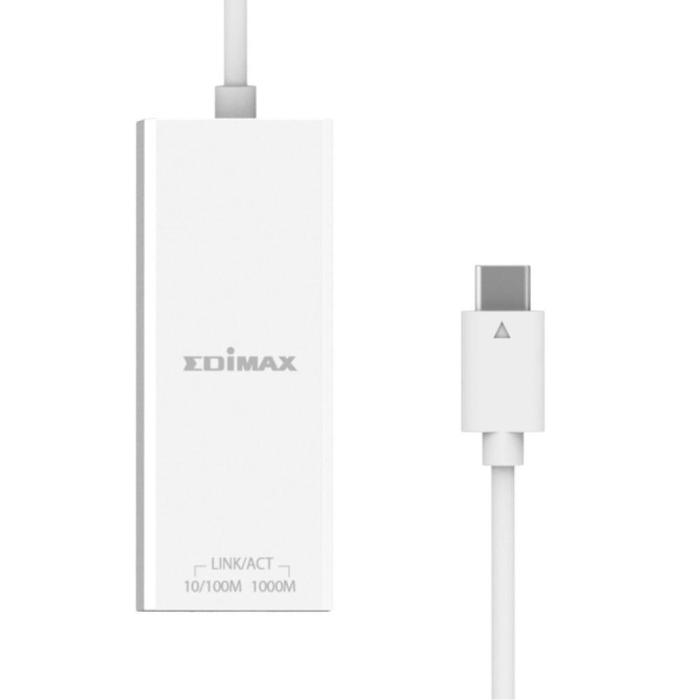

Connect your laptop or device without an RJ-45 port to a wired network with this EDIMAX adapter featuring a USB Type-C interface and right-angle connector format. This Gigabit Ethernet adapter achieves a maximum transfer rate of 1000 Mbit/s, supporting speeds of 10, 100 and 1000 Mbit/s over 10/100/1000BaseT(X) cabling, is compatible with jumbo frames up to 16000 bytes and operates in full duplex mode. It incorporates a single Ethernet LAN (RJ-45) port, uses wired connectivity technology with USB 3.2 Gen 1 (3.1 Gen 1) version, and complies with network standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p and IEEE 802.1x.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB Type-C
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- USB connector form factor: Straight
- USB version: 3.2 Gen 1 (3.1 Gen 1)
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Cabling technology: 10/100/1000BaseT(X)
- Full duplex: Yes
- Jumbo frames support: Yes
- Jumbo frames: 16000
Design
- Component for: Laptop
- Product colour: White
- Internal: No
- Plug and Play: Yes
- Certification: FCC
Power
- Output voltage: 5 V
System requirements
- Windows operating systems supported: Windows 10, Windows 11, Windows 8
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 25.5 mm
- Depth: 14 mm
- Height: 67 mm
- Weight: 21 g
Technical details
- Compliance certificates: CE
