Description
The Eaton Ellipse PRO 650 IEC is a line-interactive UPS that provides 0.65 kVA and 400 W of power, with four C13 type AC outlets for safely connecting your equipment. This model features an input voltage range of 150 to 285 V and a frequency of 50/60 Hz, while its output remains stable between 220 and 240 V at 50 Hz. It includes surge protection for network, fax, modem, and telephone, as well as an RJ-45 Ethernet port, a USB 2.0, and a C14 input connector. Additionally, it has an emergency power-off function for efficient management in critical situations.
Specifications
Features
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50 Hz
- Emergency Power Off (EPO): Yes
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
- UPS topology: Line-Interactive
- Output power capacity: 0.65 kVA
- Output power: 400 W
- Input operation voltage (min): 150 V
- Input operation voltage (max): 285 V
Ports & interfaces

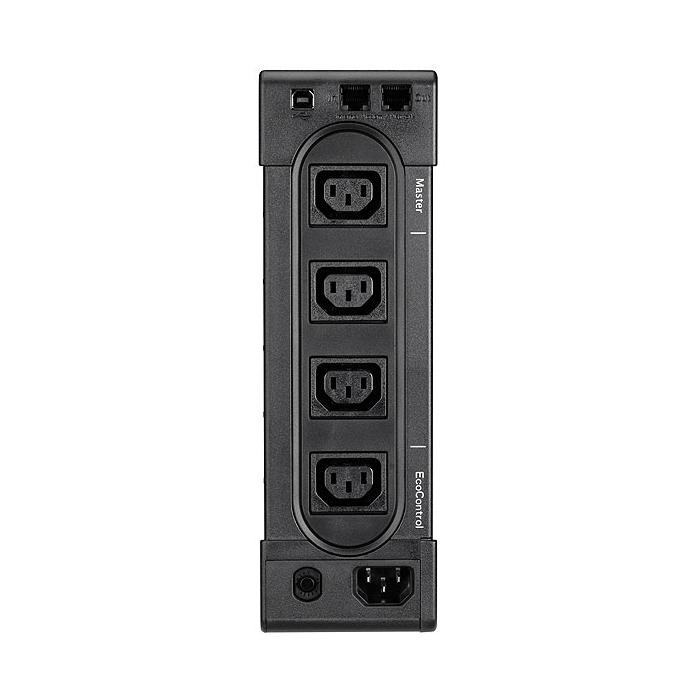

- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9 min
- Hot-swap battery: No
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Rack capacity: 2U
- Product colour: Black

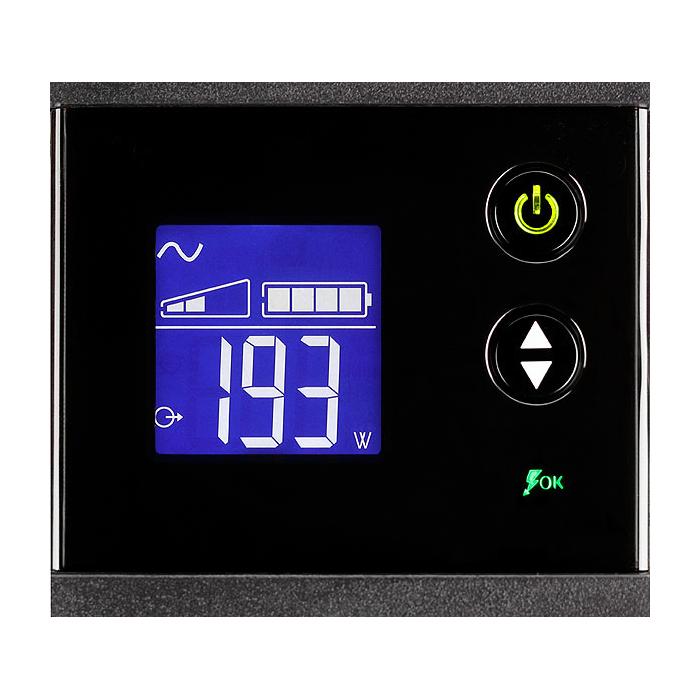

- Display type: LCD
- LED indicators: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
- Width: 82 mm
- Depth: 285 mm
- Height: 260 mm
- Weight: 6.6 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal input voltage: 230 V
