Description

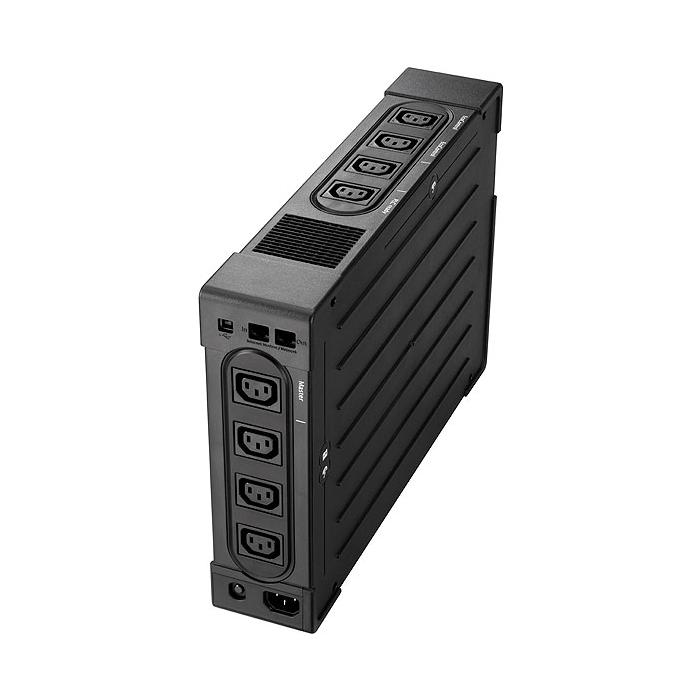

The Eaton Ellipse PRO 1600 IEC is a line-interactive UPS delivering 1.6 kVA and 1000 W of power to protect your computer equipment. With its eight C13 AC outlets, you can connect multiple devices, while the C14 input coupler facilitates direct connection. It includes surge protection and line protection for network, telephone, and fax, preventing damage to your connections. Its input voltage range goes from 150 V to 285 V, adapting to variations in the mains supply, and offers a stable output between 220 V and 240 V at 50 Hz. The emergency power-off function and USB 2.0 port allow secure and controlled system management.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 1.6 kVA
- Output power: 1000 W
- Input operation voltage (min): 150 V
- Input operation voltage (max): 285 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50 Hz
- Emergency Power Off (EPO): Yes
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9 min
- Hot-swap battery: No
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Rack capacity: 2U
- Product colour: Black

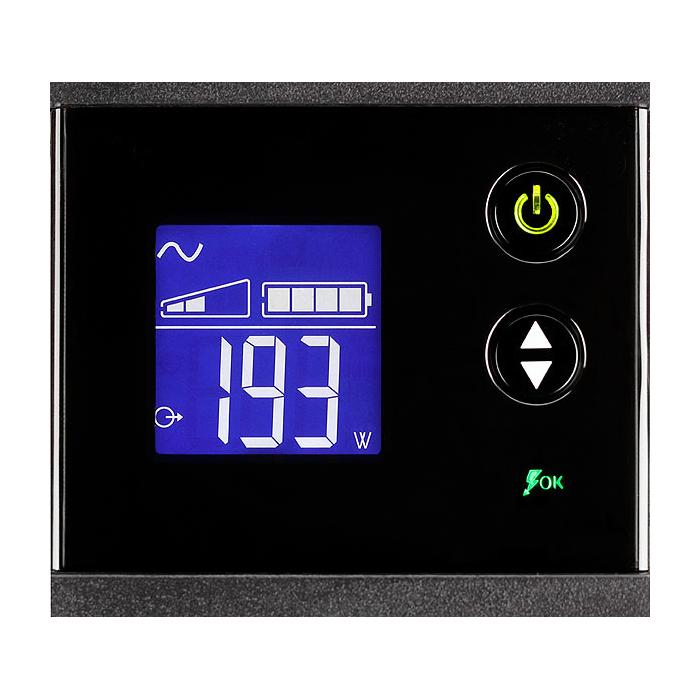

- Display type: LCD
- LED indicators: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
- Width: 82 mm
- Depth: 390 mm
- Height: 275 mm
- Weight: 11.3 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal input voltage: 230 V
