Description

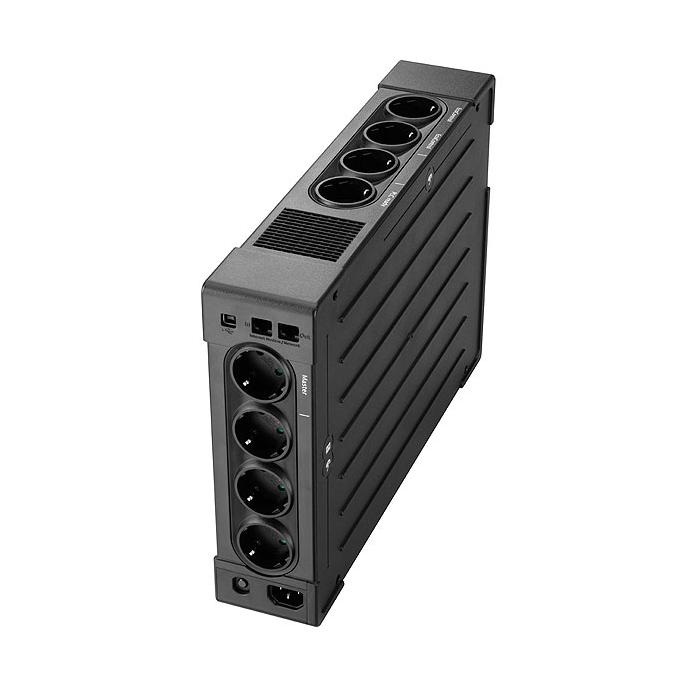

Connect your critical equipment to the Eaton Ellipse PRO 1600 DIN, a line-interactive UPS with 1.6 kVA and 1000 W of power that maintains output voltage between 220 and 240 V against grid fluctuations. Its eight type F AC outlets and C14 coupler ensure stable power supply to multiple devices, while overload protection safeguards both the load and the system itself. It also integrates a USB 2.0 port for managing safe shutdown and protection functions for telephone line, fax, modem, and Ethernet network, with input accepted from 150 V to 285 V and a frequency of 50/60 Hz. It also includes emergency shutdown for greater control.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 1.6 kVA
- Output power: 1000 W
- Input operation voltage (min): 150 V
- Input operation voltage (max): 285 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50 Hz
- Emergency Power Off (EPO): Yes
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
Ports & interfaces
- AC outlet types: Type F
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9 min
- Hot-swap battery: No
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
- Width: 82 mm
- Depth: 390 mm
- Height: 275 mm
- Weight: 11.3 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal input voltage: 230 V
