Description
The Eaton Ellipse PRO 850 DIN is a line-interactive UPS with an output power of 510 W and 0.85 kVA, designed to protect your equipment against surges and power outages. It features four type F AC outlets, a USB 2.0 port and a C14 coupler for power input, plus protection for telephone line, fax, modem and Ethernet network. Its input voltage range spans from 150 V to 285 V, with regulated output between 220 V and 240 V, and operates at an output frequency of 50 Hz, including an emergency power-off function for greater control.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 0.85 kVA
- Output power: 510 W
- Input operation voltage (min): 150 V
- Input operation voltage (max): 285 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50 Hz
- Emergency Power Off (EPO): Yes
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
Ports & interfaces

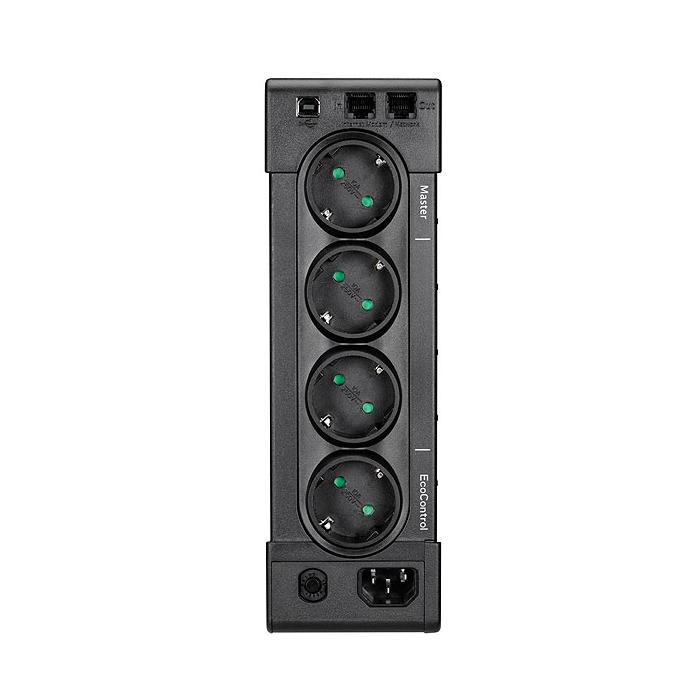

- AC outlet types: Type F
- Power plug: C14 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9 min
- Hot-swap battery: No
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Rack capacity: 2U
- Product colour: Black

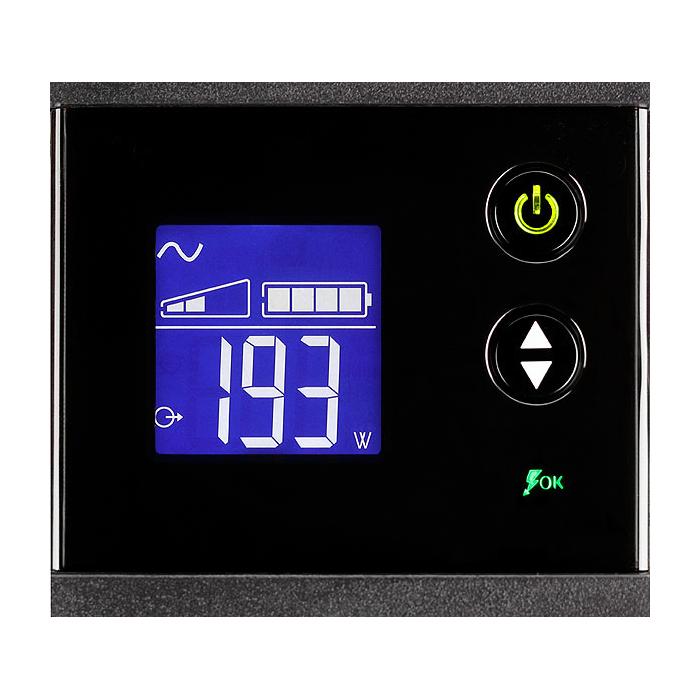

- Display type: LCD
- LED indicators: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
- Width: 82 mm
- Depth: 285 mm
- Height: 260 mm
- Weight: 7.3 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal input voltage: 230 V
