Description
The Eaton Ellipse PRO 650 UPS, in black, protects your equipment against power cuts and fluctuations. It offers a capacity of 650 VA and 400 W of output power, with an output operating voltage of between 220 and 240 V. It supports inputs from 165 to 285 V and a frequency of 50/60, so it adapts to unstable electrical installations. It has 4 type F AC outlets and a C14 connector, as well as a USB 2.0 port, an RJ-11 modem port and an RJ-45 Ethernet connection. Its Sealed Lead Acid (VRLA) technology battery allows a typical backup time of 9 minutes at half load, with cold start and automatic test. It includes emergency shutdown and can be mounted as a tower or in a rack. With a weight of 6.6 kg and dimensions of 82 x 260 x 285 mm (width x height x depth), it integrates easily into your installation.
Specifications
Power
- Output power capacity: 650 VA
- Output power: 400 W
- Input operation voltage (min): 165 V
- Input operation voltage (max): 285 V
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Power supply input frequency: 50/60
- Emergency Power Off (EPO): Yes
Ports & interfaces
- AC outlet types: Type F
- Power plug: C14 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9 min
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Colour of product: Black

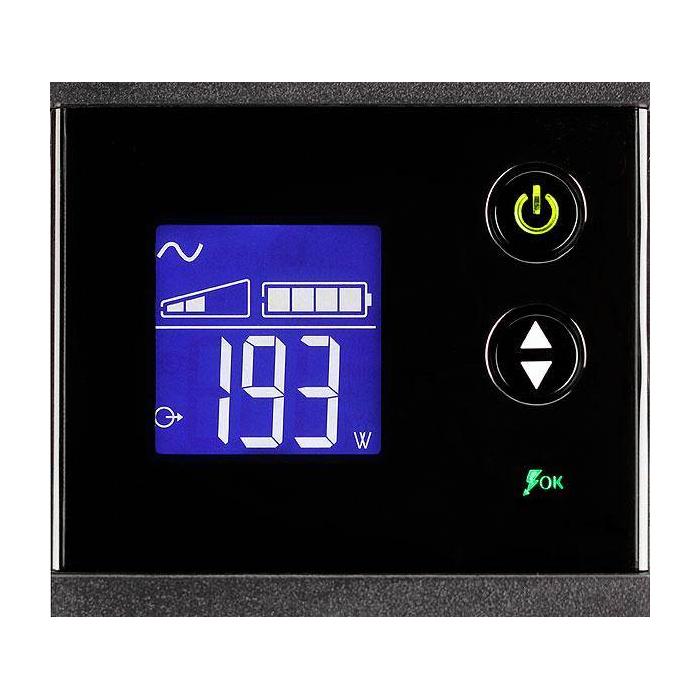

- Display: LCD
Performance
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
- LED indicators: Yes
Certificates
- Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
- Width: 82 mm
- Depth: 285 mm
- Height: 260 mm
- Weight: 6.6 kg
