Description

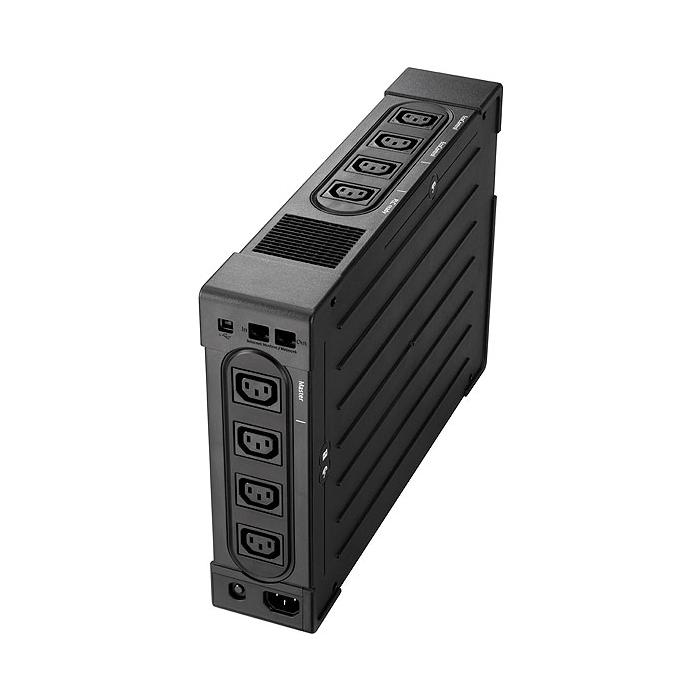

The Eaton Ellipse PRO 1200 IEC UPS delivers an output power of 750 W and 1.2 kVA with line-interactive topology, ideal for protecting equipment connected to a 50/60 Hz mains supply. It features 8 AC outlets via C13 couplers, which receive stabilised power in a range of 220 to 240 V, and accepts input voltages between 150 and 285 V to withstand fluctuations. It includes overload protection and safeguards network, telephone, modem and fax lines, along with an RJ-45 Ethernet port and a USB 2.0 for management. Its emergency power-off button allows immediate power cut-off when necessary. Connect this unit via its C14 coupler to the main socket and ensure operational continuity for your critical devices.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 1.2 kVA
- Output power: 750 W
- Input operation voltage (min): 150 V
- Input operation voltage (max): 285 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50 Hz
- Emergency Power Off (EPO): Yes
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Hot-swap battery: No
- Automatic battery test: Yes
- Cold start: Yes
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9 min
Design
- Form factor: Tower
- Rack capacity: 2U
- Product colour: Black

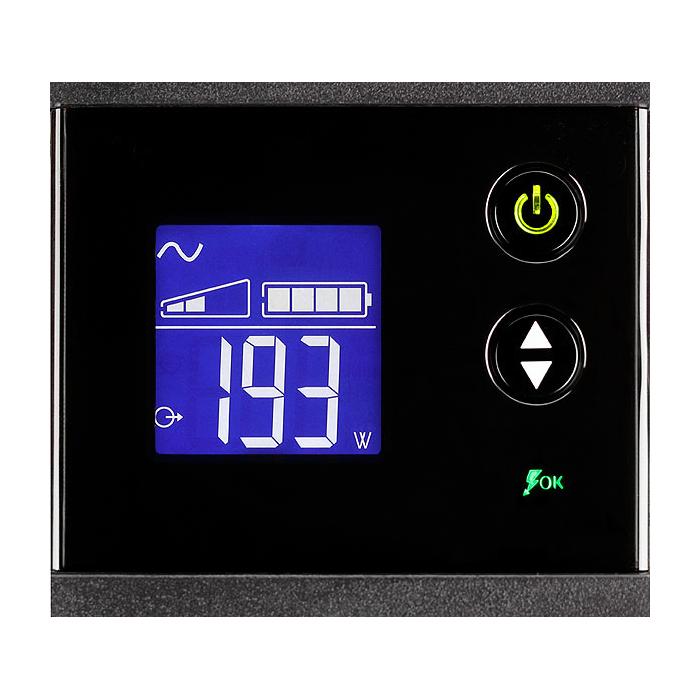

- Display type: LCD
- LED indicators: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Weight & dimensions
- Width: 82 mm
- Depth: 390 mm
- Height: 275 mm
- Weight: 9.9 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal input voltage: 230 V
