Description

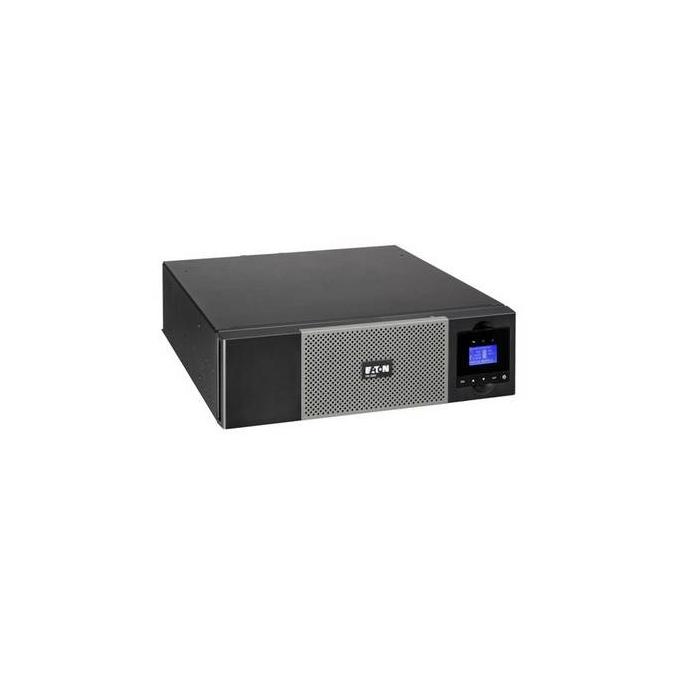

The Eaton 5PX Gen2 is a line-interactive UPS with 1 kVA capacity and 1000 W output power, equipped with eight C13 AC outlets and a C14 input coupler. This model delivers pure sine wave to protect sensitive equipment, with an input voltage range of 160 V to 294 V and frequency of 47/70 Hz. It includes a USB port, RS-232 interface and 10/100/1000Base-T(X) network connection for remote management, plus hot-swap battery for easy replacement without interrupting service. Its noise level is 40 dB and it features over-discharge protection, ideal for maintaining continuity in office environments or small infrastructures.
Specifications
Features
- Input operation voltage (min): 160 V
- Input operation voltage (max): 294 V
- Input frequency: 47/70 Hz
- Noise level: 40 dB
- Power protection features: Overdischarge
- UPS topology: Line-Interactive
- Output power capacity: 1 kVA
- Output power: 1000 W
- Waveform: Pure sine
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
- Cabling technology: 10/100/1000Base-T(X)
Battery
- Typical backup time at half load: 17 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Compliance certificates: CE
- Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL1778, CSA22.2
Sustainability
- Sustainability compliance: Yes
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 438 mm
- Depth: 448 mm
- Height: 85.5 mm
- Weight: 19.6 kg
Packaging data
- Management card included: Yes
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
