Description

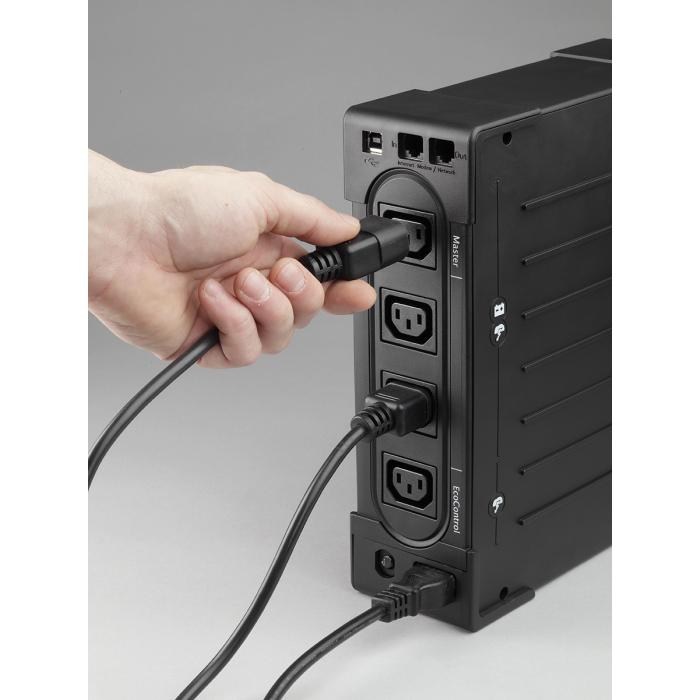

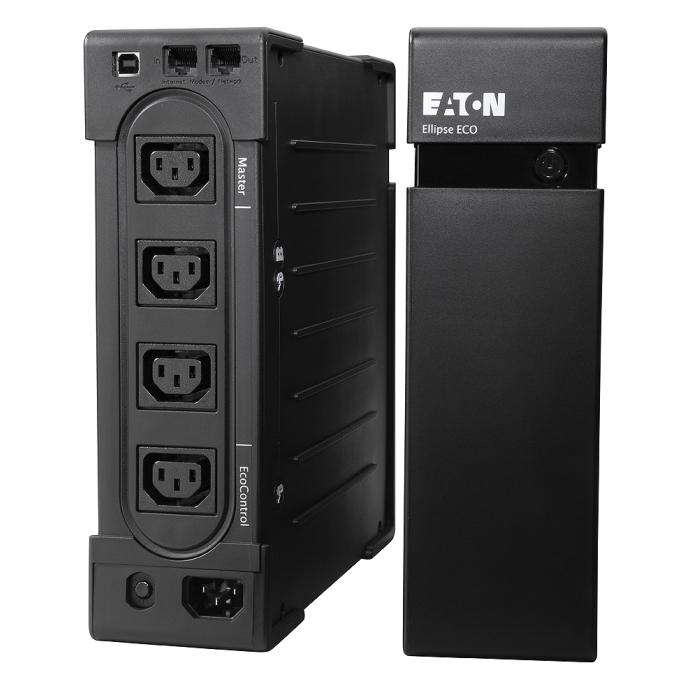

Protect the equipment connected in your home or office with the Eaton Ellipse ECO 800 USB IEC UPS, an uninterruptible power supply system with standby offline topology offering an output power of 500 W and 0.8 kVA. This model features four C13 AC outputs, powered via a C14 input connector, and provides an operating output voltage ranging between 220 V and 240 V, with an input range of 161 V to 284 V and a frequency of 50/60 Hz. To protect your communication lines, it includes an RJ-45 Ethernet port and an RJ-11 modem port, as well as surge protection for fax, network, telephone and modem. It also features a USB 2.0 port.
Specifications
Features
- UPS topology: Standby (Offline)
- Output power capacity: 0.8 kVA
- Output power: 500 W
- Input operation voltage (min): 161 V
- Input operation voltage (max): 284 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Emergency Power Off (EPO): No
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 11 min
- Hot-swap battery: No
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Rack capacity: 2U
- Product colour: Black

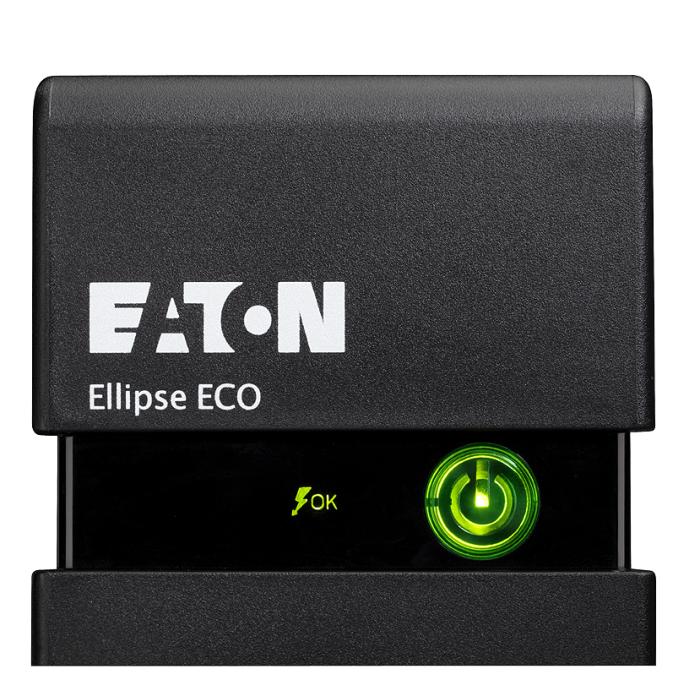

- LED indicators: Battery replacement
Safety regulation & standards
- Safety: IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Weight & dimensions
- Width: 81 mm
- Depth: 235 mm
- Height: 263 mm
- Weight: 4.1 kg
Packaging data
- Bundled software: Eaton Intelligent Power
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Input connection type: IEC
- Mac compatibility: Yes
- Nominal output voltage: 220-240 V
- Nominal input voltage: 220 V
- Compatible operating systems: Windows 7/Vista/XP\r\nMac OS X\r\nLinux
- Overload protection: Yes
