Description

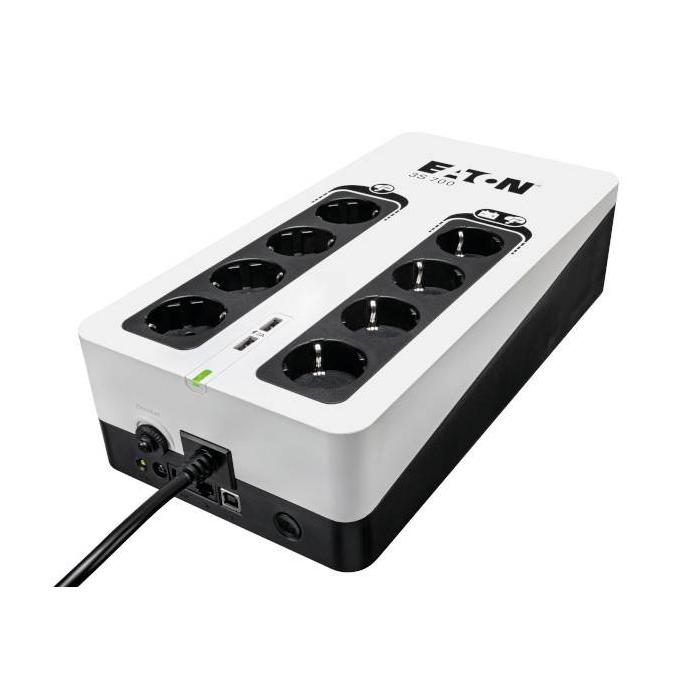

The Eaton 3S700D is a UPS with standby or offline topology offering 0.7 kVA and 420 W of output power. It features 8 AC outlets and a maximum current of 10 A, along with overload protection and over-discharge protection functions. Its input voltage operates between 161 V and 284 V, with an input frequency of 50/60 Hz, while the output remains at 220-240 V at 50 Hz. It incorporates 2 USB 2.0 ports for management, supports cold start and performs automatic battery tests, although it does not have a hot-swap battery.
Specifications
Features
- Power protection features: Overdischarge
- UPS topology: Standby (Offline)
- Output power capacity: 0.7 kVA
- Output power: 420 W
- Input operation voltage (min): 161 V
- Input operation voltage (max): 284 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50 Hz
- Maximum current: 10 A
- Surge protection: Yes
Ports & interfaces
- AC outlets quantity: 8 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 2
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Hot-swap battery: No
- Automatic battery test: Yes
- Cold start: Yes
Design
- Cable length: 1.5 m
- Product colour: Black, White
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating altitude: 0 - 3000 m
Certificates
- Certification: CE/EAC/Ukr/Cm/CB report
Safety regulation & standards
- Safety: IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
Weight & dimensions
- Width: 335 mm
- Depth: 170 mm
- Height: 86 mm
- Weight: 4 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal input voltage: 230 V
