Description

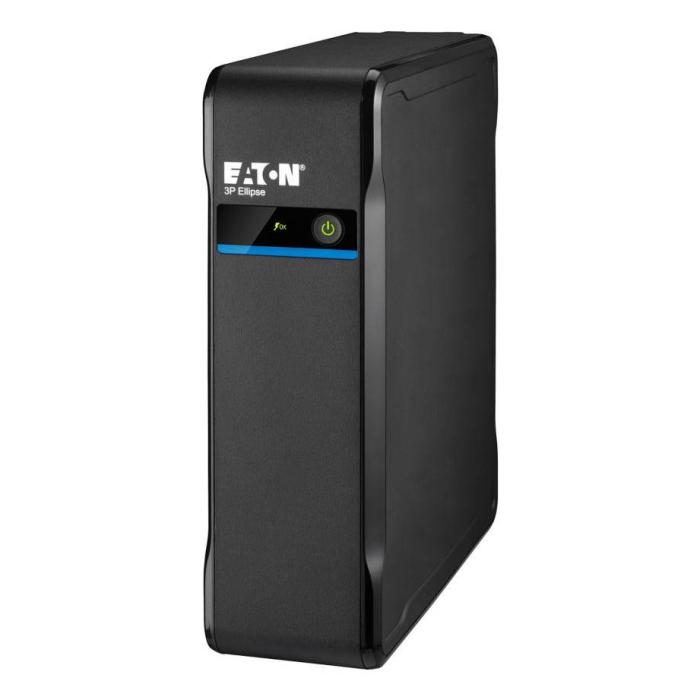

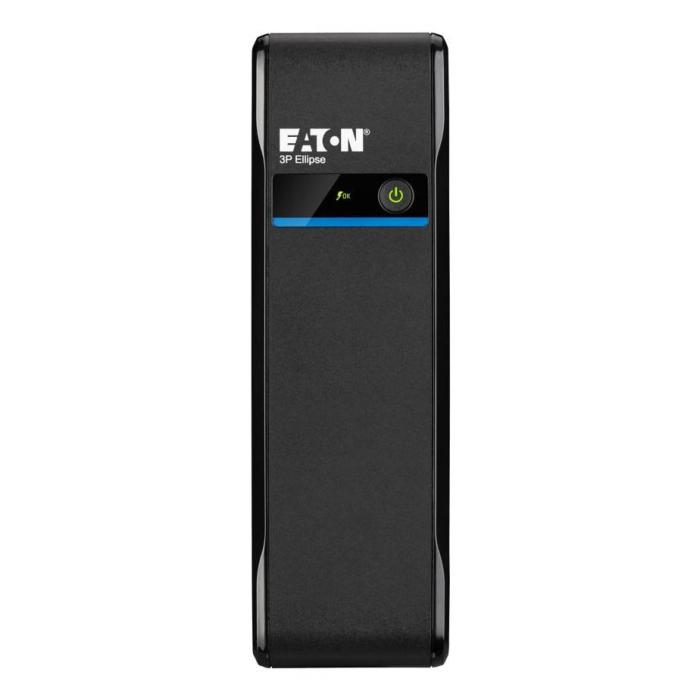

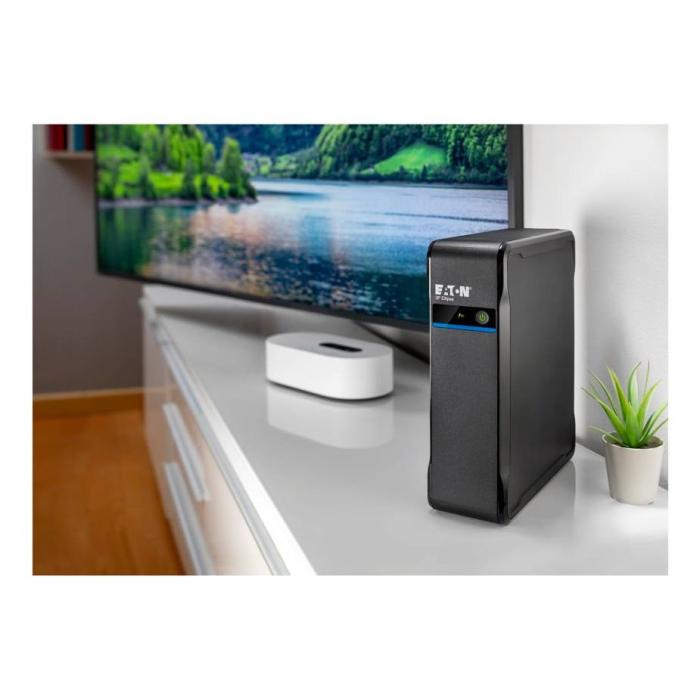

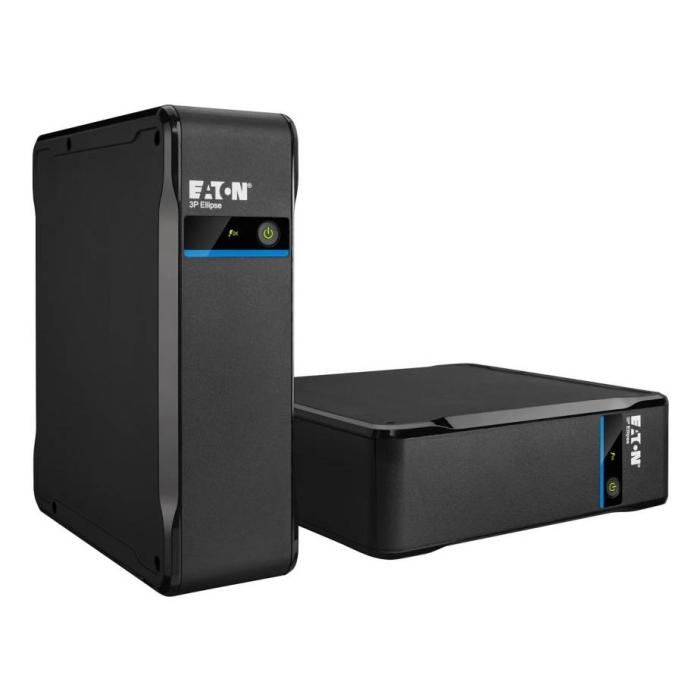

The Eaton 3P550I is a UPS with standby (offline) topology that provides an output power of 330 W and 0.55 kVA, with a power factor of 0.6 and an efficiency of 97% in both normal and ECO modes. It features 4 AC outputs and overload protection, operating with an input voltage of 161 V to 284 V and a frequency of 46/70 Hz, while the output is maintained between 161 V and 284 V at 50/60 Hz. Its waveform is progressive and its average power consumption during operation is only 10.2 W, with a noise level of 25 dB and a single-phase input.
Specifications
Features
- UPS topology: Standby (Offline)
- Output power capacity: 0.55 kVA
- Output power: 330 W
- Waveform: Stepwise
- Input operation voltage (min): 161 V
- Input operation voltage (max): 284 V
- Input frequency: 46/70 Hz
- Output operation voltage (min): 161 V
- Output operation voltage (max): 284 V
- Output frequency: 50/60 Hz
- Power consumption (average operating): 10.2 W
- Number of input phases: 1
- Number of output phases: 1
- Efficiency: 97%
- Efficiency (ECO mode): 97%
- Output power factor: 0.6
- Noise level: 25 dB
- Surge protection: Yes
- Auto shut-off: No
Ports & interfaces

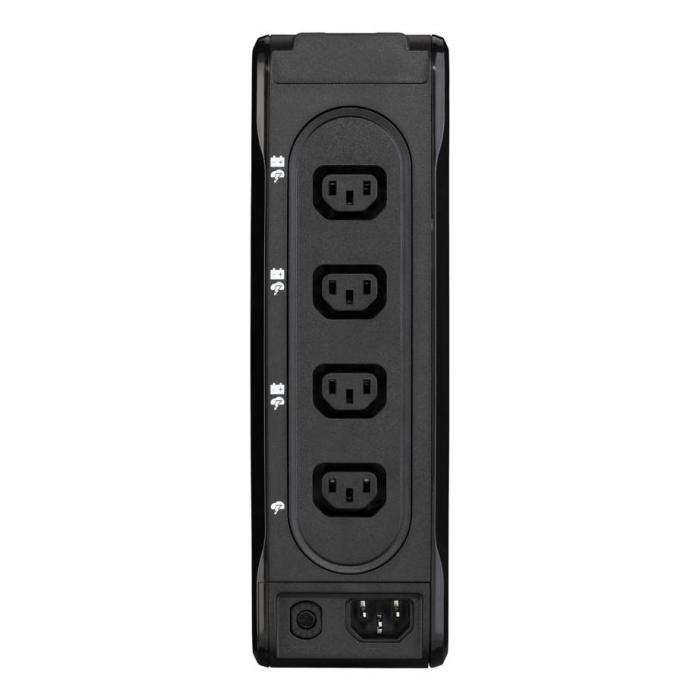

- AC outlet types: C3 coupler
- AC outlets quantity: 4 AC outlet(s)

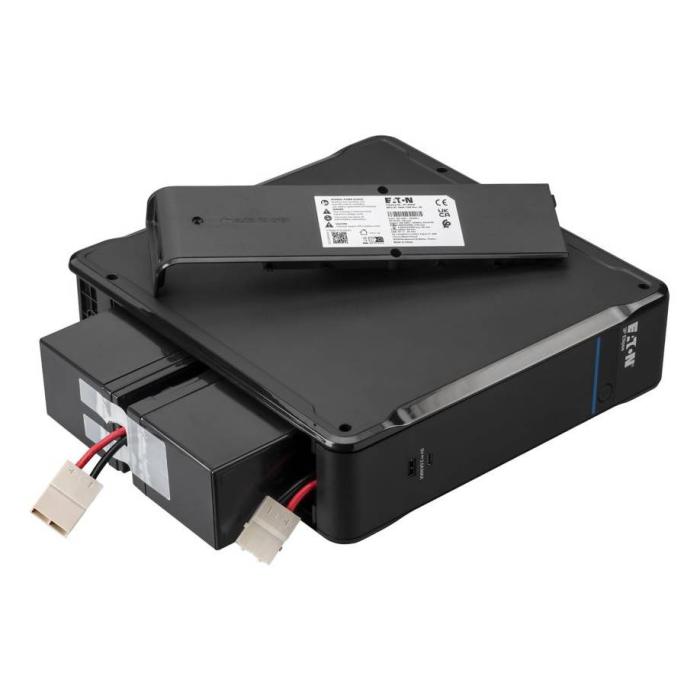

Battery
- Battery capacity: 4.5 Ah
- Battery voltage: 12 V
Design
- Form factor: Tower
- Product colour: Black

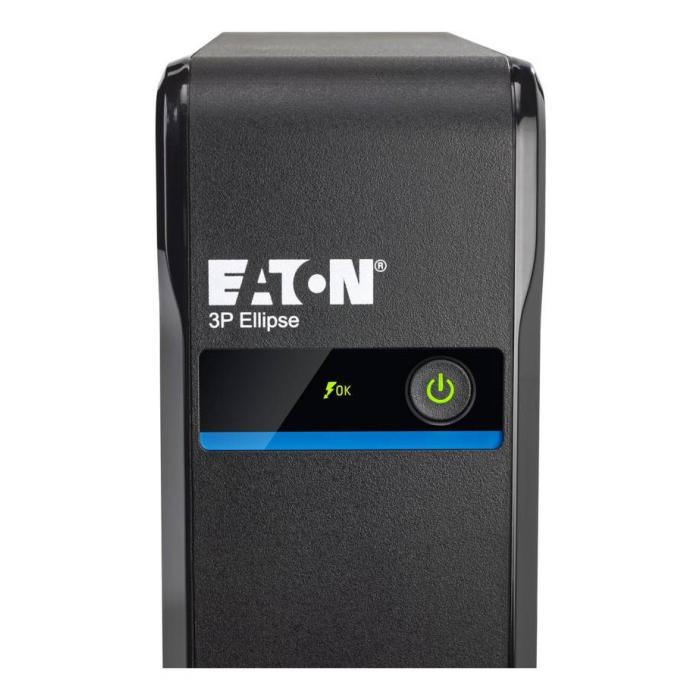

- Display type: LED
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
- Compliance certificates: CB, CE, RoHS, WEEE
- Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm
Packaging content
- Rack mount kit: No
Weight & dimensions
- Width: 81 mm
- Depth: 235 mm
- Height: 263 mm
- Weight: 3 kg
Other features
- Input connection type: C14
- Nominal input voltage: 220-240 V
- Relative humidity: 0 - 95%
