Description

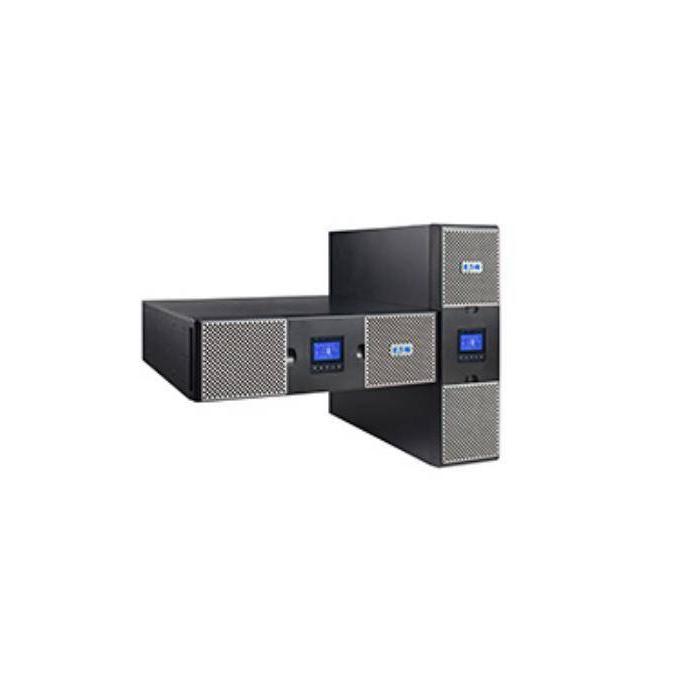

Eaton 9PX3000IRTBPD double-conversion online UPS with 3 kVA and 3000 W of power, delivering a pure sine wave and a power factor of 1 to protect critical equipment. It offers five AC outlets in C19 coupler and Type F format, with adjustable output voltage between 200 and 240 V and 94% efficiency. Its input accepts between 176 and 276 V, with a frequency of 40/70 Hz, and manages output at 50/60 Hz. It includes a USB and RS-232 port for monitoring, as well as a noise level of only 40 dB. This model covers backup needs in professional environments with a single-phase input and connection via a C20 coupler.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 3000 W
- Waveform: Pure sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Number of input phases: 1
- Efficiency: 94%
- Power factor: 1
- Noise level: 40 dB
Ports & interfaces
- AC outlet types: C19 coupler, Type F
- Power plug: C20 coupler
- AC outlets quantity: 5 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9.5 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 3U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC /
Packaging content
- Rack mount kit: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 440 mm
- Depth: 485 mm
- Height: 130 mm
- Weight: 27.4 kg
Packaging data
- Management card included: No
- Bundled software: Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
