Description

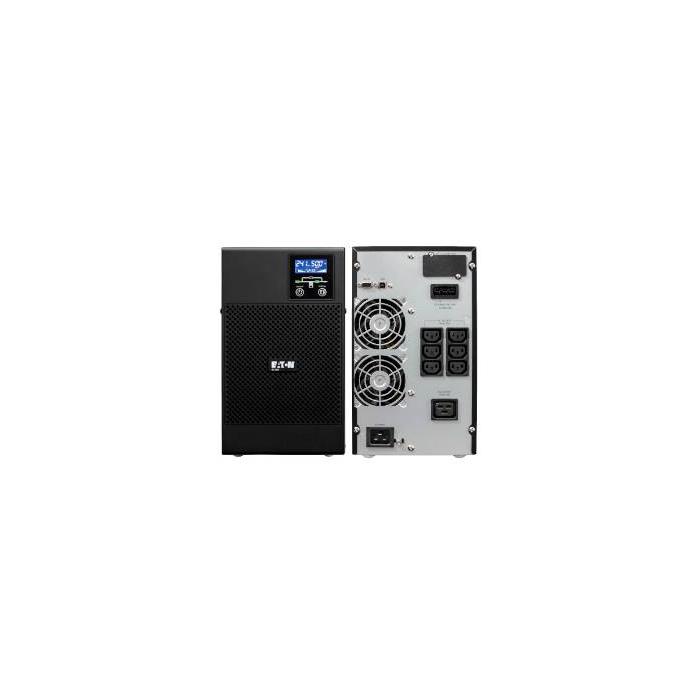

The Eaton 9E3000I is an uninterruptible power supply (UPS) with double-conversion online topology offering 3 kVA of output power and 2400 W, ideal for protecting critical equipment. It provides seven AC outlets with C13 and C19 couplers, while its input uses a C20 connector and features a USB port for management. Its online mode efficiency reaches 91%, with a total harmonic distortion of 2% on the voltage output, which operates between 208 and 240 V. It supports input frequencies from 40 to 70 Hz and output of 50/60 Hz, tolerating overloads of 130% for one minute and 150% for up to ten seconds, with a noise level of only 37 dB. Its input voltage range spans from 176 V to 300 V, ensuring stability against mains fluctuations.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 2400 W
- Input operation voltage (min): 176 V
- Input operation voltage (max): 300 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 208 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Efficiency (On-line mode): 91%
- Overload capacity (1 minute): 130%
- Overload capacity (10 seconds): 150%
- Overload capacity (3 seconds): 150%
- Output voltage Total Harmonic Distortion (THD): 2%
- Noise level: 37 dB
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 7 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
Design
- Form factor: Tower
- Product colour: Black
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: CE, CB, EAC
Safety regulation & standards
- Safety: IEC/EN 62040-1, IEC/EN 62040 -2
Weight & dimensions
- Width: 330 mm
- Depth: 399 mm
- Height: 190 mm
- Weight: 24.2 kg
