Description

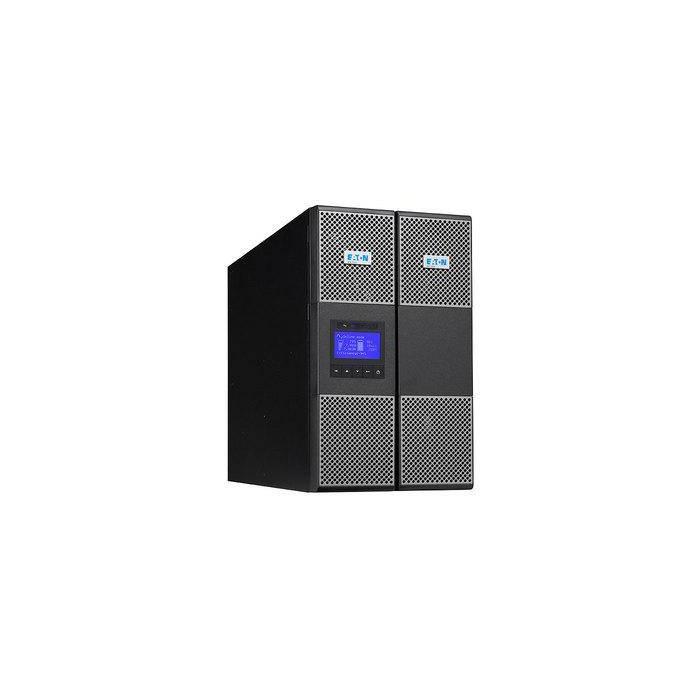

The Eaton 9PX 11000i HotSwap is a double-conversion online UPS with 11 kVA and 10000 W of power, designed to protect critical equipment with a pure sine wave and a power factor of 0.9. It operates with 95% efficiency and supports an input frequency range of 40/70 Hz, offering a stable output at 50/60 Hz with adjustable voltage between 200 and 240 V. Its noise level is 50 dB and it has 5 AC outlets, a USB 2.0 port, and an output total harmonic distortion of 2%, maintaining a crest factor of 3:1. It includes the HotSwap feature, which allows the battery or electronic module to be replaced without interrupting the load, protecting single-phase systems with inputs from 176 to 276 V and an input THD of 5%.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 11 kVA
- Output power: 10000 W
- Waveform: Pure sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Number of input phases: 1
- Efficiency: 0.95%
- Power factor: 0.9
- Crest factor: 3:1
- Output voltage Total Harmonic Distortion (THD): 2%
- Input current Total Harmonic Distortion (THD): 5%
- Noise level: 50 dB
Ports & interfaces
- AC outlet types: C19 coupler, Terminal
- Power plug: Terminal
- AC outlets quantity: 5 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 13 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 6U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 440 mm
- Depth: 700 mm
- Height: 260 mm
- Weight: 86 kg
Packaging data
- Management card included: No
- Bundled software: Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
