Description
The Eaton 9E is a double-conversion online UPS with 1 kVA of output power and 800 W, ideal for protecting critical equipment in network environments. This model with 4 AC outlets offers 91% efficiency and supports overloads of up to 130% for one minute, reaching 150% in bursts of 5 minutes or 10 seconds. With an input voltage range of 100 V to 300 V, and an adjustable output of 208 V to 240 V, it operates at 50/60 Hz. It includes a USB connection and RS-232 serial port for monitoring, with a noise level of only 37 dB.
Specifications
Features
- Noise level: 37 dB
- UPS topology: Double-conversion (Online)
- Output power capacity: 1 kVA
- Output power: 800 W
- Input operation voltage (min): 100 V
- Input operation voltage (max): 300 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 208 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Efficiency: 91%
- Overload capacity (5 minute): 150%
- Overload capacity (1 minute): 130%
- Overload capacity (10 seconds): 150%

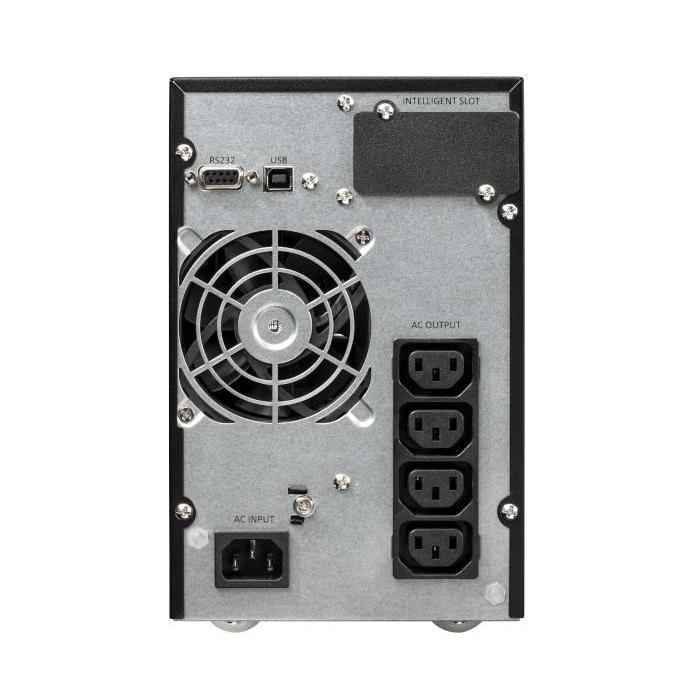

Ports & interfaces
- AC outlet types: IEC 320
- Power plug: C13 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
- RS-232 ports: 1
Battery
- Typical backup time at full load: 4 min
- Typical backup time at half load: 12 min
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040 -2, CE, CB report (TUV)
Safety regulation & standards
- Safety: IEC/EN 62040-1
Weight & dimensions
- Width: 228 mm
- Depth: 144 mm
- Height: 356 mm
- Weight: 9.5 kg
