Description

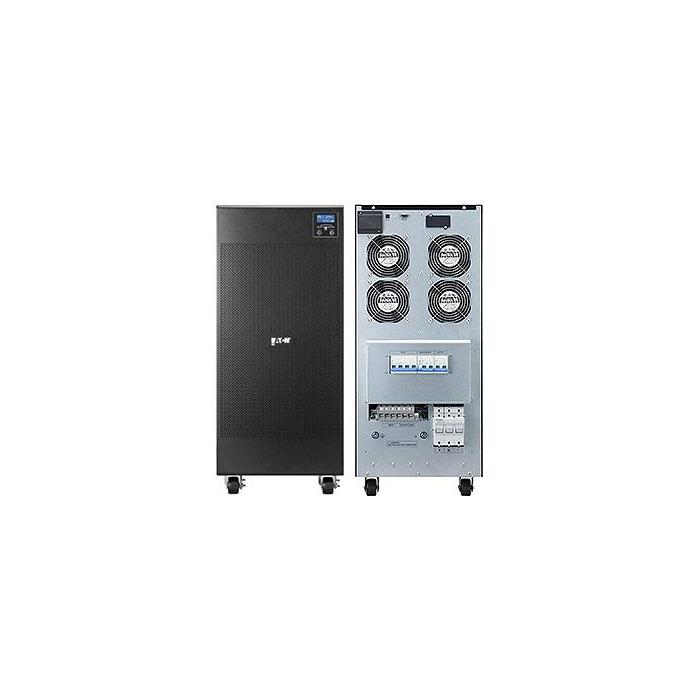

The Eaton 9E 20000I is an online double-conversion UPS that delivers an output power of 16000 W and 20 kVA, with an operating input voltage range of 110 V to 276 V. This system regulates the output frequency between 50 and 60 Hz, maintains an output voltage of 220 to 240 V, and features a total input harmonic distortion of 3%. It supports overloads of 150% for 3 seconds, 130% for 1 minute, and 110% for 10 minutes, with a maximum current of 273 A. Its noise level is 55 dB and it includes a USB 2.0 port and an RS-232 interface for management and monitoring.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 20 kVA
- Output power: 16000 W
- Input operation voltage (min): 110 V
- Input operation voltage (max): 276 V
- Input frequency: 45/66 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency regulation: 50 - 60 Hz
- Maximum current: 273 A
- Overload capacity (10 minutes): 110%
- Overload capacity (1 minute): 130%
- Overload capacity (3 seconds): 150%
- Input current Total Harmonic Distortion (THD): 3%
- Noise level: 55 dB
Ports & interfaces
- AC outlet types: Terminal
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Design
- Form factor: Tower
- Product colour: Black
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: CE, CB report (TUV)
Weight & dimensions
- Width: 350 mm
- Depth: 706 mm
- Height: 815.5 mm
- Weight: 159.9 g
