Description

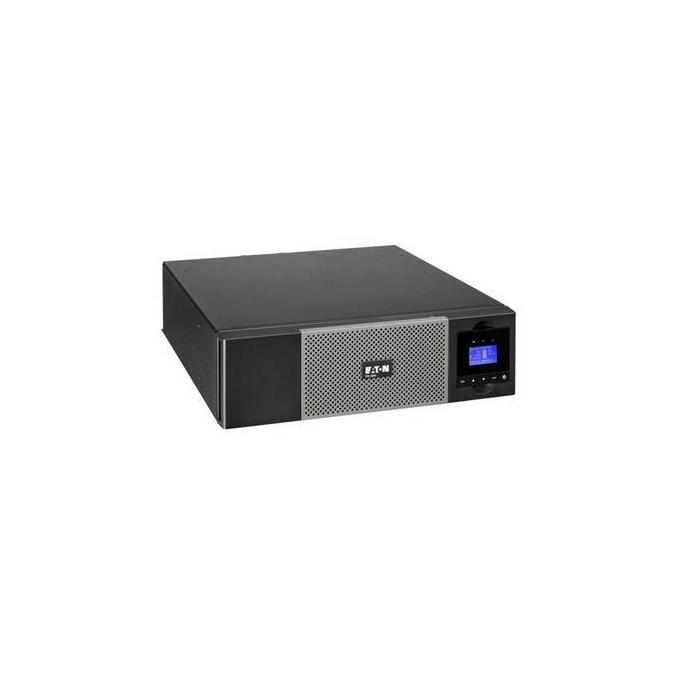

Connect the Eaton 5PX2200IRT3UG2 UPS, a line-interactive uninterruptible power supply with 2.2 kVA and 2200 W of power, delivering a pure sine wave to protect sensitive loads. Its black design integrates over-discharge protection and operates with an input voltage between 160 V and 294 V, as well as supporting an input frequency of 47/70 Hz. This unit includes a USB port and RS-232 serial port, along with a serial port and C13 and C19 output connectors, while the input is via a C20 coupler. The battery is hot-swappable and features automatic self-test, all with a noise level of only 40 dB, making it suitable for office environments or small servers.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 2.2 kVA
- Output power: 2200 W
- Waveform: Pure sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 294 V
- Input frequency: 47/70 Hz
- Noise level: 40 dB
- Power protection features: Overdischarge
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
Battery
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 3U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Compliance certificates: CE
- Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL1778, CSA22.2
Sustainability
- Sustainability compliance: Yes
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 438 mm
- Depth: 483 mm
- Height: 129 mm
- Weight: 27.5 kg
Packaging data
- Management card included: No
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Output connections: 8 x IEC C13 (10A) 2 x IEC C19 (16A)
- Nominal output voltage: 230 V
