Description

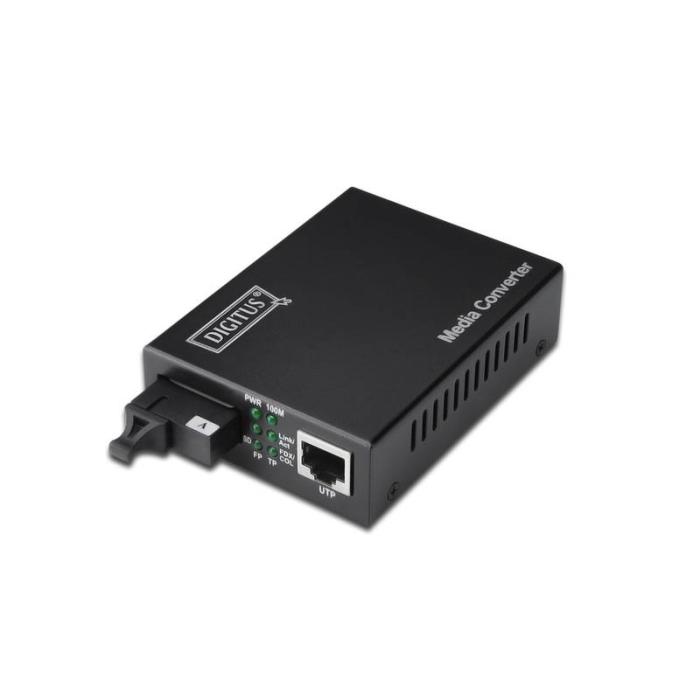

Connect copper and fibre networks with the DIGITUS bidirectional Gigabit media converter, a device with an RJ45 and SC interface operating over 9/125 µm single-mode fibre. It achieves data transfer speeds of 1000 Mbit/s and a maximum distance of 20 kilometres, thanks to its wavelength division multiplexing (WDM) with 1310 nm emission. This model supports IEEE 802.3, IEEE 802.3u and IEEE 802.3z standards, as well as auto-negotiation, auto MDI/MDI-X and full or half duplex mode, with link loss return and forwarding. Its cabling technology includes 10BASE-T, 100BASE-TX and 1000BASE-TX for the electrical side, while the optical side uses 1000BASE-LX, all integrated into a Gigabit Ethernet system.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 10Base-T, 100Base-TX, 1000Base-TX
- Converter output interface: 1000Base-LX
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX
- Fiber ethernet cabling technology: 1000BASE‑LX
- Data transfer rate: 1000 Mbit/s
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Link Loss Carry Forward (LLCF) supported: Yes
- Link Loss Return (LLR) supported: Yes
Performance
- Maximum transfer distance: 20000 m
- Wavelength: 1310 nm
- Wavelength-division multiplexing (WDM): Yes
- Fiber mode structure: Single-mode
- Fiber cable diameters supported (core/cladding): 9/125 µm
- Buffer size: 2000 KB
Features
- Internal: No

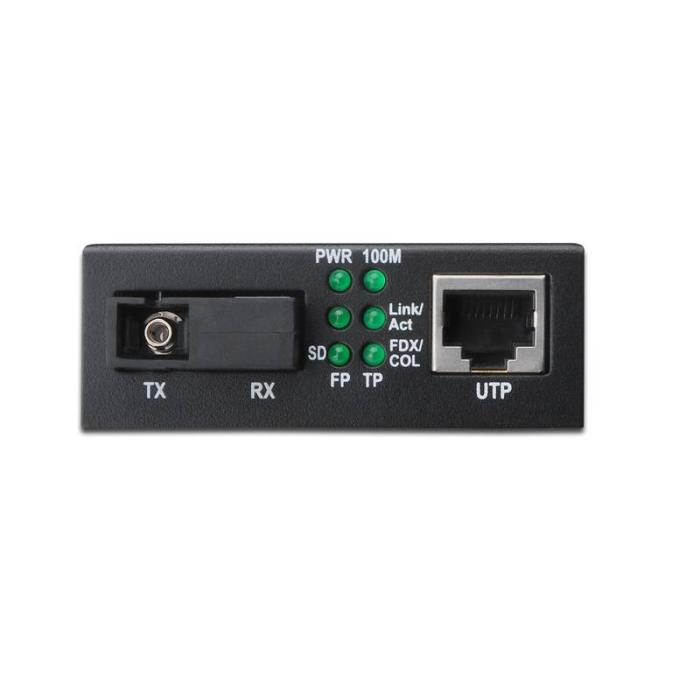

- LED indicators: Link, Power, Status
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC

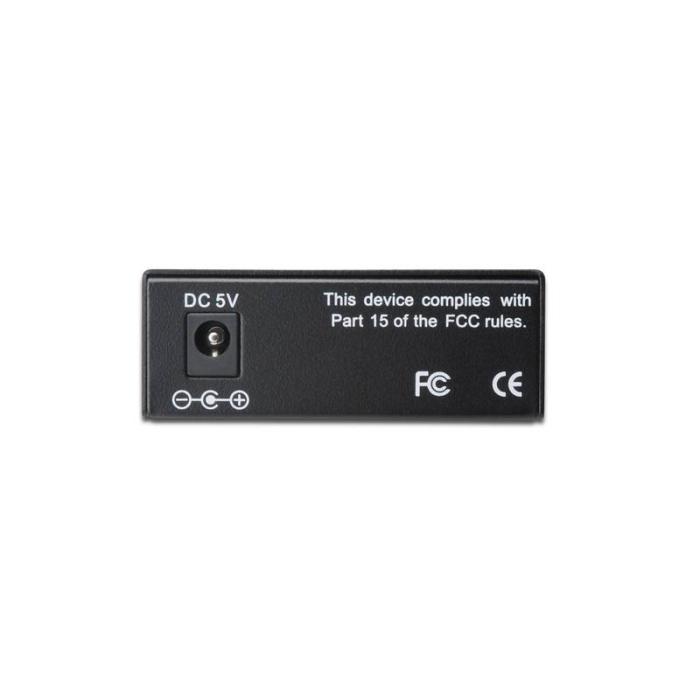

- DC-in jack: Yes
Power
- Output voltage: 5 V
- Output current: 0.8 A
- Power consumption (typical): 2.5 W
- Power over Ethernet (PoE): No
- External power adapter: Yes
Weight & dimensions
- Width: 70 mm
- Depth: 95 mm
- Height: 26 mm
- Weight: 200 g
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 130 mm
- Package depth: 55 mm
- Package volume: 1716 cm³
- Package weight: 450 g
- Package type: Box
Logistics data
- Country of origin: China
- UK Trade Tariff code: 85176200
- Harmonized System (HS) code: 85176990
