Description

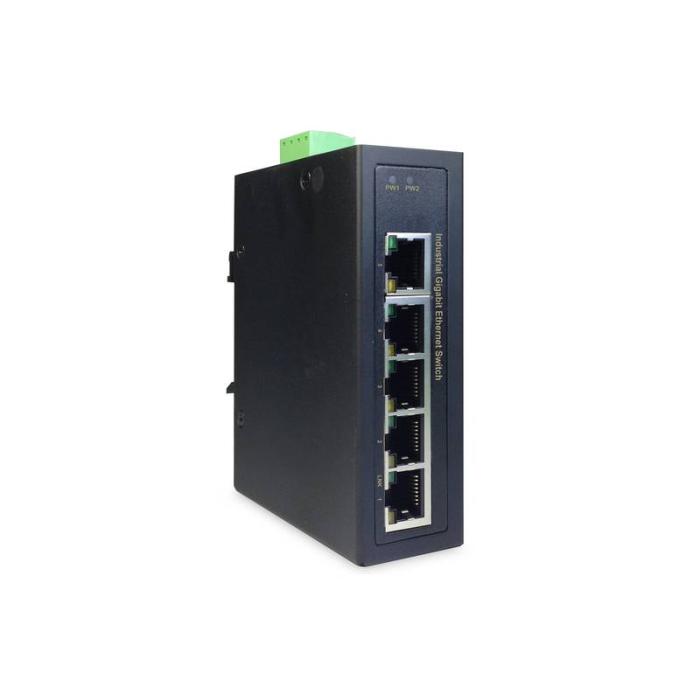

Digitus 5 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged. Network switch with 5 Gigabit Ethernet ports from DIGITUS, with a black metal casing and an industrial design, ideal for fixed installations. This unmanaged switch offers five Gigabit Ethernet RJ-45 connections (10/100/1000) and a switching capacity of 10 Gbit/s, with a MAC address table of 8000 entries. It supports flow control, auto MDI/MDI-X and full duplex mode, complying with IEEE 802.3, 802.3ab, 802.3u and 802.3x standards. Its MAC address filter enhances network security, and it supports wall or DIN rail mounting to suit different environments.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- VLAN support: No
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
Security
- MAC address filtering: Yes
Design
- Product colour: Black
- Housing material: Metal
- Wall mountable: Yes
- DIN rail mounting: Yes
- Vandal-proof: No
- Suitable for outdoor use: No
Performance
- Mean time between failures (MTBF): 500000 h
Power
- Redundant power supply (RPS) support: Yes
- DC input voltage: 18 - 36 V
- Power consumption (typical): 2.76 W
- Power protection features: Over voltage, Reverse polarity, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Ethernet interface type: Gigabit Ethernet
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
Packaging data
- Package width: 65 mm
- Package depth: 165 mm
- Package volume: 2305.88 cm³
- Package weight: 462.5 g
Logistics data
- UK Trade Tariff code: 85176200
- Country of origin: Taiwan
- Harmonized System (HS) code: 85176990
