Description

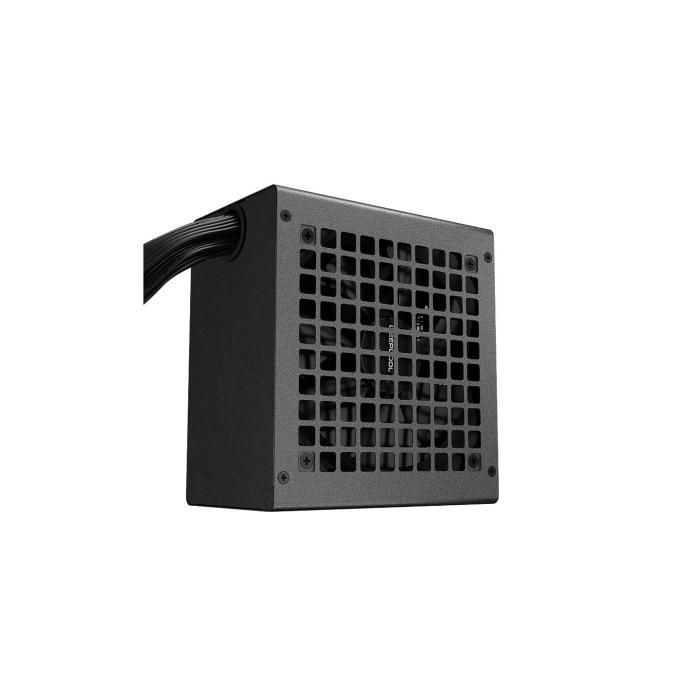

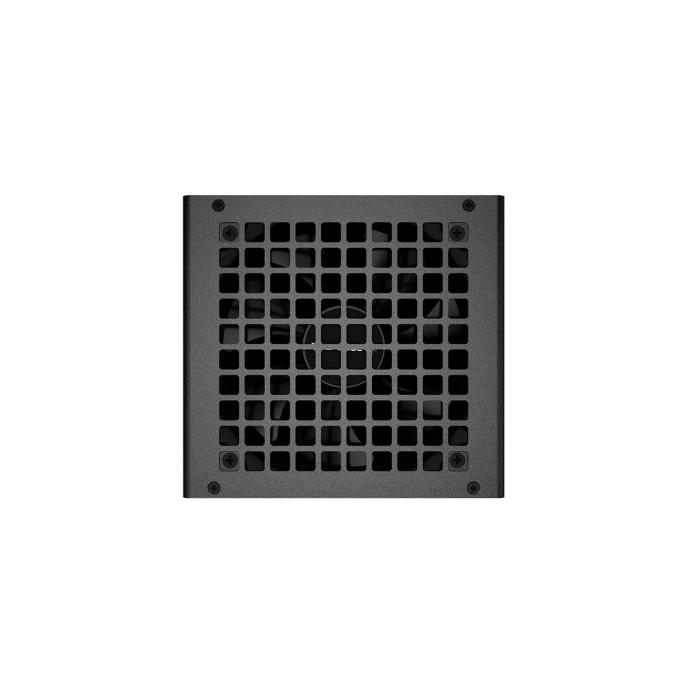

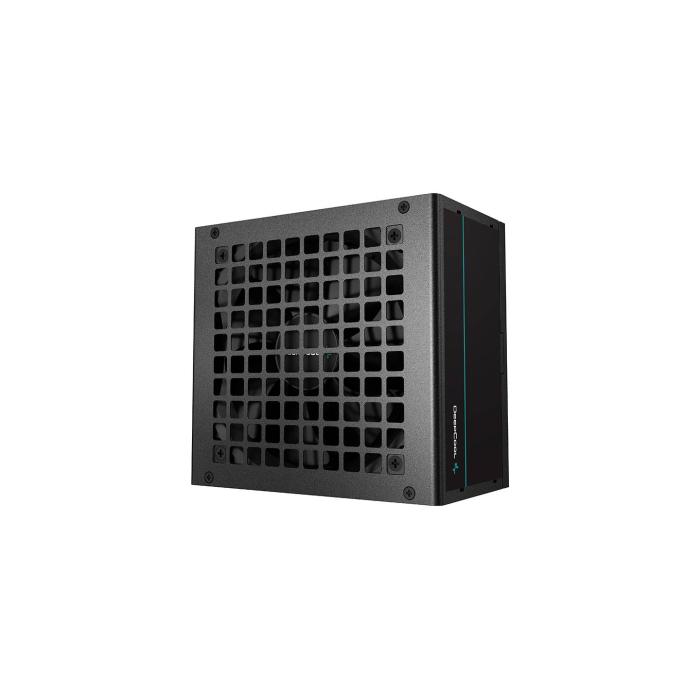

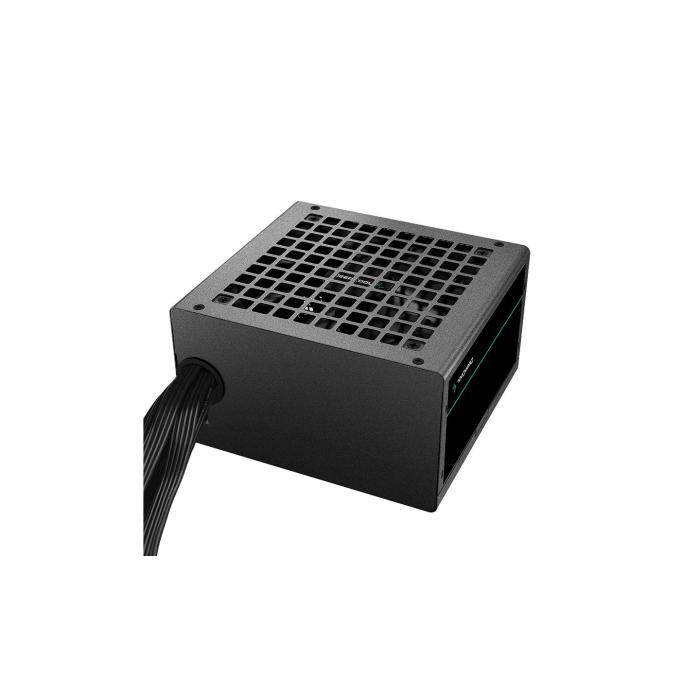

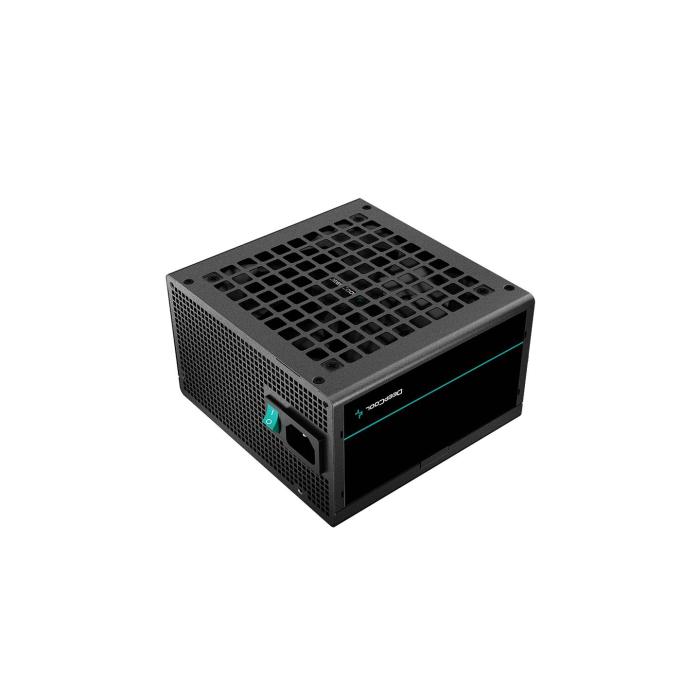

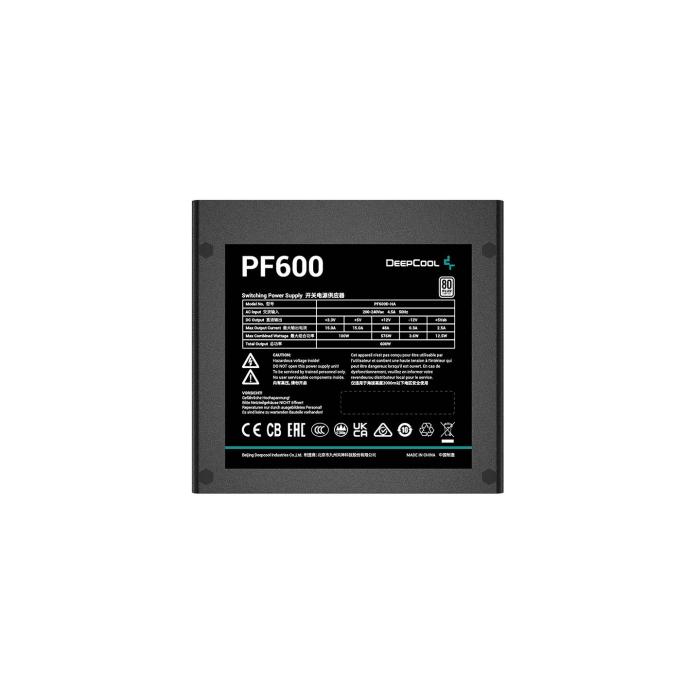

The DeepCool PF600 is a 600 W power supply unit in ATX form factor and black, designed to serve desktop configurations. Its motherboard connection is 20+4 pin ATX, with a 55 cm cable that facilitates installation in cases of different dimensions. Its dimensions are 150 x 86 x 140 mm (width x height x depth), so it fits in the usual space reserved for this component. It supports an input voltage of 220 to 240 V at 50 Hz and offers an efficiency of 85%. Power distribution includes 576 W on the +12 V rail with 48 A, plus 100 W on both +5 V and 3.3 V. It incorporates protections against overcurrent, overvoltage, short circuit and undervoltage, and maintains a hold-up time of 16 ms.
Specifications
Power
- Total power: 600 W
- AC input voltage: 220 - 240 V
- AC input frequency: 50 Hz
- Combined power (+3.3V): 100 W
- Combined power (+12V): 576 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 15 A
- Max output current (+12V): 48 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Hold time: 16 ms
- Efficiency: 85%
- Power protection features: Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 4
- SATA power cable length: 450, 600, 750, 900 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
Performance
- 80 PLUS certification: 80 PLUS
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.4
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 30 °C
Packaging content
- Cables included: AC
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Packaging data
- Package type: Box
