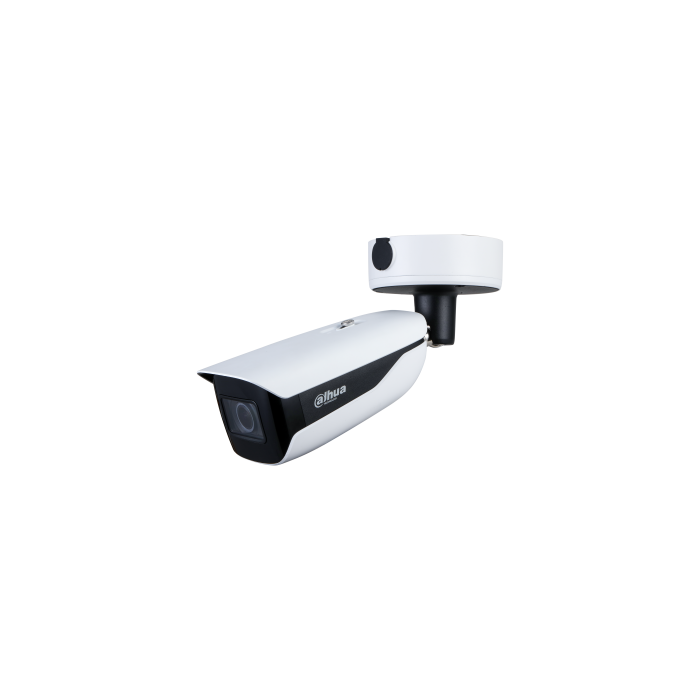

Name: Dahua Technology WizMind IPC-HFW7442H-Z4-S2 Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling
Brand: DAHUA TECHNOLOGY
Price: 511.32 USD
Availability: InStock

Dahua Technology WizMind IPC-HFW7442H-Z4-S2 Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

$511.32

$511.32 without VAT

Dahua Technology WizMind IPC-HFW7442H-Z4-S2 Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling. More info

Amount

Brand: DAHUA TECHNOLOGY

SKU: 98265 PRC: 426304 EAN: 6923172538178 PN: 1.0.01.04.37905

Description

Specifications

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
People counting function: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Certification: EN 62368-1, FCC, UL62368-1 & CAN/CSA C22.2

Design

Form factor: Bullet
Mounting type: Ceiling
Product colour: Black, White
Housing material: Metal, Plastic
Protection features: Corrosion resistant
International Protection (IP) code: IP67
IK code: IK10

Camera

Minimum illumination: 0.001 lx
Angle of rotation: 270°
Lens viewing angle, horizontal: 41 - 15°
Lens viewing angle, vertical: 22 - 9°
Lens viewing angle, diagonal: 48 - 18°
White balance: Auto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter type: Electronic
Camera shutter speed: 1/3 - 1/100000 s
Adjustment shutter speed: Auto/Manual

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Progressive scan: Yes
Sensor type: CMOS
Number of effective pixels (H x V): 2688 x 1520 pixels

Lens system

Number of lenses: 1
Focal length range: 8 - 32 mm
Maximum aperture number: 1.6
Detect distance (wide): 160 m
Detect distance (tele): 406.9 m
Observe distance (wide): 64 m
Observe distance (tele): 162.8 m
Recognize distance (wide): 32 m
Recognize distance (tele): 81.4 m
Identify distance (wide): 16 m
Identify distance (tele): 40.7 m
Closest focusing distance: 1 m

Night vision

Night vision: Yes
Night vision distance: 120 m
LED type: IR
Number of illumination LEDs: 4

Video

Maximum resolution: 2688 x 1520 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264H, H.265, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296
Supported video modes: 240p, 480p, 576p, 720p, 1080p, 1520p
Frame rate: 60 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto/Manual
Privacy masking: Yes
Image stabilizer: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 32 kbps - 16384 kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes

Audio

Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Signal-to-Noise Ratio (SNR): 56 dB
Voice codecs: G.711Mu, G.711a, G.723, G.726

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at
Supported network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPP
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes
Streaming method: Multicast

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Internal memory: 2000 MB
ROM capacity: 4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RS-485 ports: 1

Security

Mirror: Yes
Alarm input channels: 3
Alarm output channels: 2
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Abandoned object, Face detection, Intrusion, Missing object, People counting, Tripwire

Management features

Web browser: Yes
Management software: Smart PSS, DSS, DMSS

Power

Power source type: AC, DC, PoE
AC input voltage: 24 V
Power consumption (typical): 5.11 W
Power consumption (max): 16.8 W
Power consumption (Power over Ethernet (PoE)): 7.62 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -40 - 65 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 65%

System requirements

Mobile operating systems supported: Android, iOS

Weight & dimensions

Width: 108.5 mm
Height: 92.9 mm
Length: 340.1 mm
Weight: 1.54 kg

Packaging data

Package weight: 2.44 kg

Packaging content

Number of cameras: 1
