Description

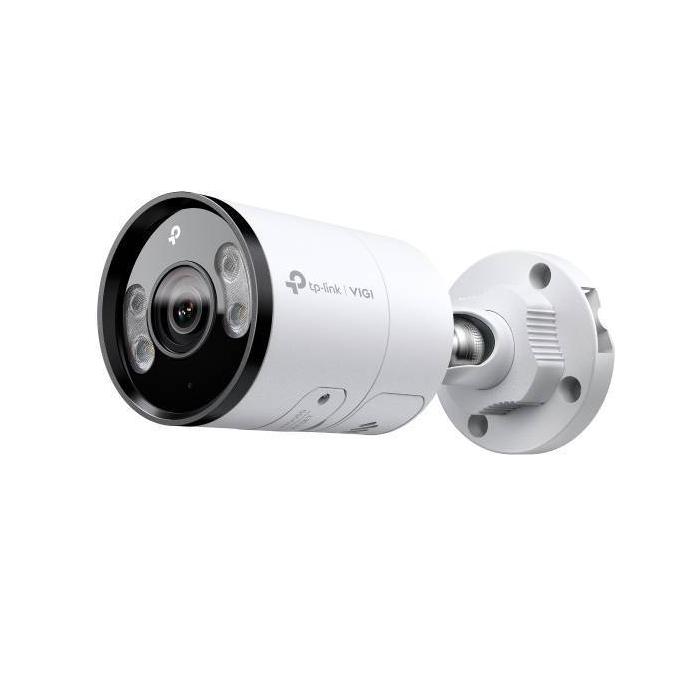

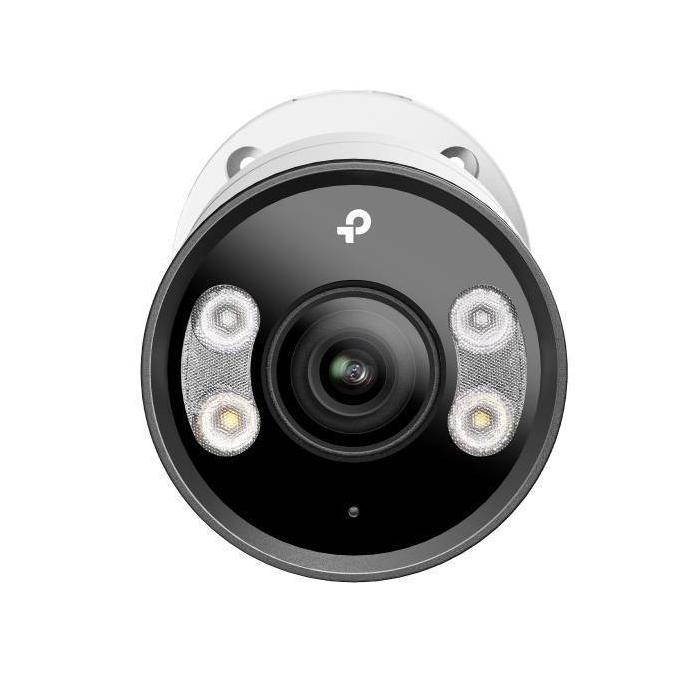

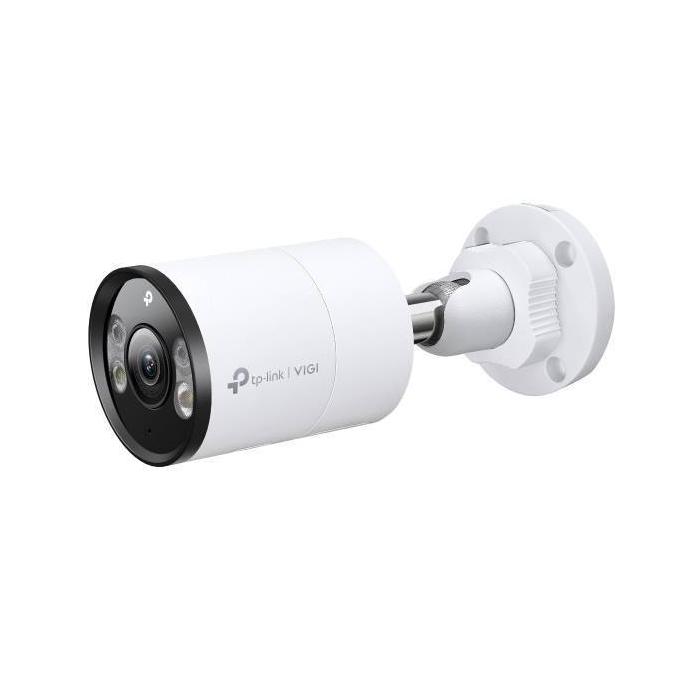

TP-Link VIGI C345 IP security camera in white, bullet-shaped and designed for wall mounting. It offers a resolution of 2688 x 1520 pixels and wired connectivity. Its metal housing, with IP67 rating, makes it suitable for outdoor placement. It features built-in light, day/night mode and infrared cut filter to adapt to different lighting conditions. It has wide dynamic range and a 120 dB dynamic range. The shutter speed ranges from 1/3 to 1/10000 s. The tilt angle covers 0 to 90 degrees, the rotation angle reaches 360 degrees and the pan range spans 0 to 360 degrees. Certified with CE, NTRA, VCCI, KC, BSMI, FCC and IC, it weighs 525 g and measures 184 x 74 x 74 mm (width x height x depth).
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Built-in light: Yes
- Dynamic range: 120 dB
- Certification: CE, NTRA, VCCI, KC, BSMI, FCC, IC
Design
- Form factor: Bullet
- Mounting type: Wall
- Product colour: White
- Housing material: Metal
- International Protection (IP) code: IP67
Camera
- Minimum illumination: 0.005 lx
- Angle of rotation: 360°
- Lens viewing angle, horizontal: 52.7°
- Lens viewing angle, vertical: 29°
- Lens viewing angle, diagonal: 60.8°
- Tilt angle range: 0 - 90°
- Pan range: 0 - 360°
- Camera shutter speed: 1/3 to 1/10000 s
- Number of Privacy masking areas: 4
Image sensor
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Detect distance: 120 m
- Observe distance: 50 m
- Recognize distance: 24 m
- Maximum aperture number: 1.6
- Identify distance: 12 m
- Fixed focal length: 6 mm
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR/White
- Number of illumination LEDs: 2
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 2688 x 1520 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264, H.264+, H.265, H.265+
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
- Frame rate: 30 fps
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Privacy masking: Yes
- Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Region of Interest (ROI) encoding: Yes
- Smart IR: Yes
Audio
- Built-in speaker(s): Yes
- Audio system: 2-way
- Signal-to-Noise Ratio (SNR): 52 dB
- Built-in microphone: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Wi-Fi: No
- Bluetooth: No
- Live view: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 512 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- IP address filtering: Yes
- Mirror: Yes
- Human and vehicle targets classification: Yes
- Digest authentication: Yes
Management features
- Reset button: Yes
Power
- Power source type: DC, PoE
- Power consumption (max): 9.7 W
- Power consumption (Power over Ethernet (PoE)): 10.7 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 184 mm
- Depth: 74 mm
- Height: 74 mm
- Weight: 525 g
Packaging content
- Number of cameras: 1
