Description

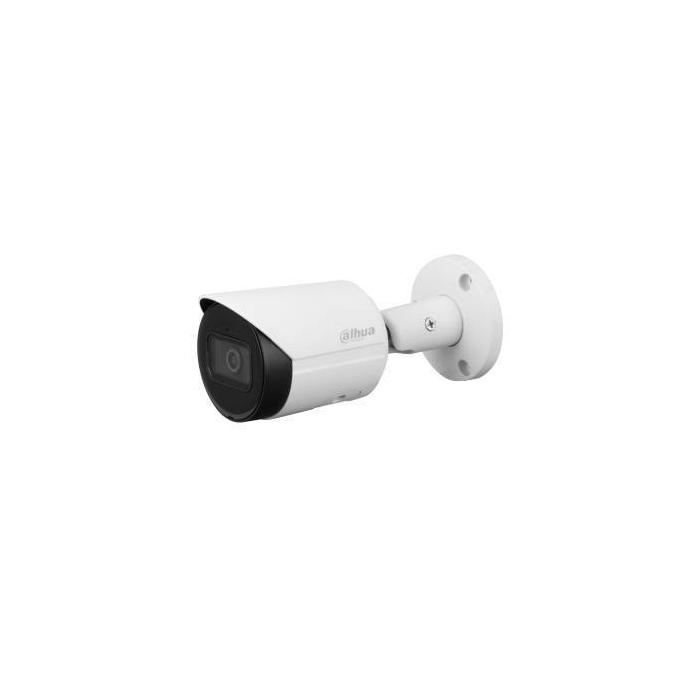

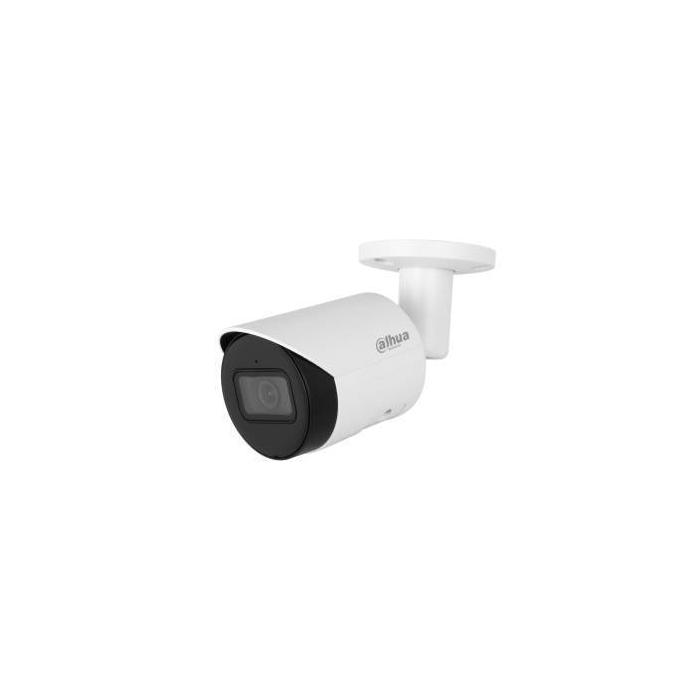

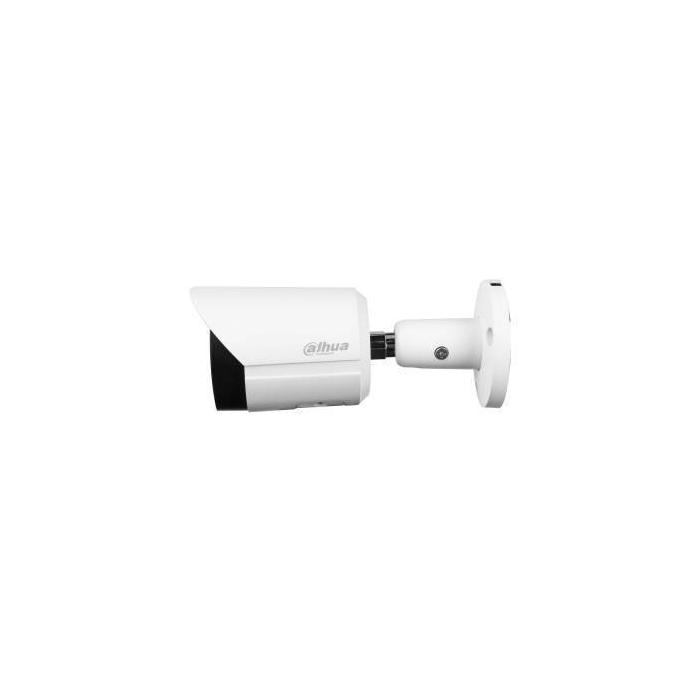

4MP IR Fixed-focal Bullet WizSense Network Camera

Specifications

Performance


  • Type: IP security camera
  • Placement supported: Outdoor
  • Connectivity technology: Wired
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Dynamic range: 120 dB

Design


  • Form factor: Bullet
  • Mounting type: Wall
  • Product colour: White
  • Housing material: Metal
  • International Protection (IP) code: IP67

Camera


  • Minimum illumination: 0 lx
  • Angle of rotation: 360°
  • Lens viewing angle, horizontal: 95°
  • Lens viewing angle, vertical: 52°
  • Lens viewing angle, diagonal: 114°
  • Tilt angle range: 0 - 90°
  • Pan range: 0 - 360°
  • White balance: Auto, Manual, Street lamp, Natural
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/3 - 1/100.000 s
  • Adjustment shutter speed: Auto/Manual
  • Number of Privacy masking areas: 4

Image sensor


  • Number of sensors: 1
  • Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
  • Progressive scan: Yes
  • Sensor type: CMOS

Lens system


  • Detect distance: 63.6 m
  • Observe distance: 25.4 m
  • Recognize distance: 12.7 m
  • Fixed focus: Yes
  • Identify distance: 6.4 m
  • Minimum aperture number: 1.6
  • Fixed focal length: 2.8 mm
  • Closest focusing distance: 0.9 m

Night vision


  • Night vision: Yes
  • Night vision distance: 30 m
  • LED type: IR
  • Number of illumination LEDs: 1

Video


  • Maximum resolution: 2668 x 1520 pixels
  • Total megapixels: 4 MP
  • Video compression formats: H.264, H.264B, H.264H, H.265, M-JPEG
  • Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 3D noise reduction
  • Gain control type: Auto/Manual
  • Flip & mirror: Yes
  • Privacy masking: Yes
  • Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Bit rate: 12 kbps–6144 kbps
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Region of Interest (ROI) encoding: Yes

Audio


  • Signal-to-Noise Ratio (SNR): 56 dB
  • Built-in microphone: Yes
  • Voice codecs: G.711Mu, G.711a, G.726, PCM

Network


  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
  • Wi-Fi: No
  • Bluetooth: No
  • Number of users: 6 user(s)
  • Live view: Yes

Storage


  • Built-in HDD: No
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)
  • Maximum memory card size: 256 GB
  • Internal memory: 128 MB
  • ROM capacity: 128 MB

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 1

Security


  • Mirror: Yes

Management features


  • Web browser: Yes

Power


  • Power source type: DC, PoE
  • Power consumption (typical): 2.5 W
  • Power consumption (max): 4.2 W
  • Power consumption (Power over Ethernet (PoE)): 3.3 W
  • DC output voltage: 12

Operational conditions


  • Operating temperature (T-T): -40 - 60 °C
  • Storage temperature (T-T): -40 - 60 °C
  • Operating relative humidity (H-H): 0 - 95%

Weight & dimensions


  • Width: 166.2 mm
  • Depth: 70 mm
  • Height: 70 mm
  • Weight: 480 g

Packaging data


  • Package weight: 590 g

Packaging content


  • Number of cameras: 1
