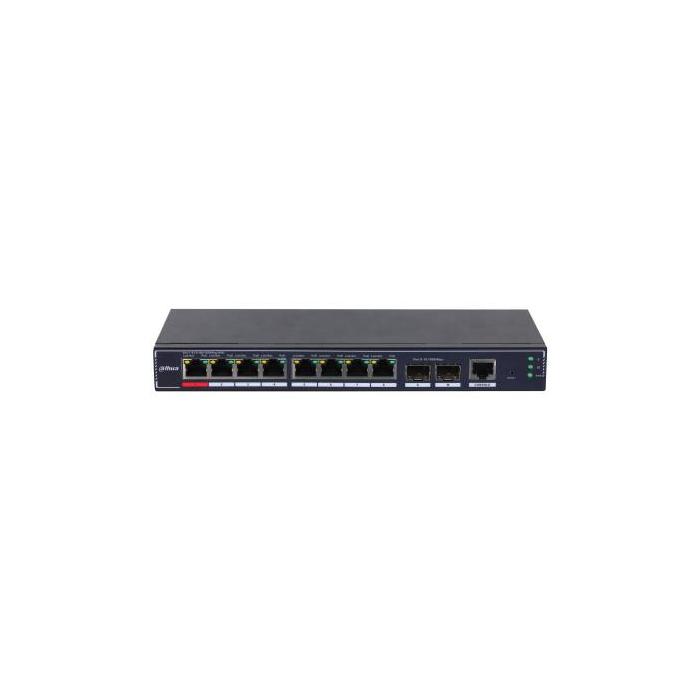

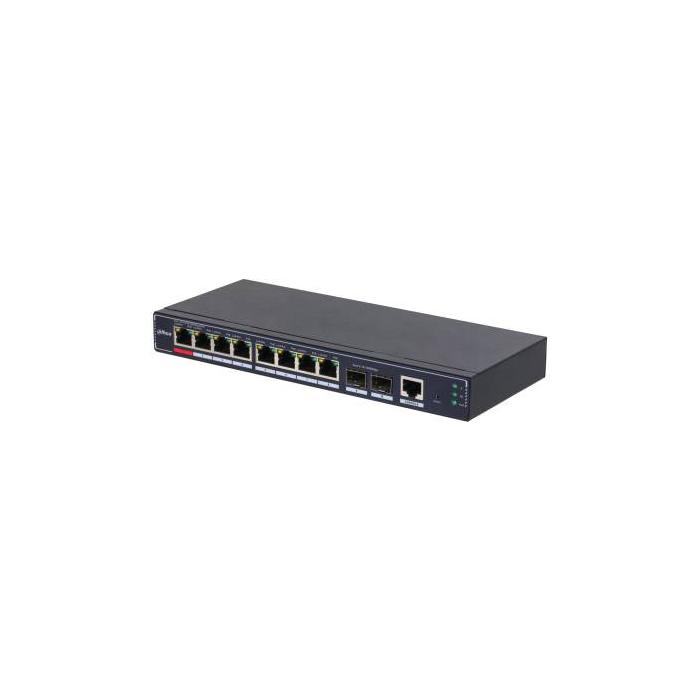

Name: Dahua Technology PoE SG4010P-2F Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: DAHUA TECHNOLOGY
Price: 88.55 USD
Availability: InStock

Dahua Technology PoE SG4010P-2F Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

$88.55

$88.55 without VAT

Dahua Technology PoE SG4010P-2F Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black. More info

Amount

Brand: DAHUA TECHNOLOGY

SKU: 103262 PRC: 465715 EAN: 6923172598592 PN: dh-sg4010p-2f

Description

8 x 10/100/1000Base-T PoE, 2 x 1000Base-X uplink, 1 x Console, 20 Gbps, 14.88 Mpps, 4.1 Mbit, 8K MAC, 0.64 kg

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: No

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
SFP module slots quantity: 2
Fiber uplink ports quantity: 2
Console port: RJ-45

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 80
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client
IGMP snooping: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP V1/V2C/V3

Design

Rack mounting: No
Product colour: Black
Housing material: Steel
Reset button: Yes
LED indicators: Yes
Wall mountable: Yes

Performance

Fanless: Yes
Mean time between failures (MTBF): 1407459.54 h

Power

Power source: DC
Power supply included: Yes
DC input voltage: 48 - 57 V
Input current: 2.22 A
Power consumption (max): 110 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 110 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 240 mm
Depth: 104 mm
Height: 28 mm
Weight: 640 g

Packaging data

Package width: 316 mm
Package depth: 240 mm
Package height: 82 mm
Package weight: 1.5 kg

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: CE
