Description

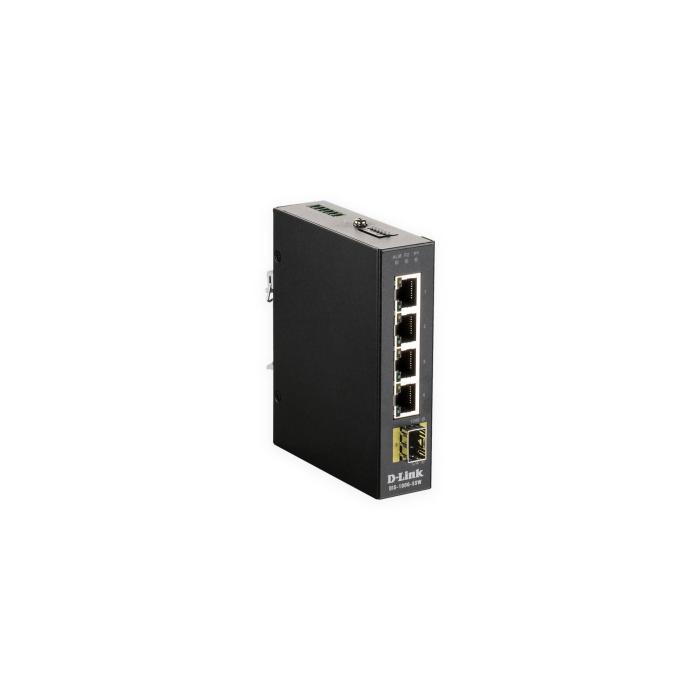

The D-Link DIS‑100G‑5SW switch is an unmanaged Layer 2 device with Gigabit Ethernet (10/100/1000) connectivity and a black colour. It features four RJ-45 Ethernet ports for connecting wired devices and one SFP module slot with LC fibre optic connector, allowing the network to be expanded via a fibre link. Its switching capacity reaches 10 Gbit/s and its forwarding rate is 7.44 Mpps, with a MAC address table of 2000 entries. It supports auto-negotiation and Auto MDI/MDI-X, full-duplex operation and flow control, as well as traffic classification and storm transmission control. It supports Jumbo Frames and complies with the IEEE 802.3, 802.3ab, 802.3az, 802.3u, 802.3x and 802.3z standards. Its compact format measures 112.2 x 89.4 x 29.1 mm (width x height x depth) and weighs 295 g, so it sits easily on any work surface.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
- Traffic shaping: Yes
Ports & interfaces

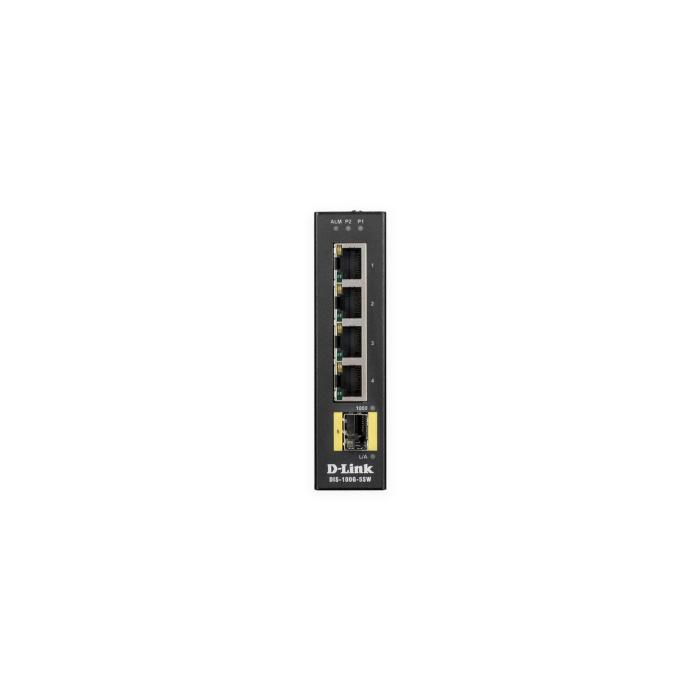

- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 1
- Fiber optic connector: LC
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.44 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Multicast features
- Multicast support: Yes
Design
- Product colour: Black
- LED indicators: LAN, Power
- Wall mountable: Yes

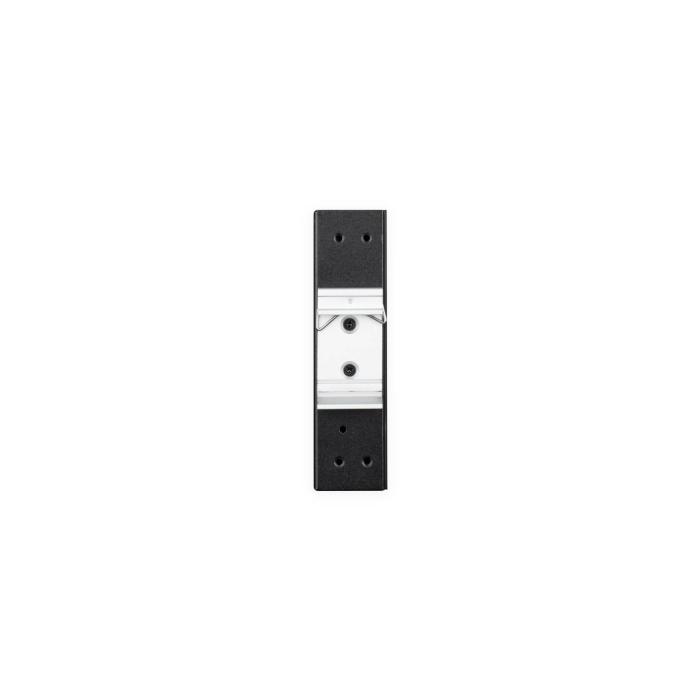

- DIN rail mounting: Yes
- Electromagnetic compatibility: FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
Power

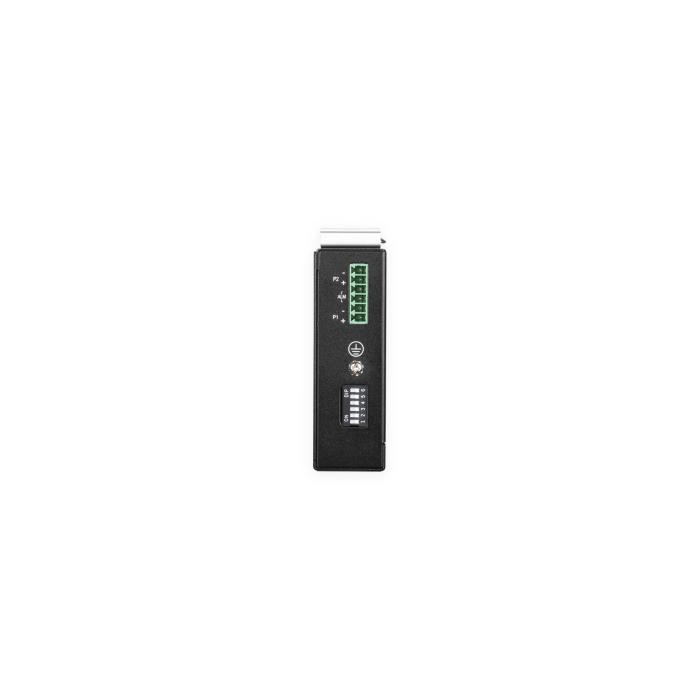

- DC input voltage: 12 - 58 V
- Power consumption (typical): 2.74 W
- Power consumption (max): 3.57 W
- Power protection features: Over current, Reverse polarity
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Heat dissipation: 12.18 BTU/h
Weight & dimensions
- Depth: 29.1 mm
- Height: 89.4 mm
- Weight: 295 g
- Width: 112.2 mm
Packaging data
- Package width: 140 mm
- Package depth: 178 mm
- Package height: 83 mm
- Package weight: 500 g
Technical details
- Shipping (inner) case height: 20.5 cm
- Shipping (inner) case width: 30.5 cm
- Shipping (inner) case length: 44 cm
- Shipping (inner) case net weight: 5 kg
- Products per shipping (inner) case: 10 pc(s)
- Pallet gross weight (air): 220 kg
- Master (outer) cases per pallet (air): 36 pc(s)
- Products per pallet (air): 360 pc(s)
- Pallet gross length: 120 cm
- Pallet gross width: 110 cm
- Pallet height (air): 136.5 cm
- Pallet gross weight (sea): 321.6 kg
- Master (outer) cases per pallet (sea): 54 pc(s)
- Products per pallet (sea): 540 pc(s)
- Pallet height (sea): 198 cm
- Shipping (inner) case gross weight: 5.64 kg
Certificates
- Certification: IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE
Logistics data
- Harmonized System (HS) code: 85176990
