Name: D-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) & 2 x SFP
Brand: D-LINK
Price: 474.18 USD
Availability: InStock

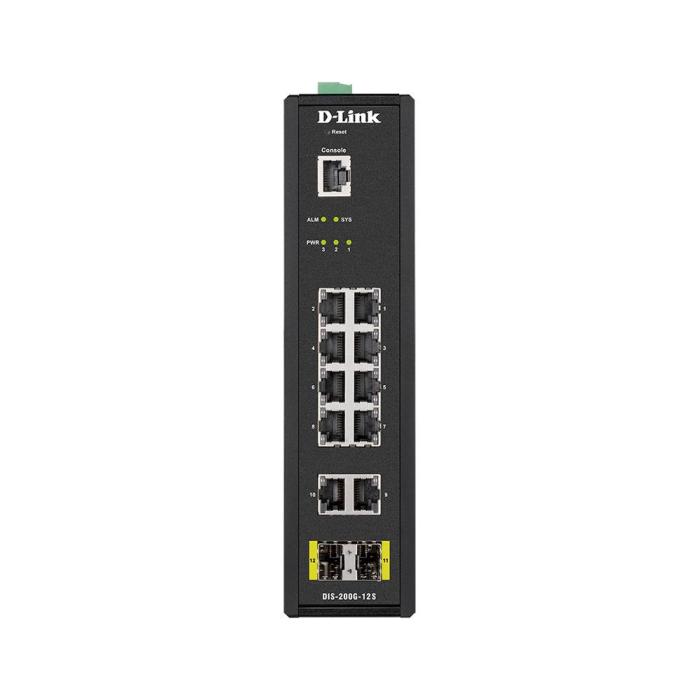

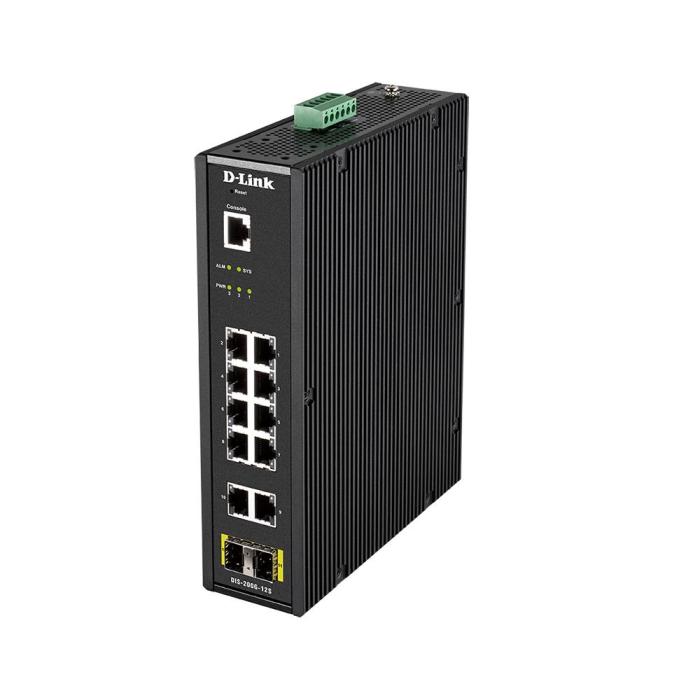

D-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) & 2 x SFP

$474.18

$474.18 without VAT

Amount

Brand: D-LINK

SKU: 85592 PRC: 295463 EAN: 790069433535 PN: DIS-200G-12S

Description

D-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) u0026 2 x SFP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, Wall mountable

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 10
SFP module slots quantity: 2
Console port: RJ-45

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Auto-negotiation: Yes
Active link detection: Yes
VLAN support: Yes
Virtual LAN features: Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs: 4094

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 24 Gbit/s
Forwarding rate: 17.85 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9216

Security

DHCP features: DHCP client
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SSL/TLS
Authentication: Port-based authentication
Authentication type: RADIUS
Queue scheduling algorithms: SPQ, Weighted Round Robin (WRR)

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP v1/v2c/v3, SNTP, Telnet

Design

Rack mounting: Yes
Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30
Wall mountable: Yes
DIN rail mounting: Yes
Number of fans: 0 fan(s)
Electromagnetic compatibility: CISPR 22, FCC Part 15B Class A

Performance

Mean time between failures (MTBF): 276773 h

Power

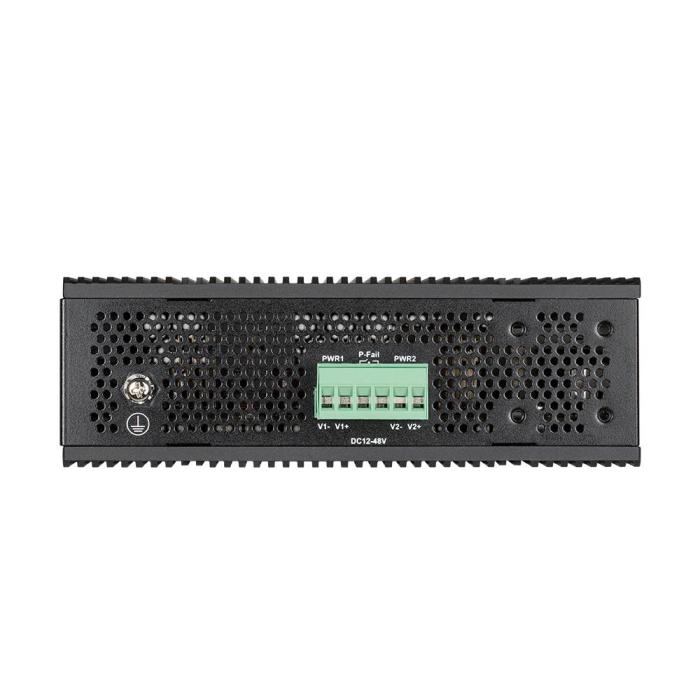

DC input voltage: 12 - 48 V
Power consumption (max): 10.26 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): -40 - 65 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 35.01 BTU/h

Weight & dimensions

Width: 171.2 mm
Depth: 53 mm
Height: 210 mm
Weight: 1.63 kg

Certificates

Certification: CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 600

Logistics data

Harmonized System (HS) code: 85176990
