Description

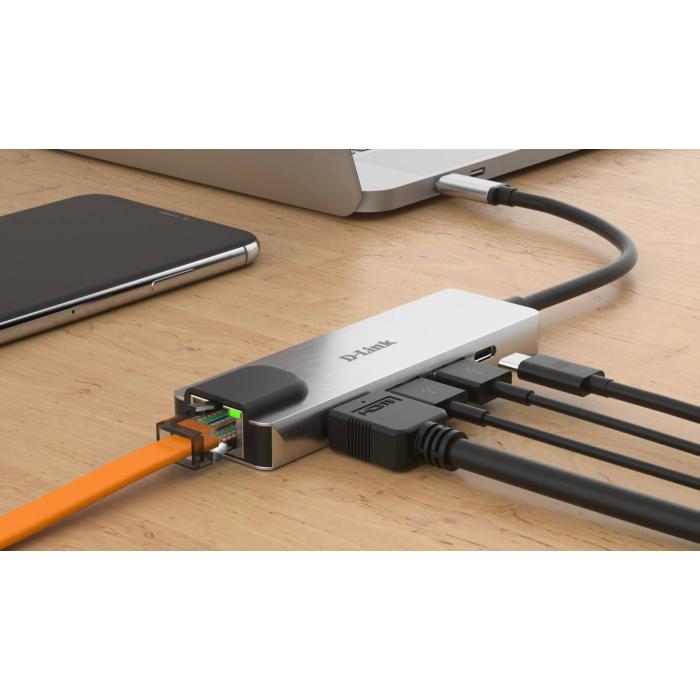

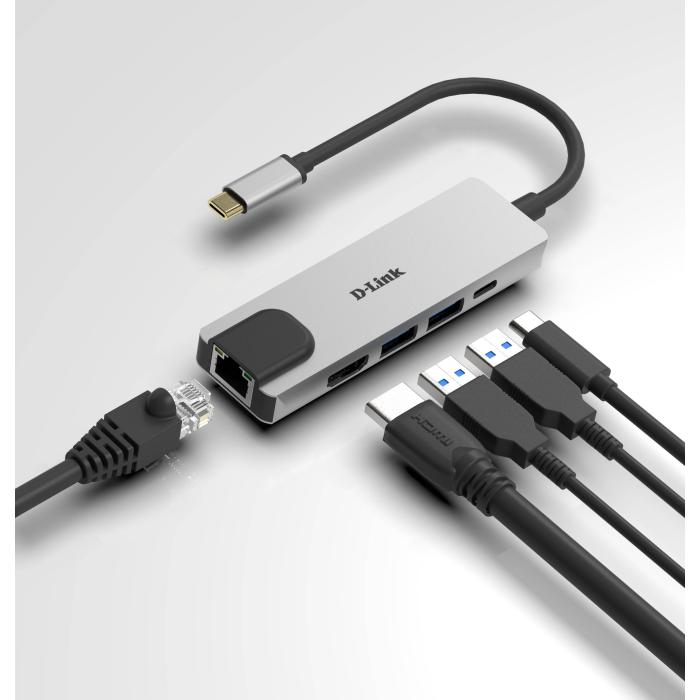

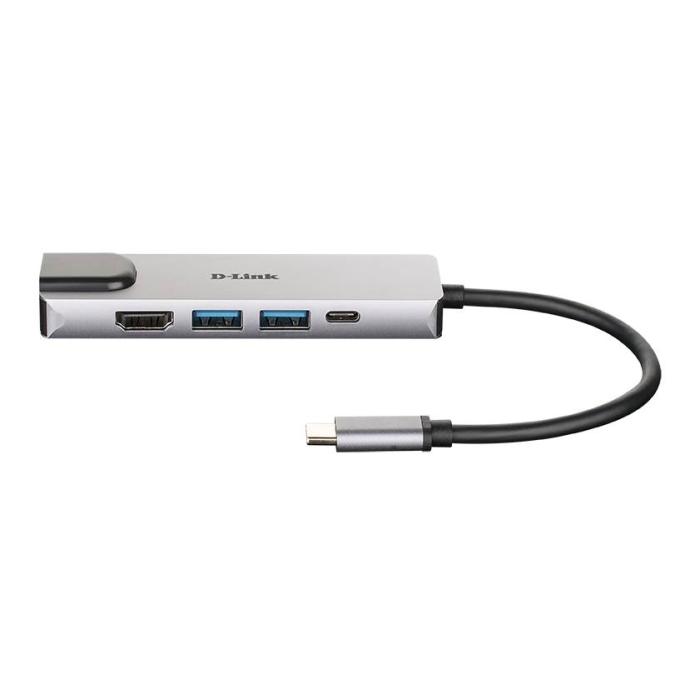

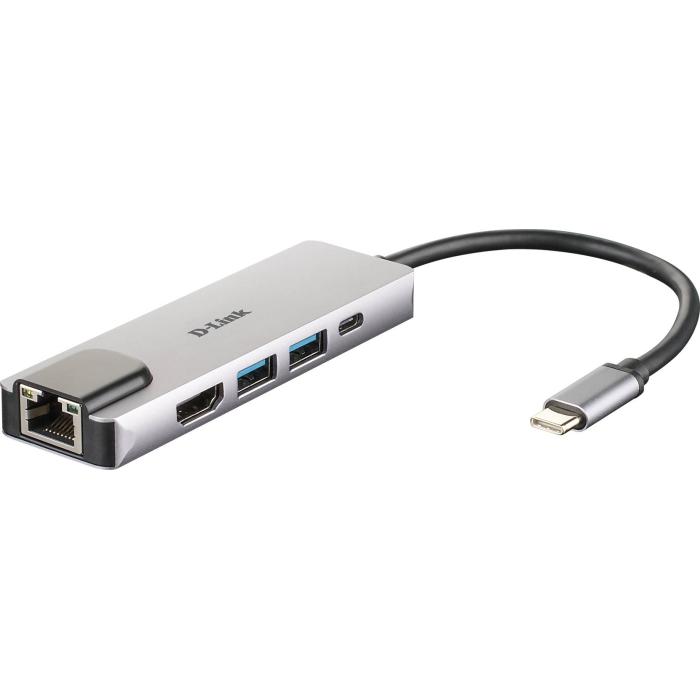

The D-Link DUB-M520 dock expands your laptop's connectivity via a Thunderbolt 3 host interface, with wired connection and a weight of 49 g. Its aluminium-coloured design, measuring 103 x 11 x 31 mm, is compact enough to carry with you. It features an HDMI 1.4 port with a maximum digital resolution of 4096 x 2160 pixels, plus two USB Type-A ports and one USB Type-C port, all USB 3.2 Gen 1. It offers USB power delivery of up to 60 W and USB power supply to power the device while you work. In terms of networking, it includes an RJ-45 Ethernet port with transfer speeds of 10, 100 and 1000 Mbit/s and compatibility with the IEEE 802.3, 802.3ab, 802.3az, 802.3u and 802.3x standards, with full bidirectional operation. Thanks to the Plug and Play function, simply connect it to start using it.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 60 W
- HDMI ports quantity: 1
- HDMI version: 1.4
- Microphone in: No
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Full duplex: Yes
Performance
- Card reader integrated: No
- HD type: 4K Ultra HD
- Maximum digital resolution: 4096 x 2160 pixels
- Product colour: Aluminium
- LED indicators: Yes
- Plug and Play: Yes
- Housing material: Aluminium
- Certification: CE, FCC, IC, RCM
Power
- Input current: 0.12 A
Software
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Other operating systems supported: ChromeOS
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -25 - 85 °C
- Operating relative humidity (H-H): 5 - 80%
- Storage relative humidity (H-H): 5 - 80%
Weight & dimensions
- Width: 103 mm
- Depth: 31 mm
- Height: 11 mm
- Weight: 49 g
Packaging data
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733020
