Description

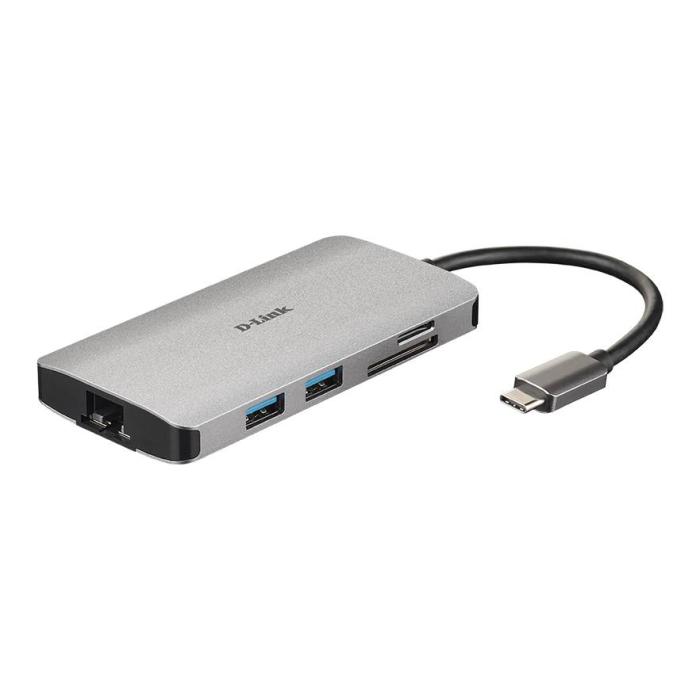

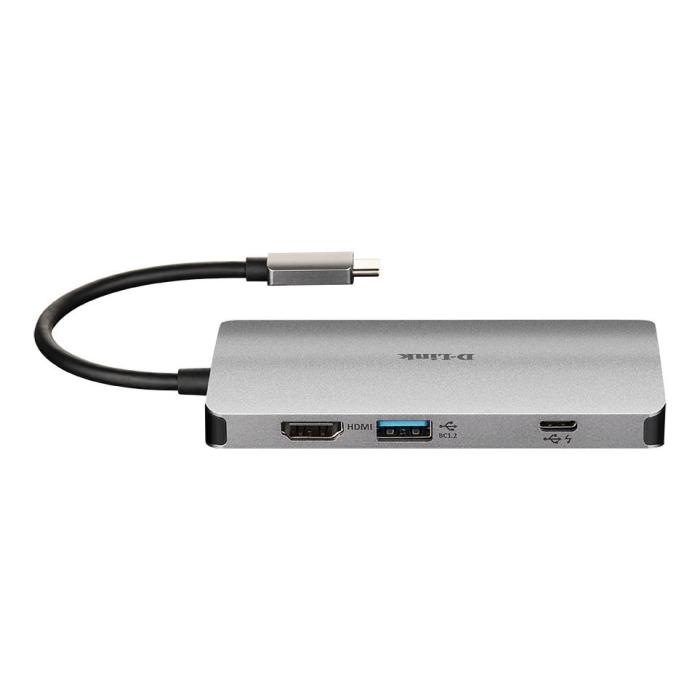

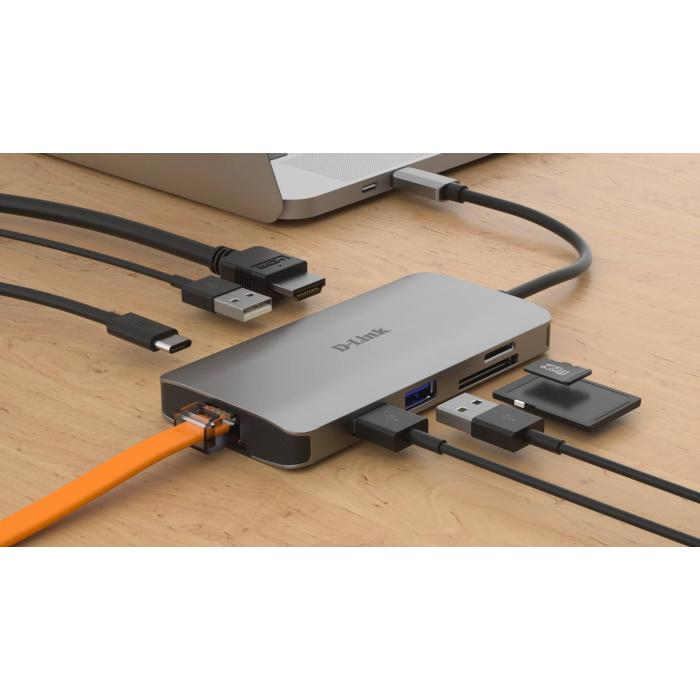

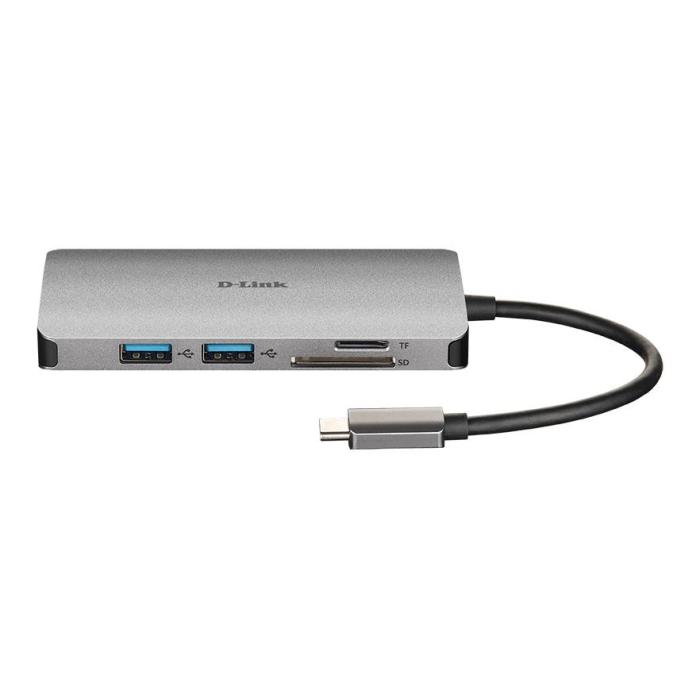

Connect your laptop to everything you need with the D-Link DUB-M810 port replicator, in aluminium colour and measuring 105 x 13 x 52 mm. It features a USB 3.2 Gen 1 Type-C host interface and wired connectivity technology, with a 0.15 m cable to link to the device. It includes an HDMI 1.4 port with HDCP 2.2 compatibility, three USB Type-A ports and one USB Type-C port, all of them USB 3.2 Gen 1, plus a Thunderbolt 3 port. Its Ethernet connection integrates an RJ-45 port and is compatible with the IEEE 802.3, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x standards to provide wired network access. The USB Power Delivery function reaches up to 100 W with revision 3.0, so you can power your laptop while using the peripherals. Weighing 82 g, it is comfortable to carry and its installation is Plug and Play, with no complicated configurations.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- HDMI version: 1.4
- Thunderbolt 3 ports quantity: 1
- Microphone in: No
- HDCP: Yes
- HDCP version: 2.2
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), SD, SDHC, SDXC
- Maximum digital resolution: 4096 x 2160 pixels
- Maximum refresh rate: 30 Hz
- Product colour: Aluminium
- Plug and Play: Yes
- Certification: CE, IC, FCC, RCM
Power
- AC input voltage: 20 V
- Input current: 0.08 A
Software
- Linux operating systems supported: Yes
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 105 mm
- Depth: 52 mm
- Height: 13 mm
- Weight: 82 g
Packaging data
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733020
Other features
- Cable length: 0.15 m
