Description

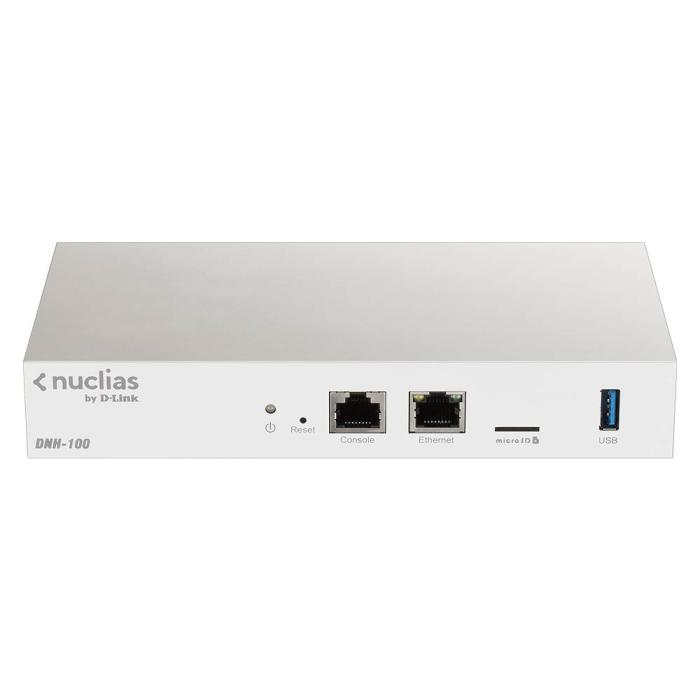

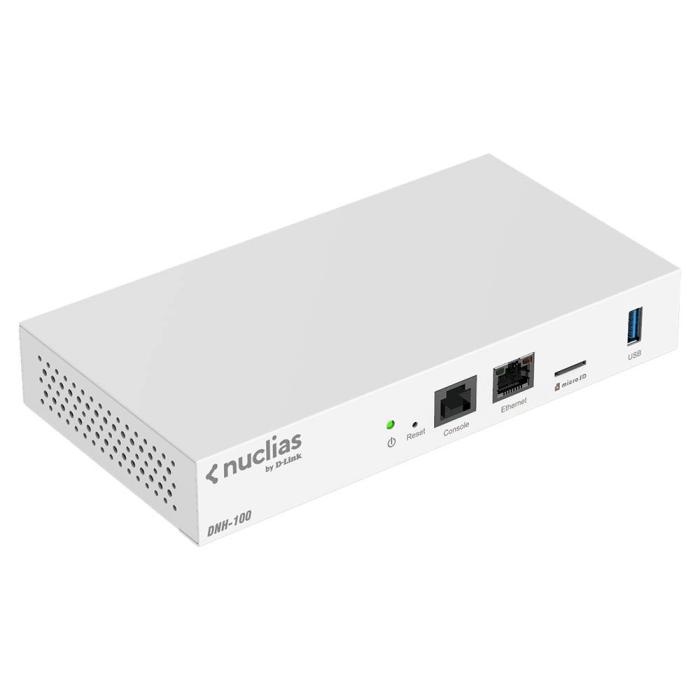

D-Link DNH-100 white network management device, measuring 190 x 31 x 100 mm and weighing 529 g. It features an RJ-45 Ethernet LAN port and supports data transfer speeds of 10, 100 and 1000 Mbit/s, with a firewall throughput of 100 Mbit/s. Its connectivity is wired and it complies with the network standards IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x. It manages up to 2 LAN access points and allows web-based administration, as well as rate limiting and VLAN support. In terms of security, it supports the WPA2 and WPA3 algorithms. It includes a USB 2.0 port, a power LED indicator and operates with an AC input voltage of 100 to 240 V at a frequency of 50 - 60 Hz, with an energy consumption of 6.5 W.
Specifications
Performance
- Firewall throughput: 100 Mbit/s
- Number of LAN Access Points (max): 2
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Management features
- Web-based management: Yes
- Rate limiting: Yes
- VLAN support: Yes
Security
- Security algorithms: WPA2, WPA3
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 1
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 6.5 W
- Power over Ethernet (PoE): No
Design
- Product colour: White
- Power LED: Yes
- LED indicators: Power
- Certification: FCC Class B, CE, C-Tick, VCCI, BSMI, cUL, CB, LVD (En60950-1)
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
Weight & dimensions
- Dimensions (WxDxH): 190 x 100 x 31 mm
- Weight: 529 g
- Width: 190 mm
- Depth: 100 mm
- Height: 31 mm
Packaging content
- Manual: Yes
- User guide: Yes
