Description

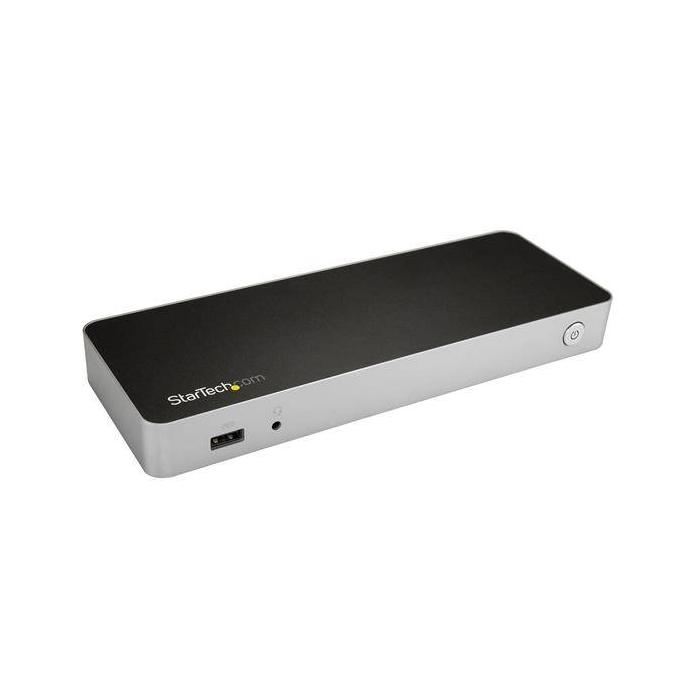

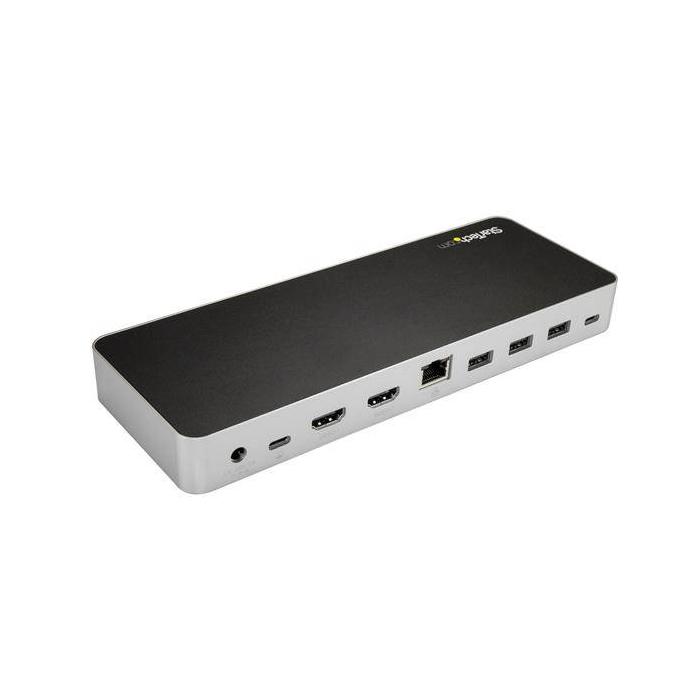

StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 60 W, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB Power Delivery (USB PD): Yes
  • USB Power Delivery revision: 2.0
  • USB Power Delivery up to: 60 W
  • HDMI ports quantity: 2
  • Combo headphone/mic port: Yes
  • Headphone outputs: 1
  • Headphone connectivity: 3.5 mm

Network


  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • Full duplex: Yes

Performance


  • Card reader integrated: No
  • Data transfer rate: 5 Gbit/s
  • Maximum digital resolution: 4096 x 2160 pixels
  • Product colour: Black, Silver
  • Plug and Play: Yes
  • UASP support: Yes
  • Housing material: Plastic

Power


  • Power source type: AC
  • AC input voltage: 100 - 240 V
  • Input current: 1.5 A
  • Output voltage: 20 V
  • Output current: 4.5 A
  • Power consumption (typical): 100 W
  • Power plug type: Type N
  • Compatible power plug types: EU, UK

Software


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W

Operational conditions


  • Operating temperature (T-T): 5 - 35 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 5 - 95%

Sustainability


  • Sustainability compliance: Yes

Weight & dimensions


  • Width: 80 mm
  • Depth: 220 mm
  • Height: 24 mm
  • Weight: 259 g

Packaging data


  • Package width: 157 mm
  • Package depth: 267 mm
  • Package height: 90 mm
  • Package weight: 1.5 kg

Packaging content


  • Cables included: USB Type-C
  • AC adapter included: Yes
  • Quick start guide: Yes

Technical details


  • Compliance certificates: CE, RoHS

Logistics data


  • Products per master (outer) case: 6 pc(s)
  • Master (outer) case width: 287 mm
  • Master (outer) case length: 337 mm
  • Master (outer) case height: 304 mm
  • Harmonized System (HS) code: 84733020

Other features


  • Chipset: VIA/VLI - VL813, MegaChips - STDP4320, Realtek - RTL8153, C-Media - CM6533, Texas Instruments - TPS65983
