Description

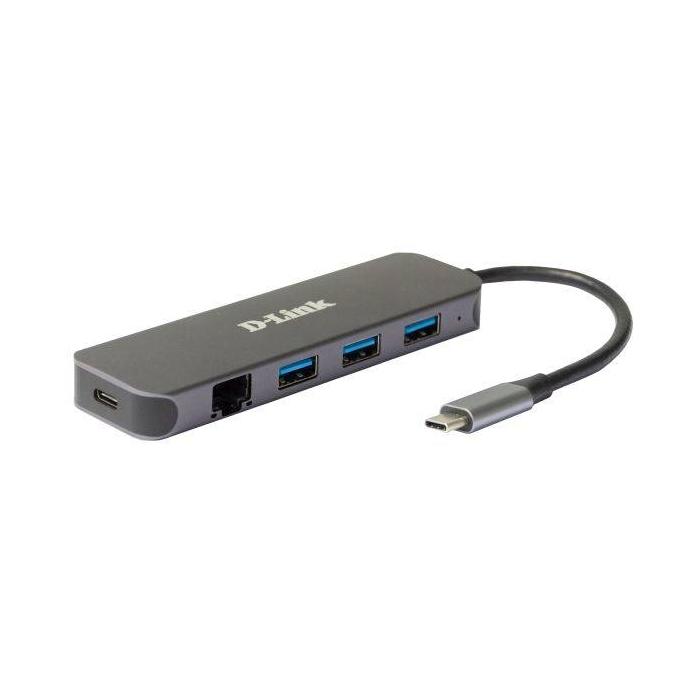

The D-Link DUB-2334 laptop dock and port replicator, in grey, expands your computer's connectivity through a single USB Type-C connection. It includes three USB Type-A ports and one USB Type-C port, all of them USB 3.2 Gen 1, for connecting peripherals and storage devices. Its Ethernet LAN with RJ-45 connector reaches transfer speeds of 10, 100 and 1000 Mbit/s and is compatible with the IEEE 802.3, IEEE 802.3ab and IEEE 802.3u standards, as well as 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling technologies. The USB Power Delivery 3.0 power delivery function supports up to 60 W, so you can keep your laptop charging while you work. Its compact design measures 118 x 33 x 13.5 mm and weighs 70 g. The link, power and speed LED indicators show you the connection status at all times. Thanks to the Plug and Play function, you just need to connect it to start using it.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 60 W
- Microphone in: No
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Wake-on-LAN ready: Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Performance
- Card reader integrated: No
- Data transfer rate: 5 Gbit/s
- Product colour: Grey
- Hub interfaces: RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C
- LED indicators: Link, Power, Speed
- Plug and Play: Yes
Power
- Output voltage: 20 V
- Output current: 3 A
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 85%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 118 mm
- Depth: 13.5 mm
- Height: 33 mm
- Weight: 70 g
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Quick start guide: Yes
Technical details
- Compliance certificates: CE
