Description

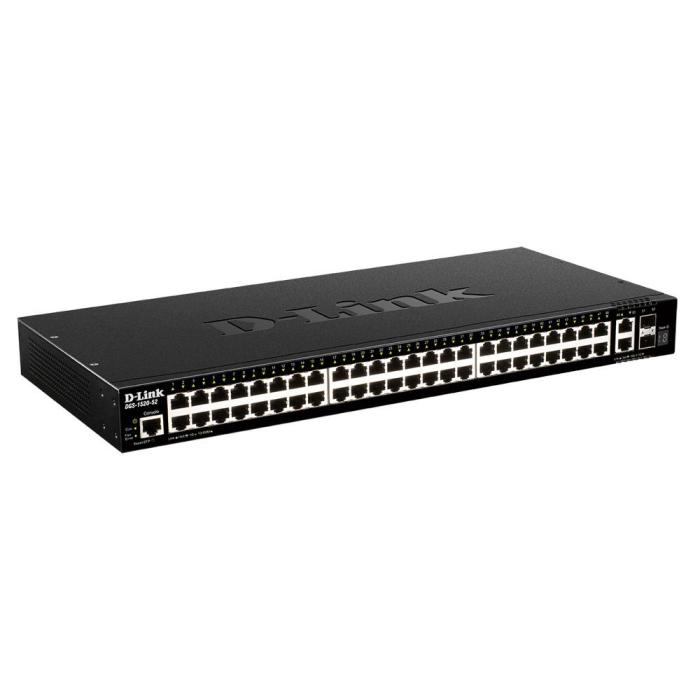

The D-Link DGS-1520-52 is a black L3 managed switch presented in a 1U format, with dimensions of 441 x 44 x 207.4 mm (width x height x depth) and a weight of 2.78 kg. It incorporates 48 copper Gigabit Ethernet ports and 50 basic RJ-45 Ethernet switching ports, of which 2 are copper 10G Ethernet ports. It also adds 2 SFP+ module slots with fibre optic connector and 2 fibre channel ports, designed to expand the network trunk link. It offers 10G support along with VLAN support, flow control and spanning tree protocol, which helps to keep traffic orderly on the network. Web-based management simplifies device configuration, and functions such as link aggregation, auto MDI/MDI-X and head-of-line (HOL) blocking make it easier to connect devices. Its copper Ethernet cabling technology covers 10BASE-T, 100BASE-FX, 100BASE-TX and 1000BASE-T.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 50
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- Gigabit Ethernet (copper) ports quantity: 48
- 10G Ethernet (copper) ports quantity: 2
- SFP+ module slots quantity: 2
- Fiber ports quantity: 2
- Fiber optic connector: SFP+
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 8
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 176 Gbit/s
- Forwarding rate: 130.95 Mpps
- MAC address table: 16384 entries
- Store-and-forward: Yes
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 12288
Security
- DHCP features: DHCP snooping
- IGMP snooping: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- MAC address entries: Static MAC address entries
Multicast features
- Multicast Listener Discovery (MLD) snooping: v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
- Routing protocols: OSPF, RIP, RIPng, VRRP
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Activity, Link, Power, Speed
Performance
- Physical stacking (units): 8
- Virtual stacking (units): 32
- Noise level: 56.8 dB
- Mean time between failures (MTBF): 364888 h
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- Power consumption (max): 51.2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 174.6 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 207.4 mm
- Height: 44 mm
- Weight: 2.78 kg
Certificates
- Certification: CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A
Logistics data
- Harmonized System (HS) code: 85176990
