Description

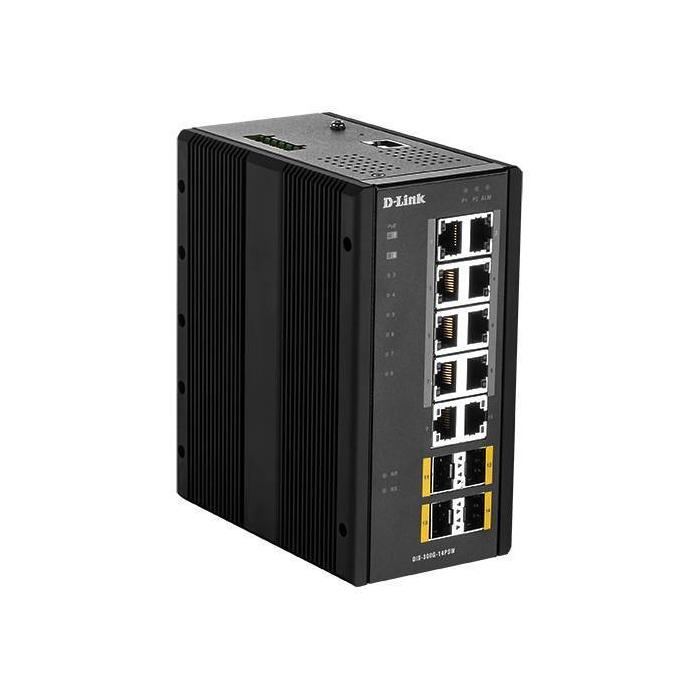

The D-Link DIS‑300G‑14PSW managed switch is an L2 layer network device with 10 Gigabit Ethernet ports (10/100/1000) and 4 slots for SFP modules, with LC fibre optic connector. Its management is carried out via web and it supports traffic classification, quality of service (QoS) and event logging in the system, as well as MIB support in accordance with RFC 1757 RMON 1,2,3,9, RFC 2674 Q MIB, RFC‑1213 MIB‑II, RFC‑1493 MIB and RFC 2233 IF MIB. It incorporates auto MDI/MDI-X and auto-negotiation, link aggregation, full duplex operation, spanning tree protocol and storm transmission control. It has a compact format with dimensions of 71 x 128 x 154 mm (width x height x depth) and a weight of 1.41 kg, in black.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic shaping: Yes
- System event log: Yes
- MIB support: RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
- Fiber optic connector: LC
Network
- Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 8
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN, Protocol-based VLAN, Interface-based VLAN, Port-based VLAN, IP subnet–based VLAN
- Number of VLANs: 1024
Data transmission
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- DHCP features: DHCP server, DHCP snooping, DHCP relay, DHCP client
- Security algorithms: HTTPS, SNMP, SNMPv3, SSH
- Authentication type: IEEE 802.1x, RADIUS
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Alarm, LAN, PoE, Status
- International Protection (IP) code: IP30
- Wall mountable: Yes

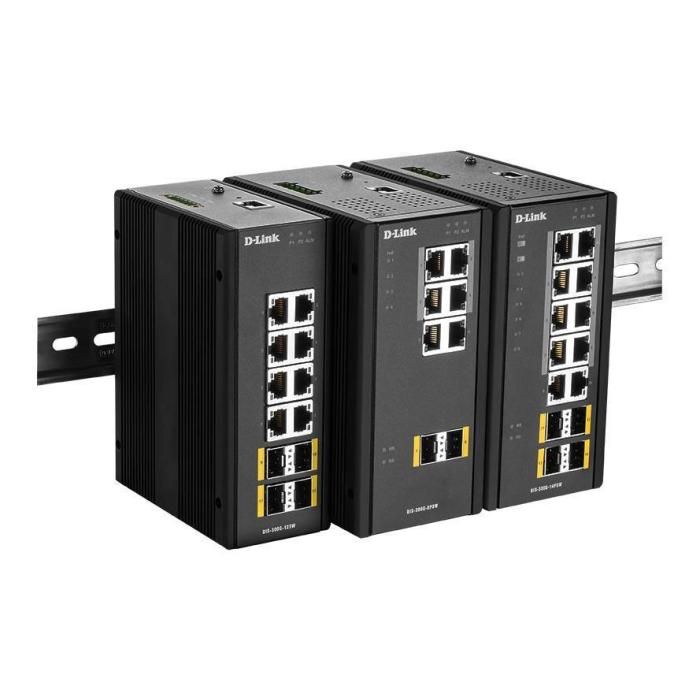

- DIN rail mounting: Yes
- Electromagnetic compatibility: FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Performance
- Firmware upgradeable: Yes
Power
- DC input voltage: 48 - 58 V
- Power consumption (typical): 14 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) voltage range: 54 - 58 V
- Power over Ethernet (PoE) power per port: 60 W
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 71 mm
- Depth: 154 mm
- Height: 128 mm
- Weight: 1.41 kg
Packaging data
- Package width: 195 mm
- Package depth: 242 mm
- Package height: 138 mm
- Package weight: 1.86 kg
Technical details
- Shipping (inner) case height: 27 cm
- Shipping (inner) case width: 40.5 cm
- Shipping (inner) case length: 69.5 cm
- Shipping (inner) case net weight: 18.6 kg
- Products per shipping (inner) case: 10 pc(s)
- Pallet gross weight (air): 415.6 kg
- Master (outer) cases per pallet (air): 20 pc(s)
- Products per pallet (air): 200 pc(s)
- Pallet gross length: 120 cm
- Pallet gross width: 110 cm
- Pallet height (air): 148.5 cm
- Pallet gross weight (sea): 575 kg
- Master (outer) cases per pallet (sea): 28 pc(s)
- Products per pallet (sea): 280 pc(s)
- Pallet height (sea): 2.02 m
- Shipping (inner) case gross weight: 19.9 kg
Certificates
- Certification: IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
Logistics data
- Harmonized System (HS) code: 85176990
