Description

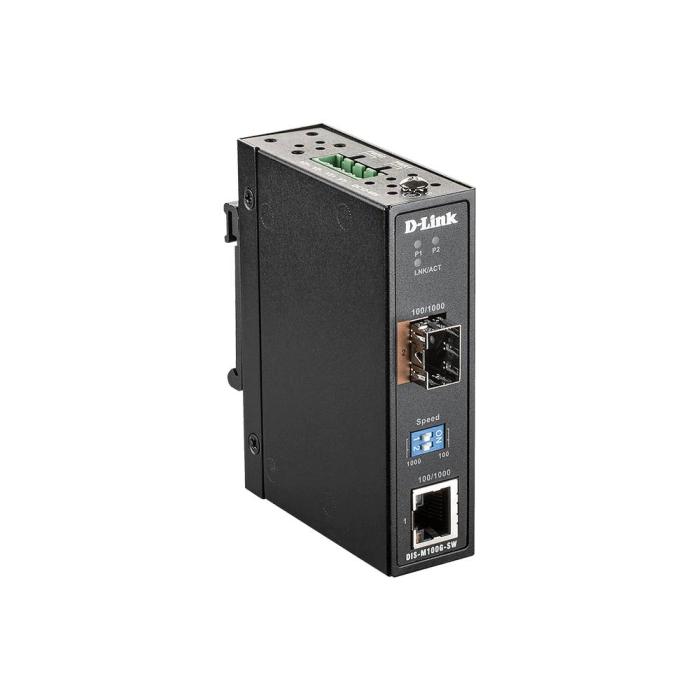

D-Link DIS-M100G-SW media converter in black that connects Gigabit Ethernet networks via multimode or single-mode fibre, with one SFP port and a transfer speed of up to 4000 Mbit/s. This device supports IEEE 802.3ab, 802.3u, 802.3x and 802.3z standards, with auto-negotiation and auto MDI/MDI-X to simplify installation, as well as plug-and-play operation. With link and network LED indicators, an IP30-protected housing and a DC input for power supply, it offers full or half duplex transmission. Designed for demanding network environments, it guarantees easy integration into existing infrastructures.
Specifications
Network
- Maximum data transfer rate: 4000 Mbit/s
- Converter input interface: 100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X
- Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Packet forwarding rate (100 Mbps): 2.976 pps
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
Performance
- Fiber mode structure: Multi-mode, Single-mode
Features
- Internal: No
- Plug and Play: Yes
- LED indicators: Link, Network
- Product colour: Black
- International Protection (IP) code: IP30
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SFP
- DC-in jack: Yes
Power
- Output voltage: 12 - 48 V
- Power consumption (typical): 3.6 W
Weight & dimensions
- Width: 70 mm
- Depth: 95 mm
- Height: 26.1 mm
- Weight: 190 g
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
