Description

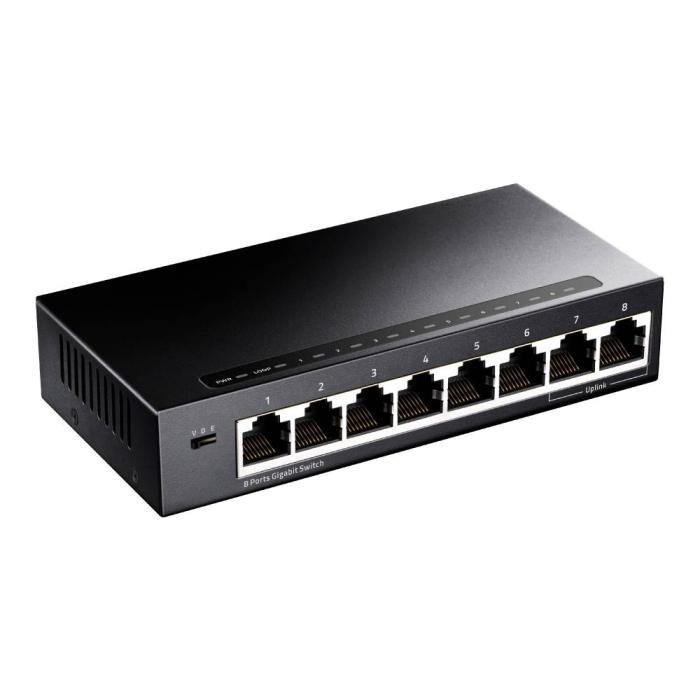

Connect up to eight devices with the Cudy GS108 switch, a Gigabit Ethernet model in black with RJ-45 ports at 10/100/1000 Mbps. Its switching capacity reaches 16 Gbit/s and manages a MAC address table of 1000 entries, with support for jumbo frames. It supports auto-negotiation, auto MDI/MDI-X and flow control, along with VLAN for network segmentation. It features half-duplex and full-duplex transmission, as well as auto-learning and auto-aging of addresses; it complies with the IEEE 802.3, 802.3ab, 802.3u and 802.3x standards, operating in store-and-forward mode with a throughput of 11.9 Mpps.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX
- Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Throughput: 11.9 Mpps
- MAC address table: 1000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 2000
- Packet buffer memory: 2.5 MB
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Loop, Link, Power
Performance
- Mean time between failures (MTBF): 100000 h
Power
- Power source: AC/DC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- DC input voltage: 5 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -10 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Operating altitude: 0 - 3048 m
Weight & dimensions
- Width: 137 mm
- Depth: 77 mm
- Height: 25 mm
- Weight: 300 g

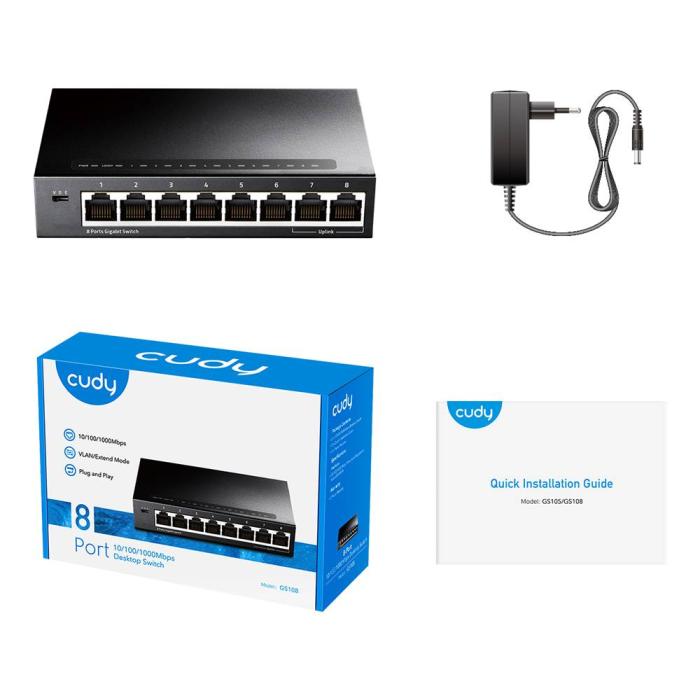

Packaging content
- Cables included: DC
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 175 mm
- Package depth: 120 mm
- Package height: 63 mm
- Package weight: 500 g
Logistics data
- Master (outer) case width: 505 mm
- Master (outer) case length: 320 mm
- Master (outer) case height: 400 mm
- Master (outer) case gross weight: 21 kg
- Products per master (outer) case: 40 pc(s)
