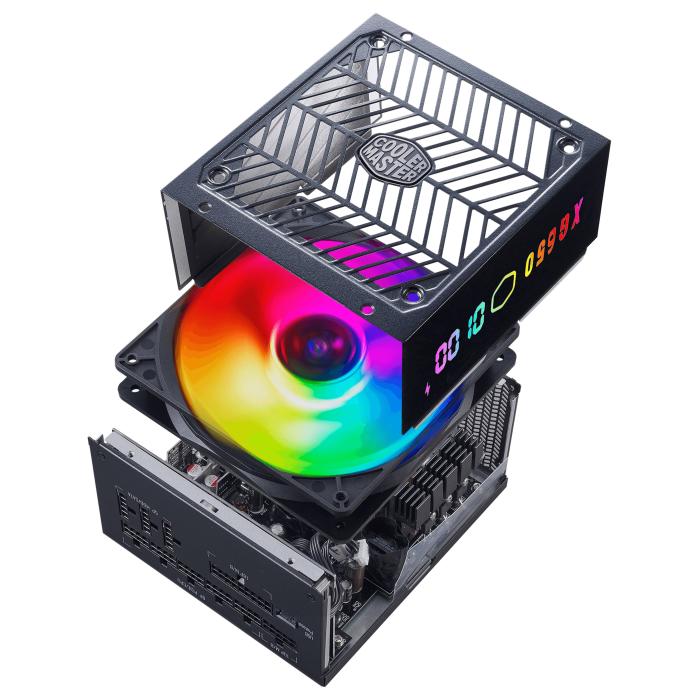

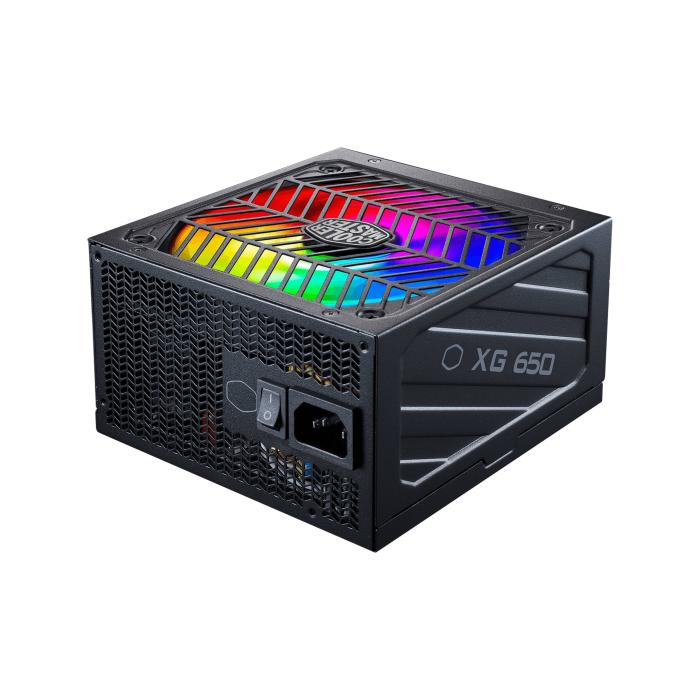

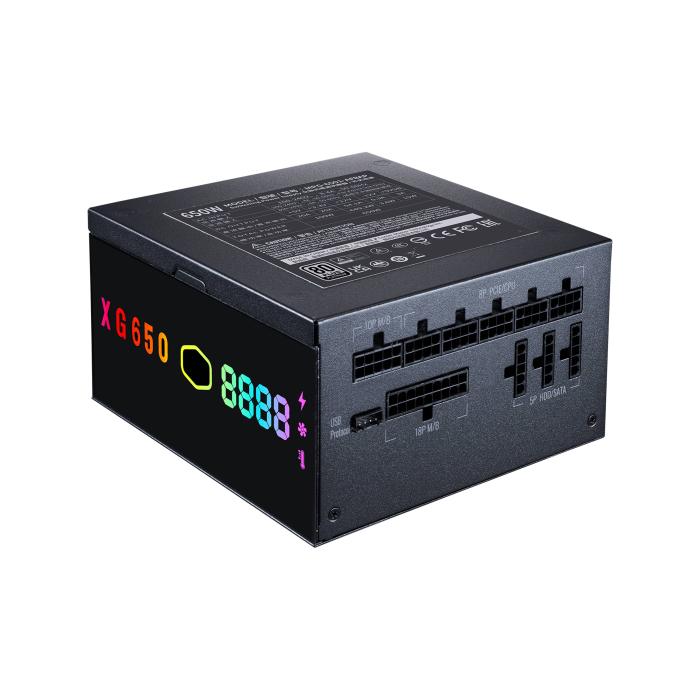

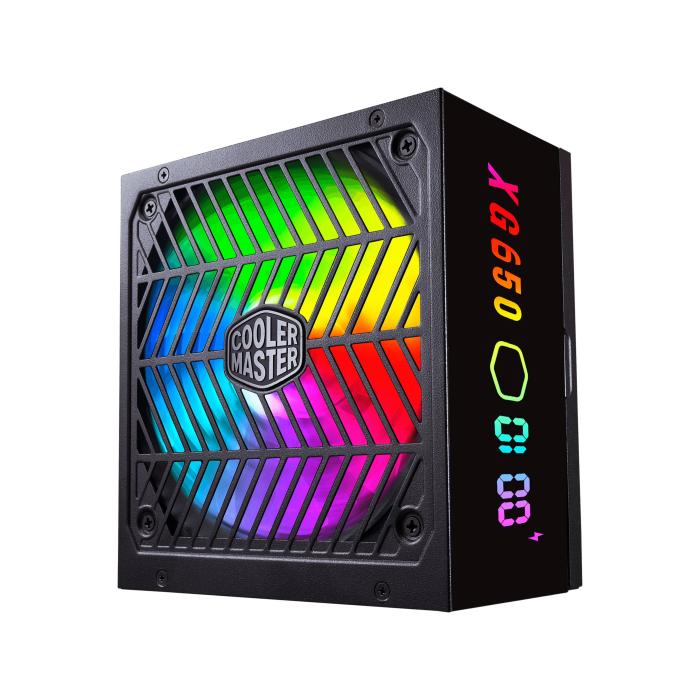

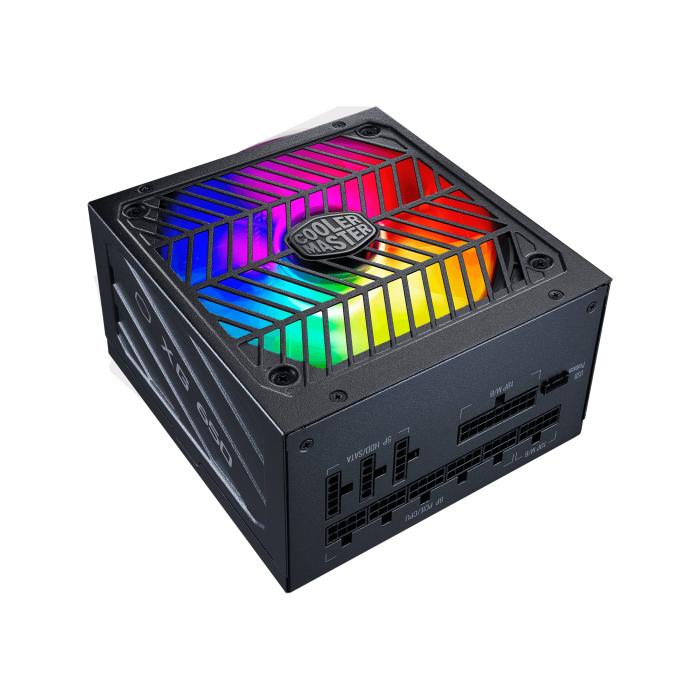

Cooler Master XG650 power supply unit 650 W 24-pin ATX ATX Black

$103.78

$103.78 without VAT

Amount

Brand: COOLER MASTER

SKU: 97005 PRC: 401938 EAN: 4719512112373 PN: mpg-6501-afbap-xeu

Description

Specifications

Power

Input current: 4 - 8 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 650 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54.1 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 92%
Power Good signal delay range: 100 - 500 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power: 650 W

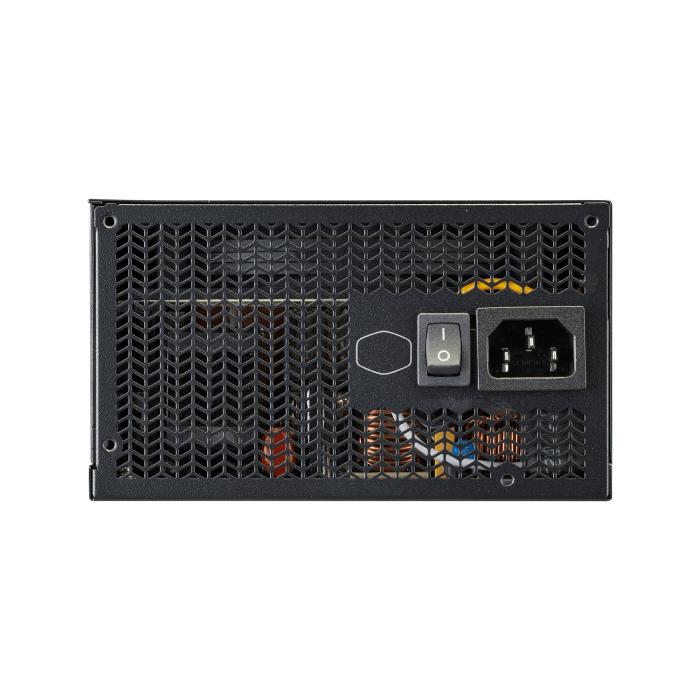

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Ports & interfaces

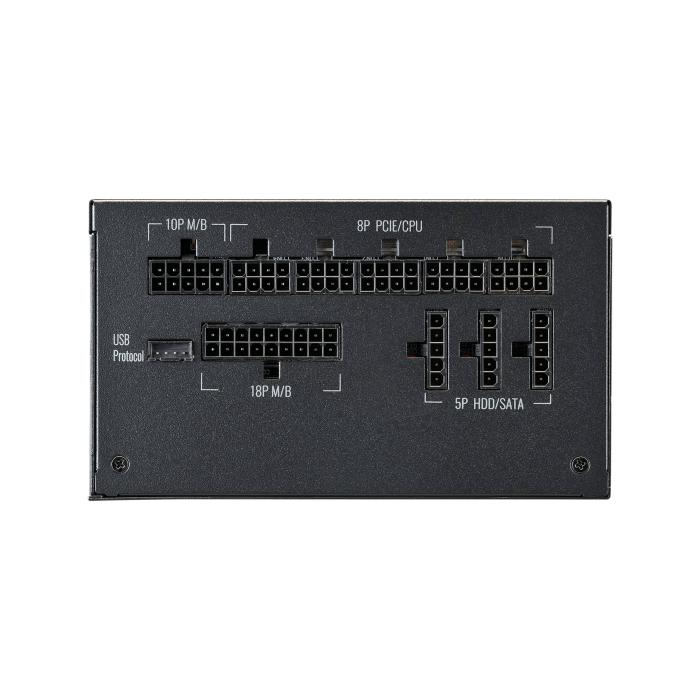

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 8
SATA power cable length: 500, 620, 740, 860 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 860, 740, 620, 500 mm
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 67 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.53
Noise level: 25 dB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active

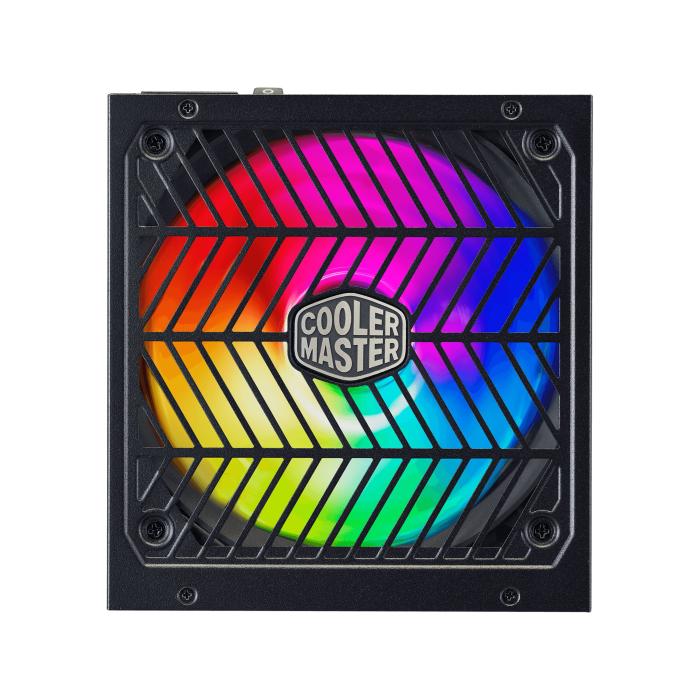

Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 1800 RPM

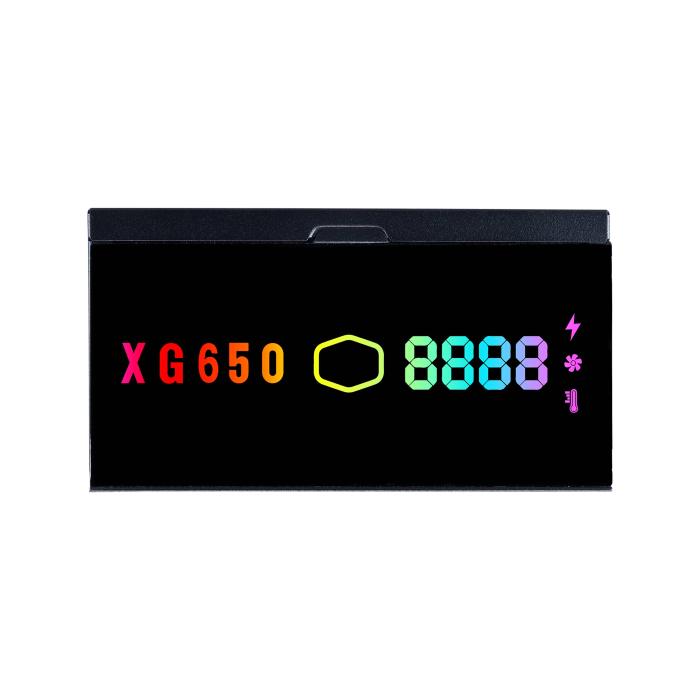

Illumination: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Certification: ErP 2014 Lot 3, TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm

Packaging data

Package width: 214 mm
Package depth: 125 mm
Package height: 300 mm

Logistics data

Master (outer) case width: 318 mm
Master (outer) case length: 250 mm
Master (outer) case height: 520 mm
Products per master (outer) case: 4 pc(s)

Other features

EPS cable length: 65 cm
Illumination colour: Multi
