Description
The COUGAR ATLAS 650W is a 650 W black ATX power supply unit with a 24-pin motherboard power connector. It supports an input voltage of 100 to 240 V with a frequency of 50/60 Hz, and its power factor correction is active. It distributes power with a maximum current of 54.1 A on the +12 V rail, which totals 649.2 W, plus 20 A on +3.3 V and 20 A on +5 V. It features six SATA power connectors to power your drives and units. It has protection functions against overcurrent, overvoltage, overvoltage, overheating and short circuit.
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10-6 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 130 W
- Combined power (+12V): 649.2 W
- Combined power (+5V): 130 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 54.1 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under total voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Number of SATA power connectors: 6
- SATA power cable length: 150, 450 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power connectors (12+4 pin): 1
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
Design
- Product colour: Black
- Cooling type: Active

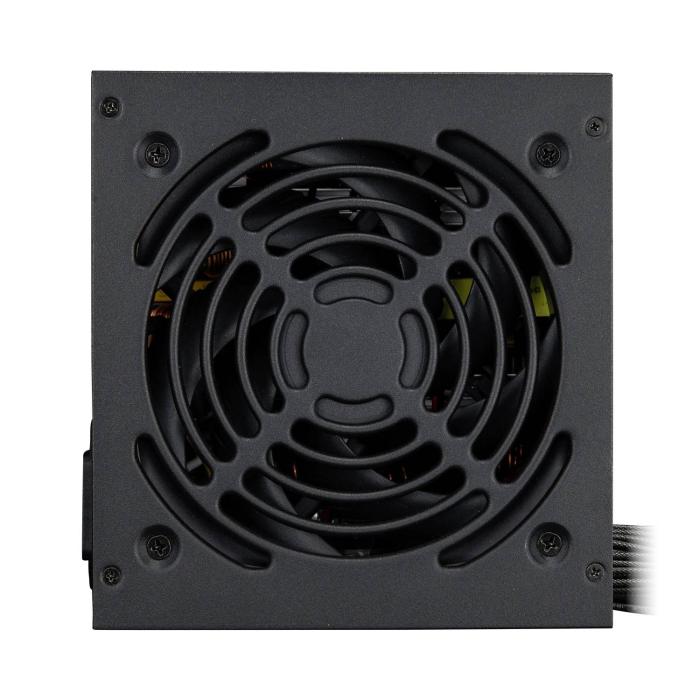

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Certificates
- Certification: CE, FCC, RoHS
Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.8 kg
Packaging data
- Package width: 187 mm
- Package depth: 158 mm
- Package height: 165 mm
- Package weight: 2.05 kg
