Cooler Master GX II Gold 850 ATX 3.1

Name: Cooler Master GX II Gold 850 ATX 3.1
Brand: COOLER MASTER
SKU: 618201
Price: 107 EUR
Availability: OutOfStock

More info

Brand: COOLER MASTER

107.00 €

Stock available: 0 units.

Unavailable

SKU: 117652 PRC: 618201 EAN: 4719512150832 PN: mpx-8503-afag-2ebeu

Description

Cooler Master GX II Gold 850 ATX 3.1 power supply in black, with 850 W total power and a 24-pin main connector compatible with the ATX 3.1 standard. It offers 90% efficiency and an active power factor, with complete protections including overcurrent, overvoltage, overtemperature, short circuit, overvoltage and undervoltage to safeguard components. Its +12 V rail delivers up to 70.8 A, with a combined power of 849.6 W, while the +5 V and +3.3 V rails each provide 120 W, supporting demanding loads. With AC input of 100-240 V and a frequency of 50/60 Hz, it adapts to different electrical networks, and its 16 ms hold-up time ensures reliable response during power transitions.

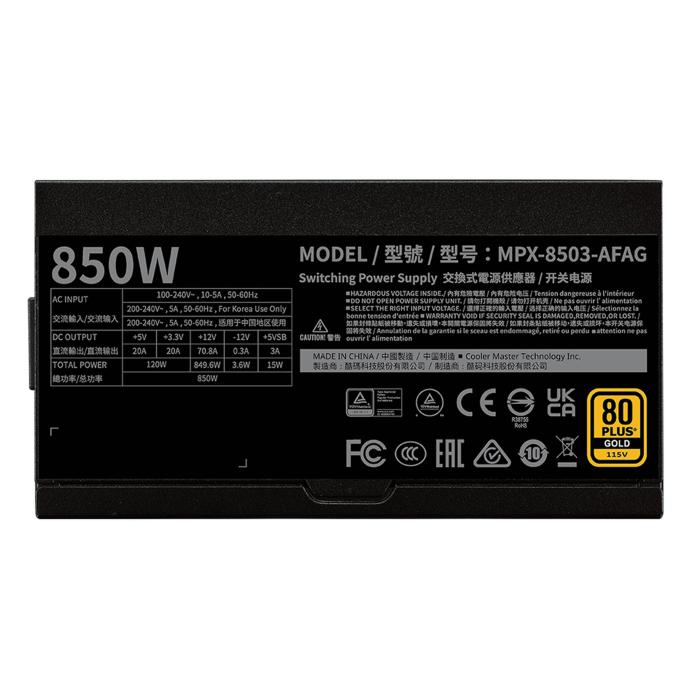

Specifications

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 5 - 10 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 849.6 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage

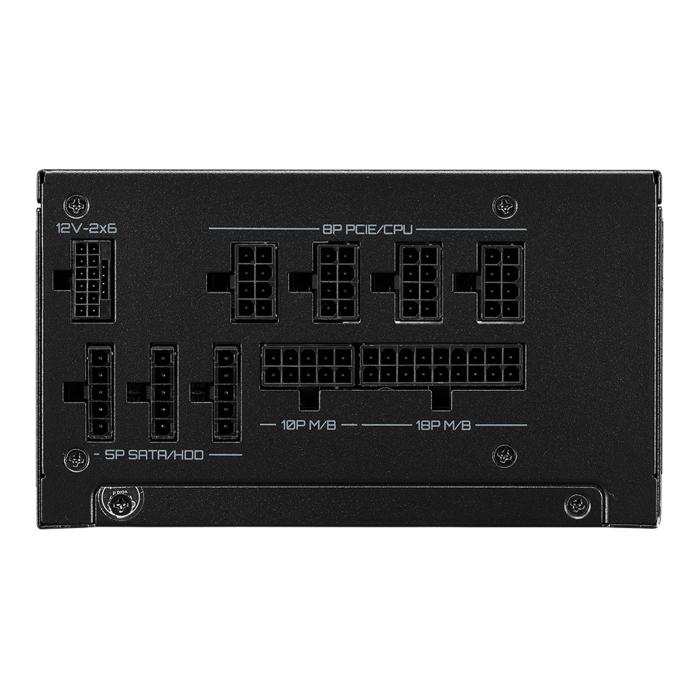

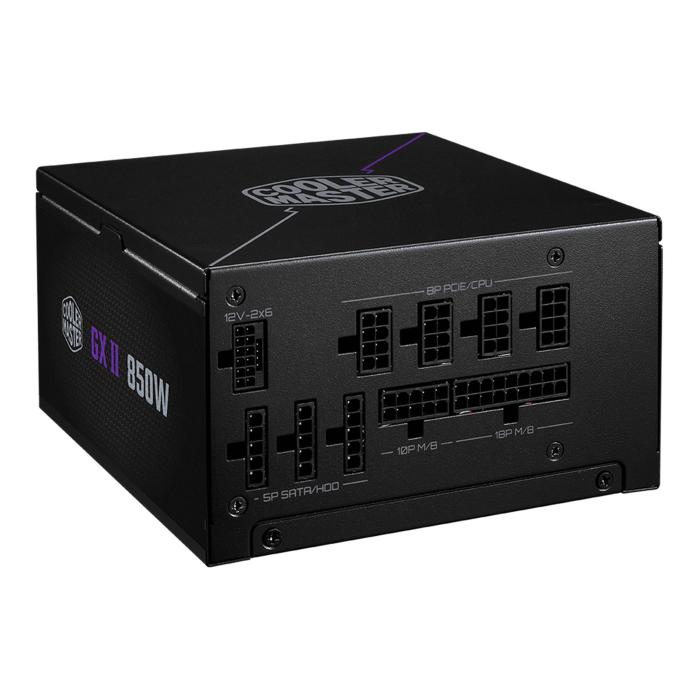

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 500, 620, 740, 860 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 740, 620, 500, 860 mm
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 650 mm
PCI Express power cable length: 62 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2500 RPM

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Compliance certificates: BIS, BSMI, CCC, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, UKCA, cTU
Certification: ErP 2014 Lot 3
