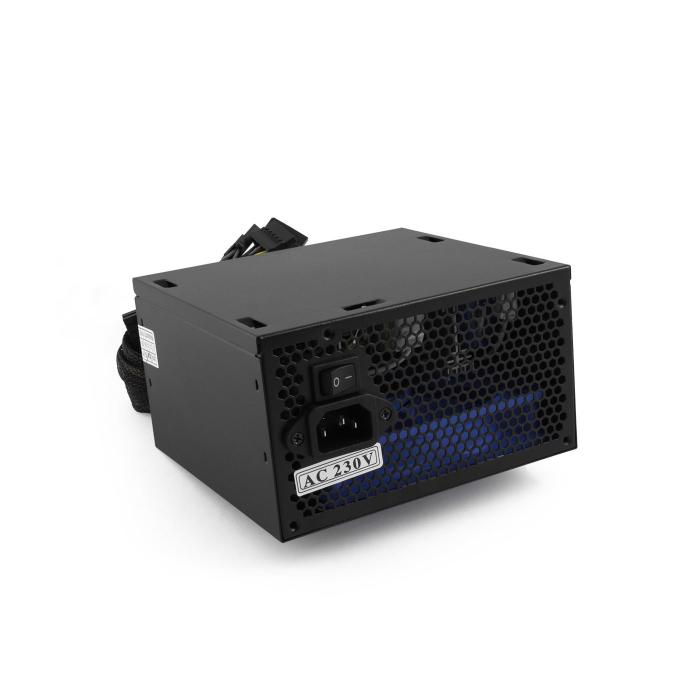

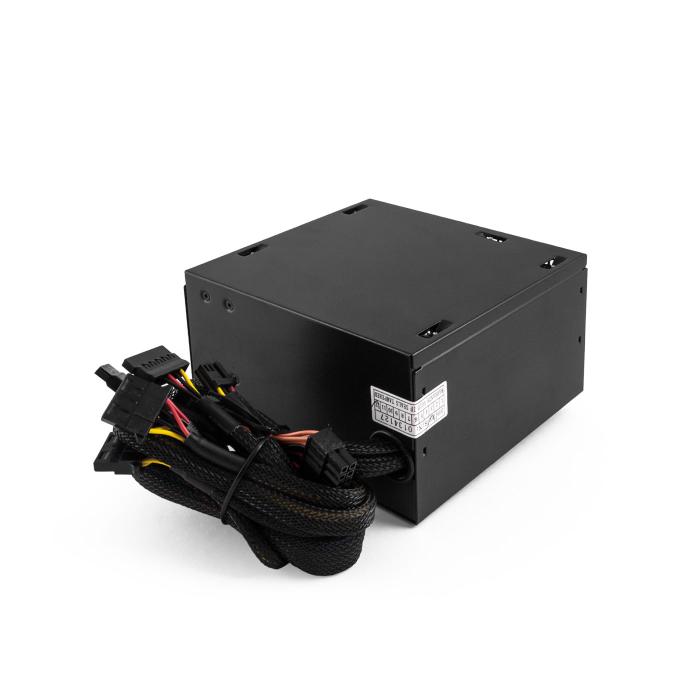

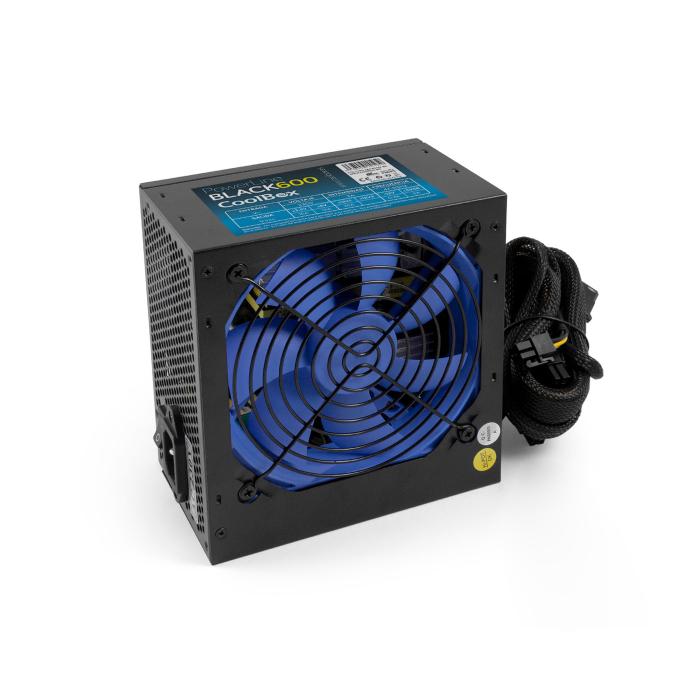

CoolBox Powerline Black 600 power supply unit 600 W 20+4 pin ATX ATX

Product 1 image

Product 2 image

Product 3 image

CoolBox Powerline Black 600 power supply unit 600 W 20+4 pin ATX ATX

Not avaliable

Amount

Brand: COOLBOX

SKU: 75863 PRC: 94617 EAN: 8436556141959 PN: COO-FAPW600-BK

Description

Specifications

Power

Total power: 600 W
AC input voltage: 220 V
AC input frequency: 47 - 63 Hz
Input current: 4 A
Power Factor Correction (PFC) type: Passive
Max output current (+3.3V): 20 A
Max output current (+12V1): 35 A
Max output current (+5V): 24 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Hold time: 16 ms

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6-pin): 1
CPU P4 connector (4-pin): 1
ATX power connector (20+4 pin): Yes
Floppy disk drive connector: Yes
PCI Express connector: Yes
Cabling type: Non-Modular

Performance

Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Illumination: Yes

Certificates

Compliance certificates: RoHS
Certification: CE, EMI

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm

Packaging data

Package type: Box

Other features

Illumination colour: Blue
