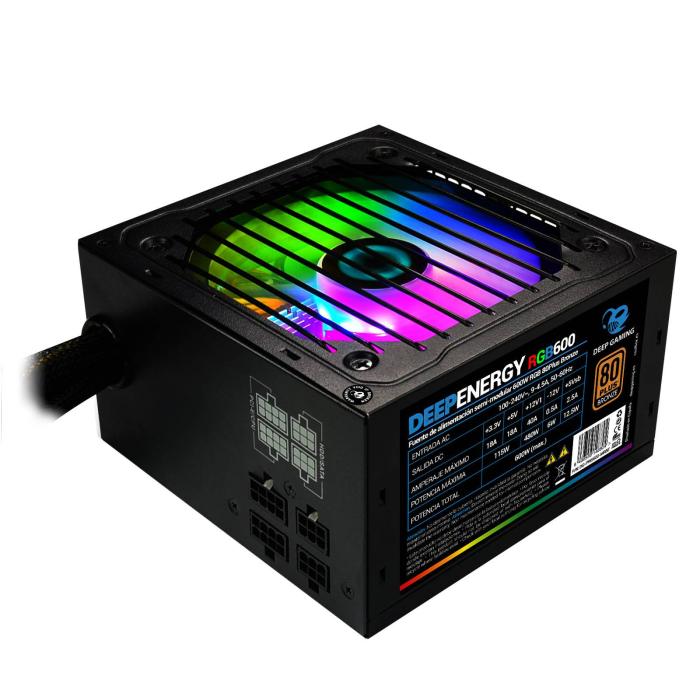

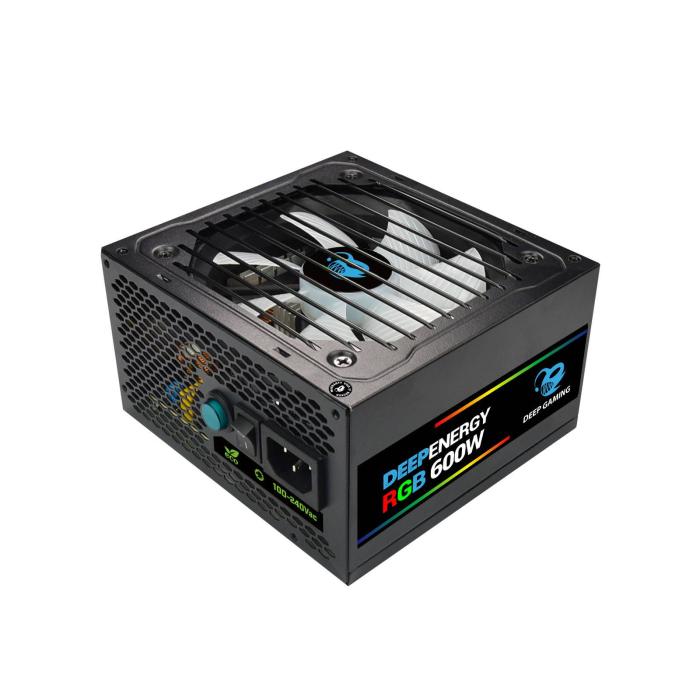

CoolBox DeepEnergy RGB600 power supply unit 600 W ATX Black

Not avaliable

CoolBox DeepEnergy RGB600, 600 W, 100 - 240 V, 50/60 Hz, 4.5 - 9 A, Active, 115 W.   More info

Brand: COOLBOX
SKU: 83130 PRC: 266519 EAN: 8436556148804 PN: DG-PWS600-MRBZ

Description

CoolBox DeepEnergy RGB600, 600 W, 100 - 240 V, 50/60 Hz, 4.5 - 9 A, Active, 115 W

Specifications

Power

  • Total power: 600 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 4.5 - 9 A
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 115 W
  • Combined power (+5V): 115 W
  • Combined power (-12V): 6 W
  • Combined power (+5Vsb): 12.5 W
  • Max output current (+3.3V): 18 A
  • Max output current (+12V1): 40 A
  • Max output current (+5V): 18 A
  • Max output current (-12V): 0.5 A
  • Max output current (+5Vsb): 2.5 A
  • Efficiency: 81%
  • Power Good signal delay range: 100 - 500 ms
  • Power protection features: Over current,Over power,Over voltage,Overheating,Overload,Short circuit,Under voltage

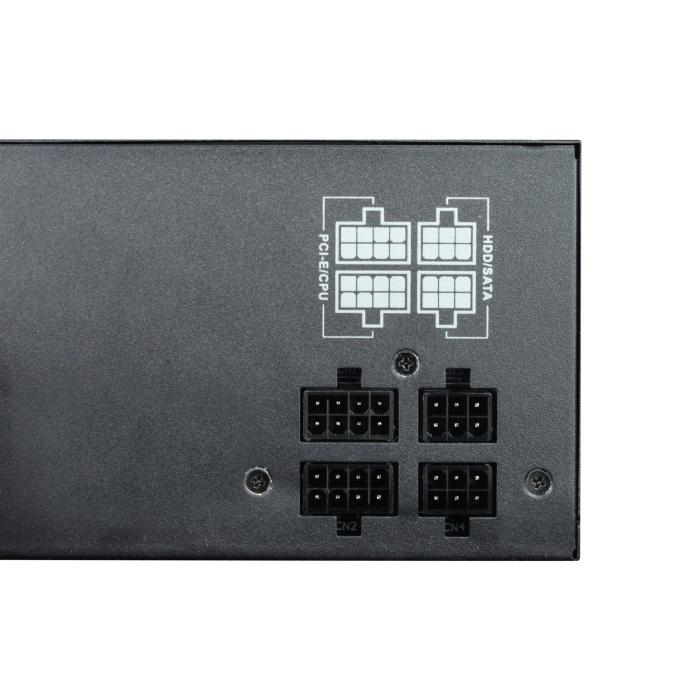

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 50 cm
  • Number of SATA power connectors: 5
  • Peripheral (Molex) power connectors (4-pin): 3
  • PCI Express power connectors (6+2 pin): 1
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 60 cm

Performance

  • 80 PLUS certification: 80 PLUS Bronze
  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.31
  • Noise level: 32 dB
  • Mean time between failures (MTBF): 100000 h

Design

  • Product colour: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)
  • Illumination: Yes
  • Illumination colour: Multi

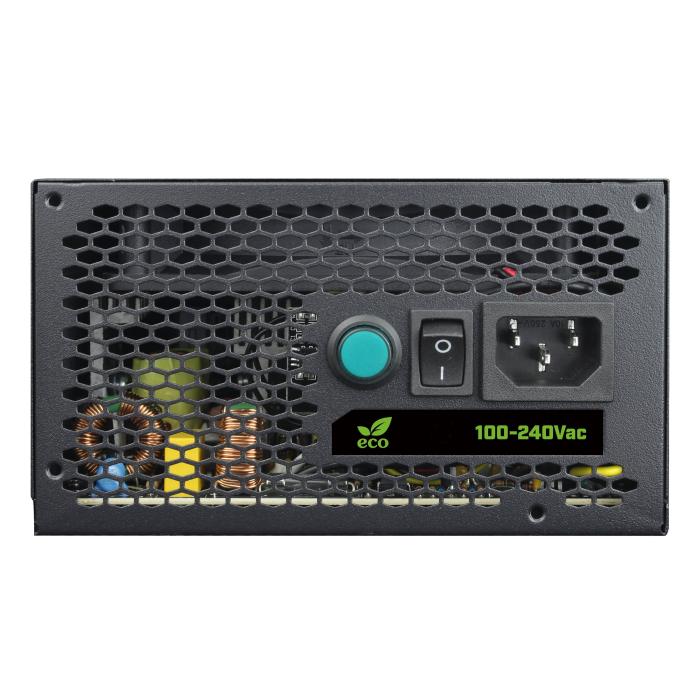

  • On/off switch: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

  • Width: 140 mm
  • Depth: 86 mm
  • Height: 150 mm
  • Weight: 1.7 kg

Packaging data

  • Cables included: AC
