Description

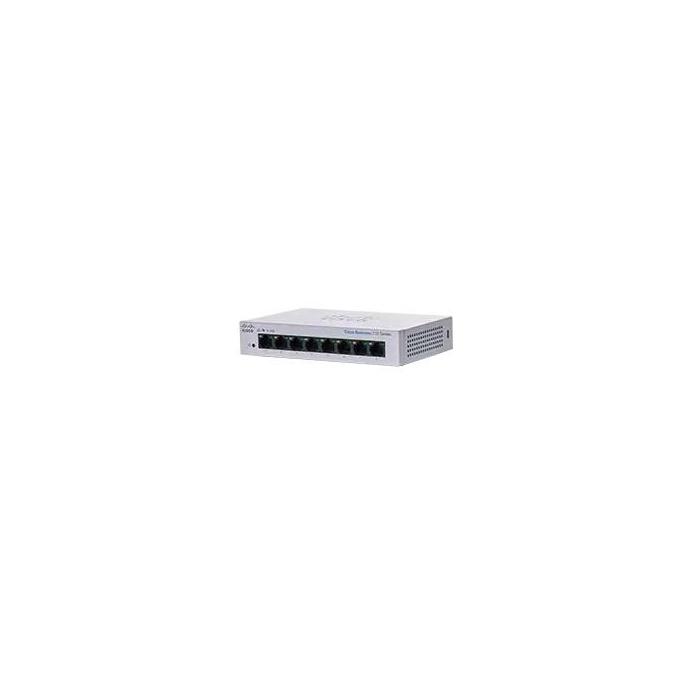

Connect up to eight Gigabit Ethernet devices with the Cisco CBS110 Layer 2 switch, an unmanaged model in grey designed for home networks or small offices seeking simplicity. Its eight RJ-45 ports offer speeds of 10, 100 and 1000 Mbit/s, with support for flow control, auto MDI/MDI-X and full-duplex transmission for stable data transfer. This equipment automatically manages traffic with QoS priorities across four queues and a MAC address table of 8192 entries, achieving a forwarding rate of 11.9 Mpps. It complies with standards such as IEEE 802.3, 802.3ab and 802.3az, ensuring compatibility and efficiency in connecting computers, printers or storage devices.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 8192 entries
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Design
- Rack mounting: No
- Product colour: Grey
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 2066844 h
Power
- Power supply included: Yes
- Redundant power supply (RPS) support: No
- Number of power supply units: 1
- DC input voltage: 12 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 14.09 BTU/h
Weight & dimensions
- Width: 160 mm
- Depth: 104 mm
- Height: 30 mm
- Weight: 430 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Logistics data
- Harmonized System (HS) code: 85176990
