Description

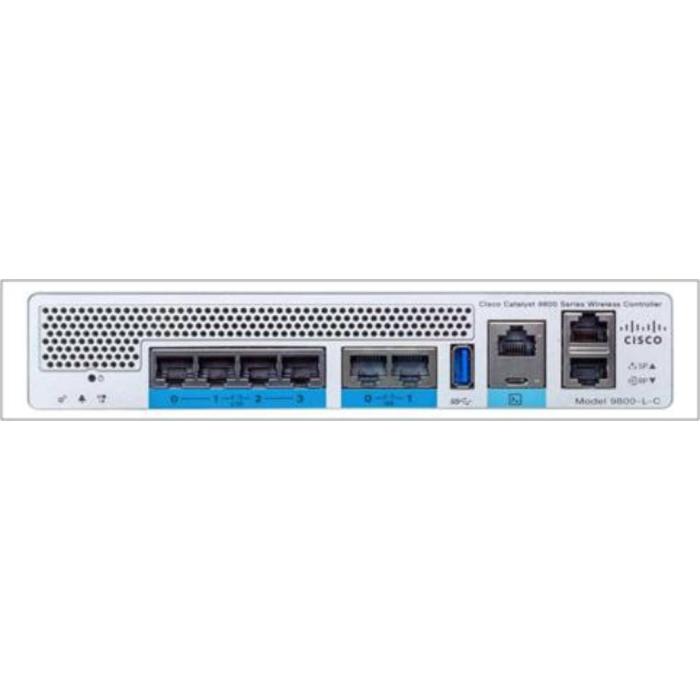

Cisco Catalyst 9800-L-C gateway and controller in grey, supporting LAN Ethernet speeds of 10, 100, 1000 and 10000 Mbit/s via its 8 RJ-45 ports, plus integrated WiFi connectivity. It includes LED indicators and an RJ-45 console port, offering web-based management, quality of service (QoS) support and Syslog. In terms of security, it supports algorithms such as AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP and WPA2, along with VLAN support. With dimensions of 215.9 mm in width, 230.1 mm in depth and 40.2 mm in height, it weighs 1.79 kg and operates in relative humidity ranges of 10 to 95% and storage temperatures between -25 and 70 °C, without a physical control panel.
Specifications
Design
- Product colour: Grey
- LED indicators: Yes
Performance
- Control display unit: No
Network
- Ethernet LAN data rates: 10, 100, 1000, 10000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k,
- Wi-Fi: Yes
Security
- Security algorithms: AES, DES, EAP, HTTPS, IPSec, SSL/TLS, WEP, WPA2
- VLAN support: Yes
Ports & interfaces
- Console port: RJ-45
- Ethernet LAN (RJ-45) ports: 8
Management features
- Web-based management: Yes
- Quality of Service (QoS) support: Yes
- Syslog: Yes
Weight & dimensions
- Width: 215.9 mm
- Depth: 230.1 mm
- Height: 40.2 mm
- Weight: 1.79 kg
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
Certificates
- Safety: UL/CSA 60950-1, IEC/EN 60950-1, AS/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1
- Certification: FCC 47CFR15, AS/NZS CISPR 22, CISPR 22, EN55022/EN55032 (EMI-1), ICES-003, VCCI, KN 32 (EMI-2), CNS-13438, EN61000-3-2, EN61000-
Logistics data
- Harmonized System (HS) code: 85176990
